5200 SERIES CONVEYORS: Flat Belt End Drive

Specifications:

QWIK slots make mounting air and electrical lines simple with no drilling, special tools, or t-nuts required
Completely contained belt eliminates catenary sag and reduces pinch points
Designed-in low voltage wireway provides support and protection for low voltage wires running from the electronic device to the main junction or control box
No holes in side rails makes reconfiguration quick and easy
Open top frame simplifies belt maintenance and replacement
Sprocket alignment key provides continuous sprocket alignment for quick
belt assembly

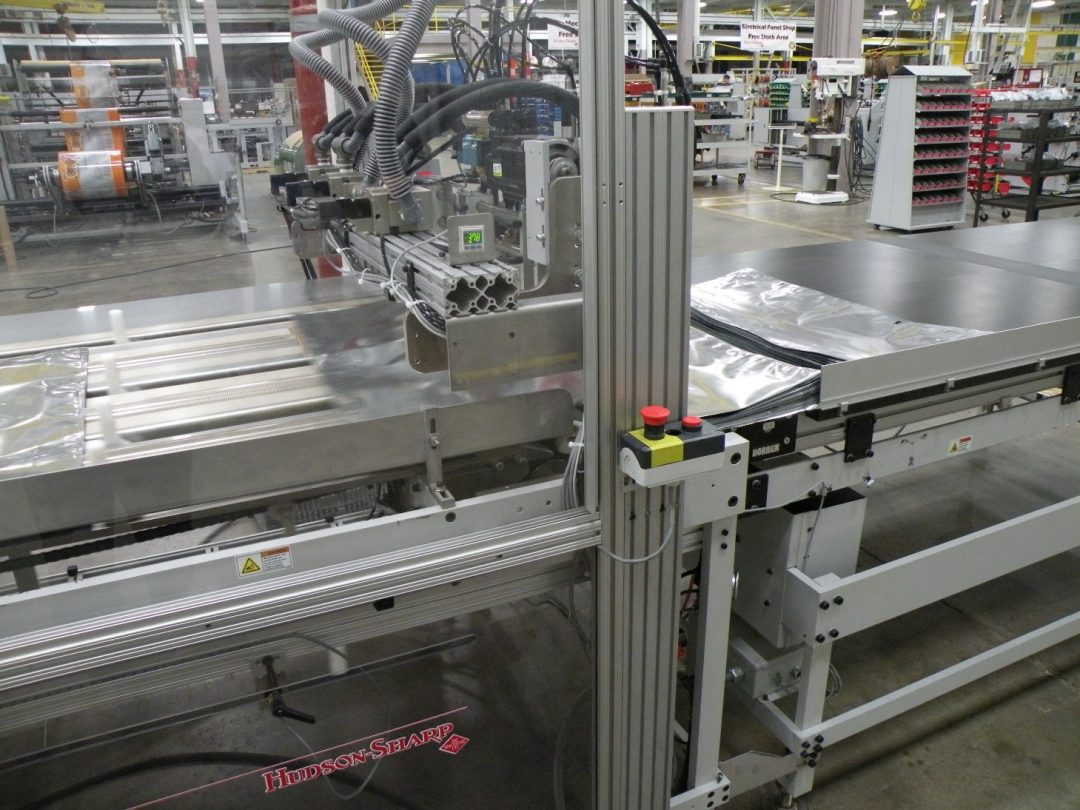

Support stands mount directly to bottom of side rail which keeps frame open for mounting accessories
Nose bar tail option

Optional Interface Tail Section


Flush Top, Low Side Frame	UHMW Belt Tracking Guides	Support Stands Mount Directly to Bottom of Frame

End Drive Model

Notes:

Dimensions are represented in inches, feet, and (millimeters).
Due to the wide variety of drive set-ups and applications, point of installation guarding is the responsibility of the end user.
Conveyors longer than 12' (3658 mm) will be constructed using multiple piece frame. Consult factory for locations of these frame joints. It is recommended that each frame joint be supported by a stand or other means.
