7350 SERIES CONVEYORS: Accessories

Printer-Friendly Documents

Hardware Accessories

Roller Transfer Plate
		4” wide to 52” wide Includes 0.43” diameter rollers mounted in transfer plate Adjustable mounting to fine tune small parts transfer All brackets and fasteners are stainless steel

Overhead Guide
		For part hold down or cover closing Adjustable height and position across width Round nose UHMW guide with stainless steel backing Lengths: 3’ to 10’ in 1” increments Horizontal Brackets provided for every 2’ of length Available in standard adjustable and tool-less adjustable mount styles All brackets and fasteners are stainless steel Does not include vertical mounting post. To be used with profiles 13 thru 18 or upper guide assembly.

Upper Guide
		Used for guiding lids and/or tall parts Round nose UHMW guide with stainless steel backing Equipped with or without tall adjustable height bracket Length: 3’ to 10’ in 1’ increments (2) width adjusting options (standard 5” post, 10” post) Brackets provided for every 2’ of length Available in standard adjustable and tool-less adjustable mount styles All brackets and fasteners are stainless steel

Accessory Mounting Bar
		Used for mounting adjustable devices such as photoeyes and sensors Can be mounted directly to frame or in combination with guide brackets 2 Versions: • 3’ bar used to mount to 24” hole pattern in frames • 1’ L shape used to mount at tail ends Compatible with Value Guide blocks (VG-021-02) All brackets and fasteners are stainless steel

Photo Eye and Reflector Mounting Brackets
		Mounts standard 18 mm diameter photoeyes or sensors Adjustable height and angle (3) Photo Eye types: • Thru beam includes (2) mounts • Reflector includes (1) Photo eye mount and (1) reflector mount (reflector included) • Convergent includes (1) photoeye mount (3) Mount versions: • To fixed post (does not include mounting post) • To fixed post (includes mounting post) • To accessory mounting bar (includes Value Guide Block and adjustable post) All brackets and fasteners are stainless steel

Electrical / Air Routing Clip
		Light weight mounting clip for wire clips, conduit clicks, wire tie mounts, etc. Mounts directly to M8 guide bolts and/or lower frame lip May be mounted to inside of frame or outside of frame Offset to clear mounting screws Package of 10 pieces All brackets and fasteners are stainless steel
		Part Number	Description
		735RC-10	Electrical / Air Routing Clip (package of 10 pieces)

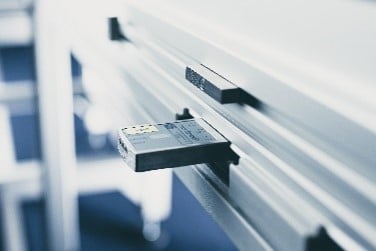

M8 Accessory Mounting Bolt
		Stainless steel mounting hardware M8-1.25 Male mounting stud Used with Dorner key-slot system Eliminates the need to access the inside of the frame Package of 10 pieces
		Part Number	Description
		735M8-10	M8 Accessory Mounting Bolt (package of 10 pieces)
