AquaPruf Conveyors

  • Optional frame cut-outs and belt lifters provide easy access to inside of conveyor
  • Improved chain strength on curve conveyors provides capability for 3 curves on one gearmotor
  • AquaPruf offers a variety of belting and guiding options
  • Positive Drive conveyors are sprocket driven to avoid slipping in wet environments
  • Stainless steel frame construction with continuous TIG welding eliminates fasteners in the food zone
  • Nose bar transfer options provide safe transfer of small products

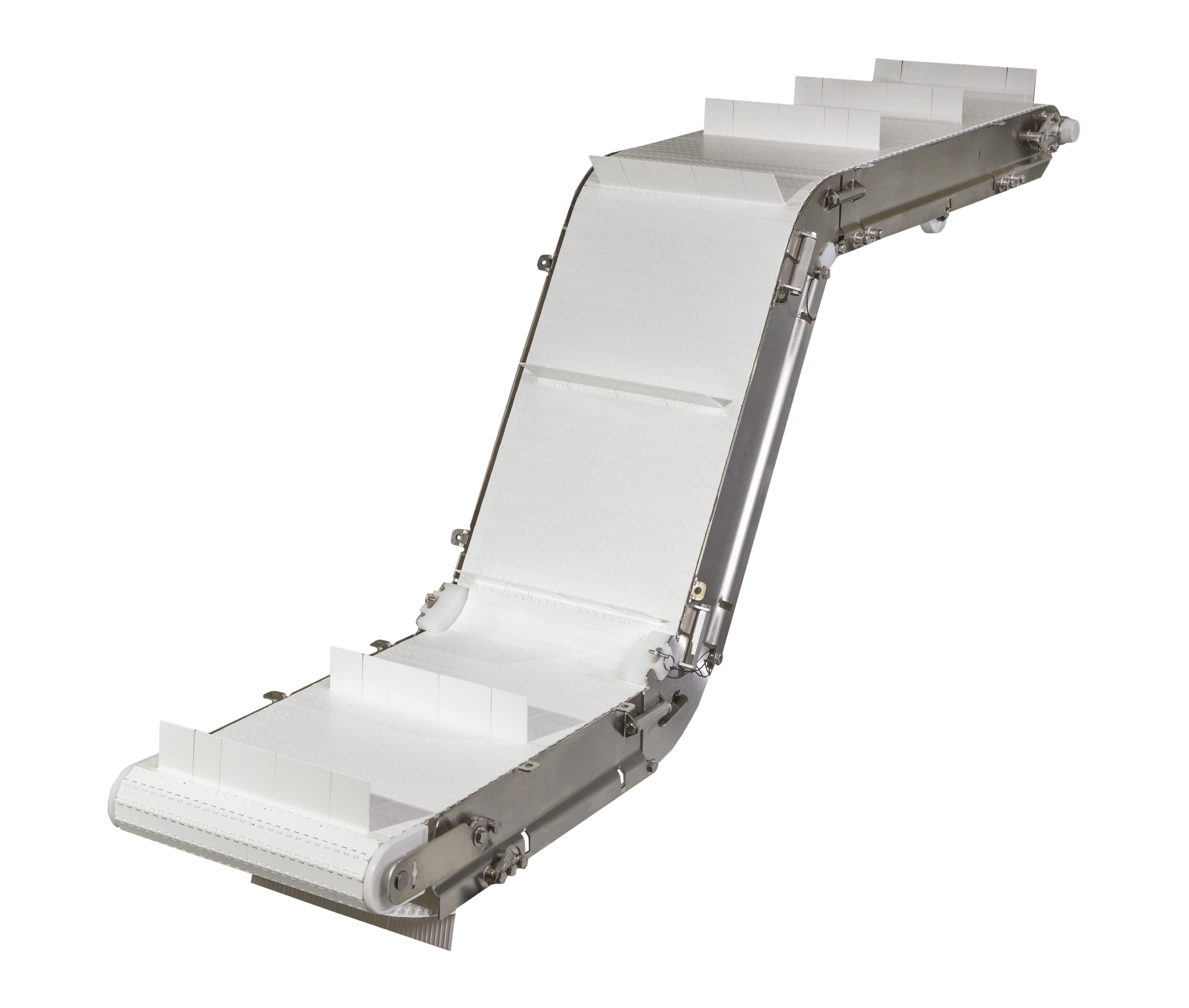

  • Z-frames are available in multiple configurations in both modular and belted conveyors

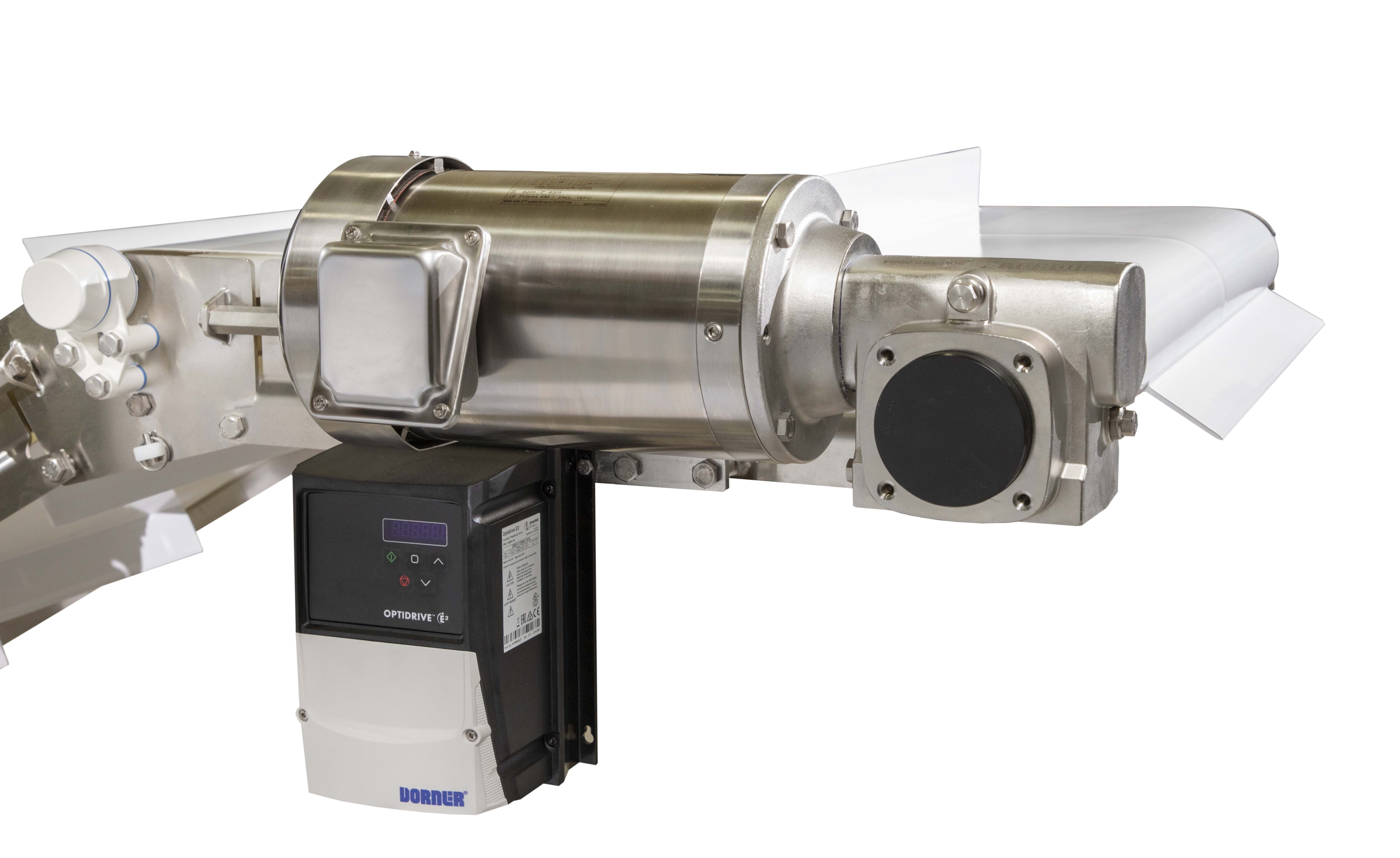

  • Stainless steel gearmotors are located outside of food zones

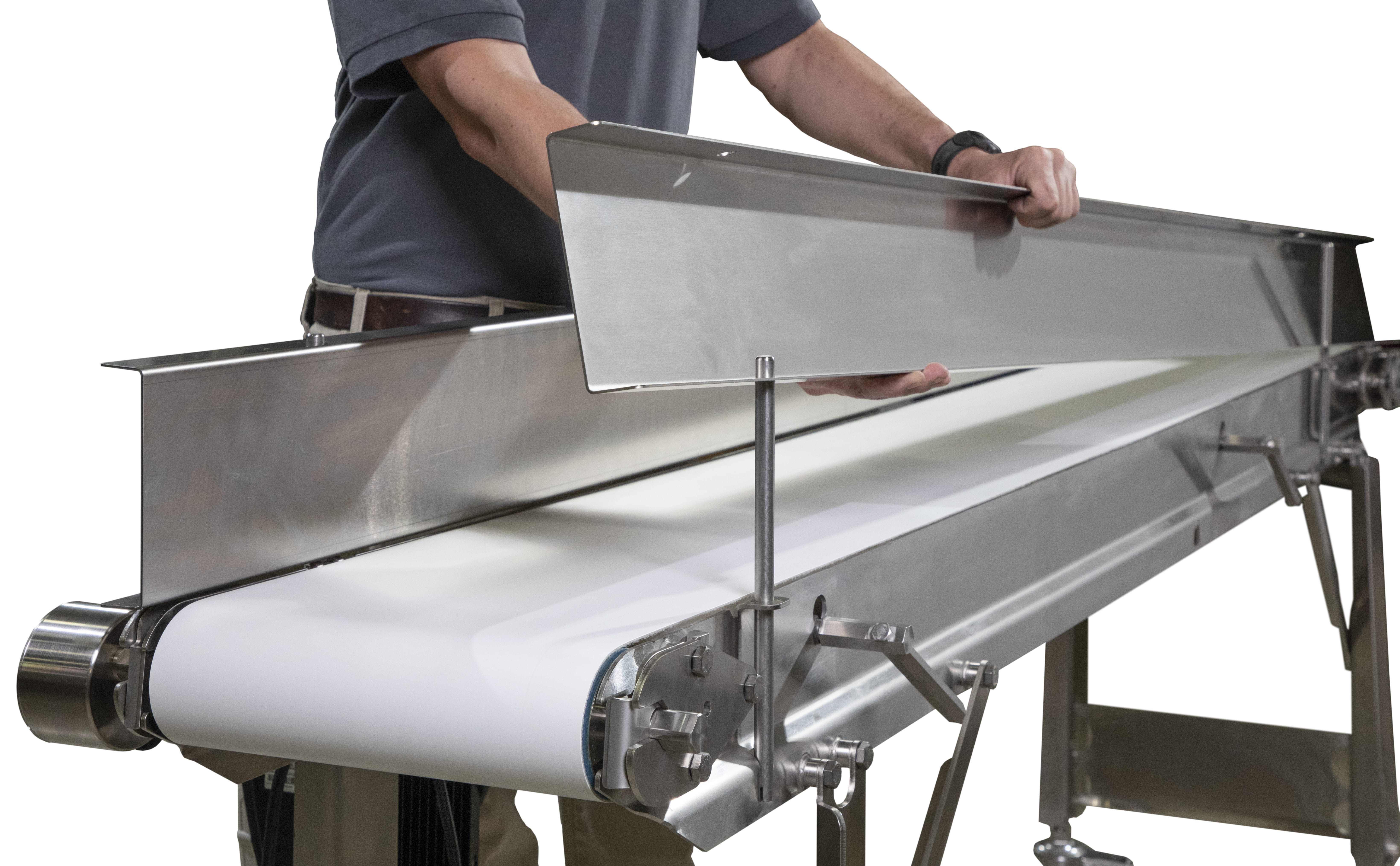

  • All stainless steel and UHMW guiding profiles are quick removal without tools for effective cleaning
Contact Us
Conveyor specialists are ready to help you find the right solution


Benefits of AquaPruf Conveyor:

  • Tool-less disassembly. Cleaning prep in under a minute, complete disassembly in less than 3 minutes
  • Optional frame cut-outs and belt lifters for continuous access to inside of the conveyor

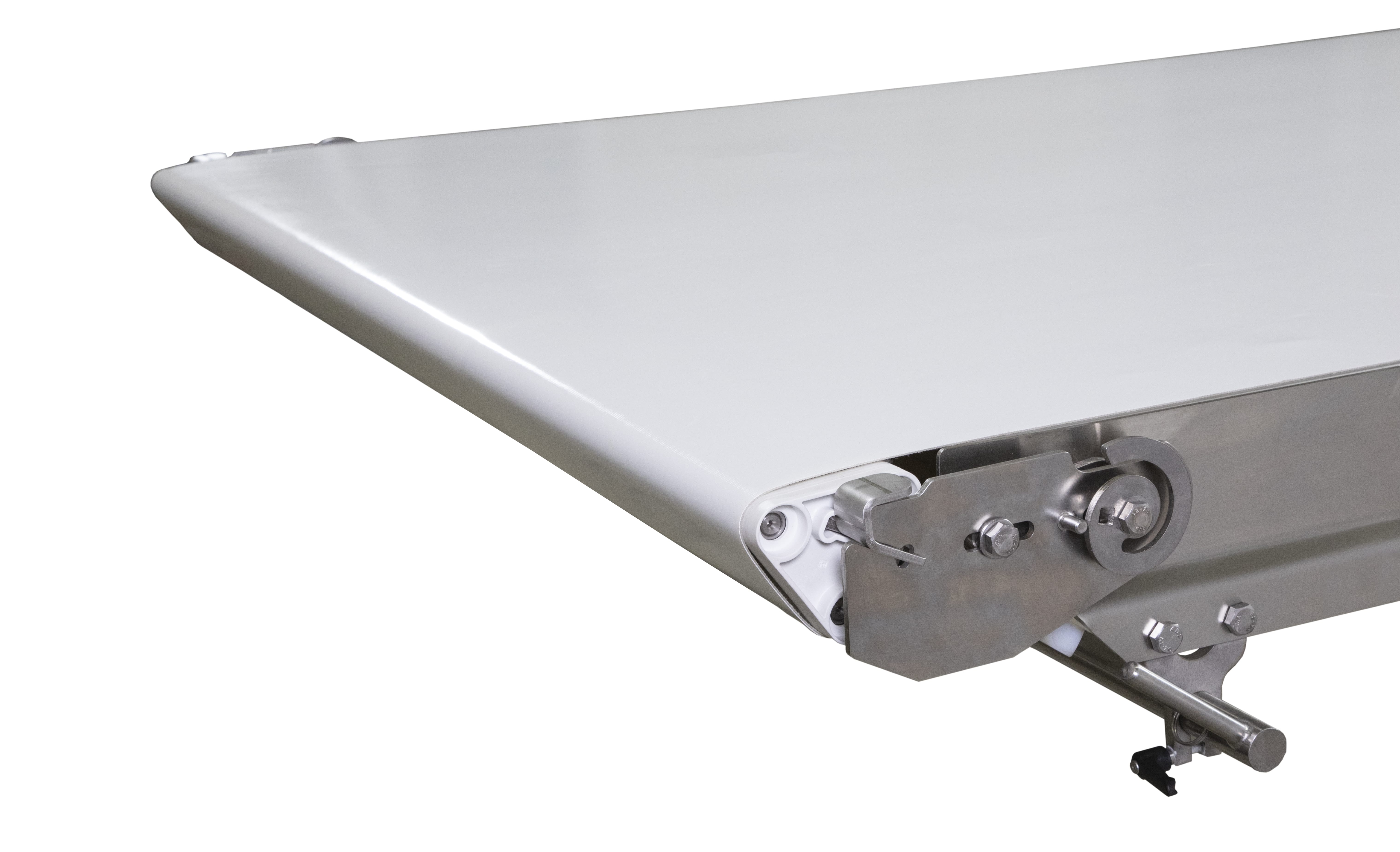

  • Tip-up tails allow for quick release of belt tension
  • Continuous TIG-welded 304 stainless steel frame
  • Spiral cam belt tensioning with patent pending thread-less design
  • Patented sprocket alignment key
  • Gearless, oil-free iDrive2 sanitary motorized roller


  • Loads: up to 98 kg per square meter (20 lbs per square foot)
  • Speeds: up to 100 mpm (328 fpm)
  • Widths: 152 mm (6 in) to 1,524 mm (48 in)
  • Lengths: 914 mm (36 in) to 25,375 (999 in)
  • Available in straights, curves, and z-frame configurations
  • Modular belt options: flat modular belt, friction top, cleated, curve
  • Belt options: guided and positive drive belt options (flat belt, cleated, sidewall cleated)
  • Options include
    • Nose bar transfers
    • Belt lifters and frame cut-outs
    • Belt scrapers
    • Clean-in-place
Industry Ready
  • Designed and manufactured to food equipment standards
  • BISSC & USDA certified conveyors
  • FDA approved materials and components
Delivers Fast
  • Dorner sets the industry standard for rapid delivery
  • Sanitary conveyors ship in as little as 10 business days
  • Industry leading cleaning preparation time

Manuals & Literature

Looking for Service Manuals? Search for Service Manuals by part number or product type HERE.

Engineering Manuals Pages File Size
AquaPruf Engineering Manual 76 11.9 MB
Literature Pages File Size
AquaPruf Conveyors Brochure 4 3.69 MB
Sanitary Conveyors Line Card 6 5.97 MB

Fabric Belting

Standard Belting

See Options

Note: Wet applications are limited to specialty belt types 54, 55, 69 and 70 only.

Specialty Belting

See Options

Note: Wet applications are limited to specialty belt types 54, 55, 69 and 70 only.

Positive Drive Belting


  • Solid Urethane material
  • Drive lugs on 25 mm (1 in) spacing
  • Available in Blue or White
  • Excellent abrasion and tear resistance
