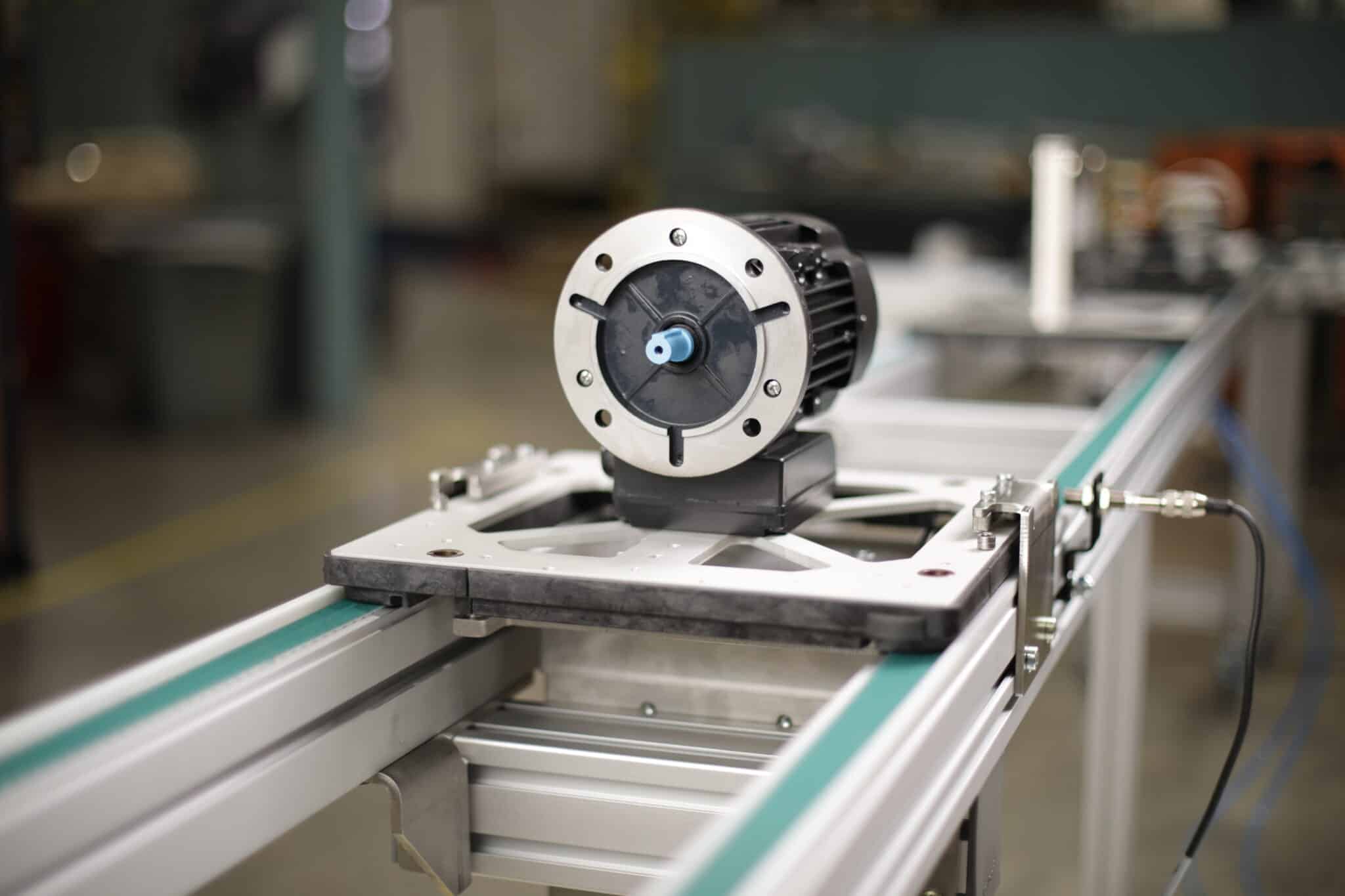

Système de palettes DualMove

Fixed Height Support Stand

Diagonal Bracing

• Standard 2-Leg version for base conveyor mounting
• 305 mm (12 in) minimum TOB height
• 1829 mm (72 in) maximum TOB height
• Aluminum construction with T-Slot mounting for bolt on
  accessories and structure
• Provide ± 50 mm (2 in) of adjustment

• For use on steel, aluminum and single-post support stands with casters
• Metric fastener mounting hardware included
• For use on all stands with casters and any stands over 1829 mm (72 in) tall
• One brace per stand for conveyors up to 610 mm (24 in) wide
• Two braces per stand for conveyors over 610 mm (24 in) wide

Conveyor Tie Bracket

Photo Sensor Bracket

• Tabletop brackets allow for mounting of conveyor to other equipment
• Order PN 351518 for kit including 2 brackets as shown

• Standard mounting for 18mm barrel/nose mount photo-eyes
• Reflective version includes reflector
• Through beam mount version
• Fully adjustable mount for industrial conveyors
• 51 and 127 mm (2 and 5 in) adjustment height ranges

Vertical Pallet Sensor Bracket

Horizontal Pallet Sensor Bracket

• Standard mounting for 12 mm barrel proximity sensors
• Sensor faces upward sensing pallet pick-up on bottom of pallet
• Requires a minimum of 1 in long threaded portion on sensor
• Includes all mounting hardware
• Proximity sensor with 4 mm sensory range recommended

• Standard mounting for 12 mm barrel proximity sensors
• Sensor faces inward sensing pallet pick-up on outside of pallet
• Requires a minimum of 1 in long threaded portion on sensor
• Includes all mounting hardware
• Not for use on pallet sides with bumpers
• Proximity sensor with 4 mm sensory range recommended

Close Transfer Rollers

Powered Close Transfer Rollers

• Covering gaps between conveyors starting with 10 mm – 500 mm in 5 mm increments
• Maximum spacing between parallel conveyor using transfer rollers in lieu of a transverse conveyor
  • 60 – 45 mm
  • 240 – 85 mm
  • 320 – 125 mm
  • 480 – 205 mm
  • 640 – 285 mm

Side Table

• Provides a 152 mm (6 in) or 305 mm (12 in) wide working surface
• Adjusts in/out and up/down
• Can be positioned anywhere along the conveyor
• Anodized aluminum work surface
• Max load: 6 kg/m (5 lbs/ft), use Adjustable Tie Brackets for added capacity
• Available in 305 mm (1 ft) increments from 305 mm (1 ft) to 30,175 mm (99 ft)

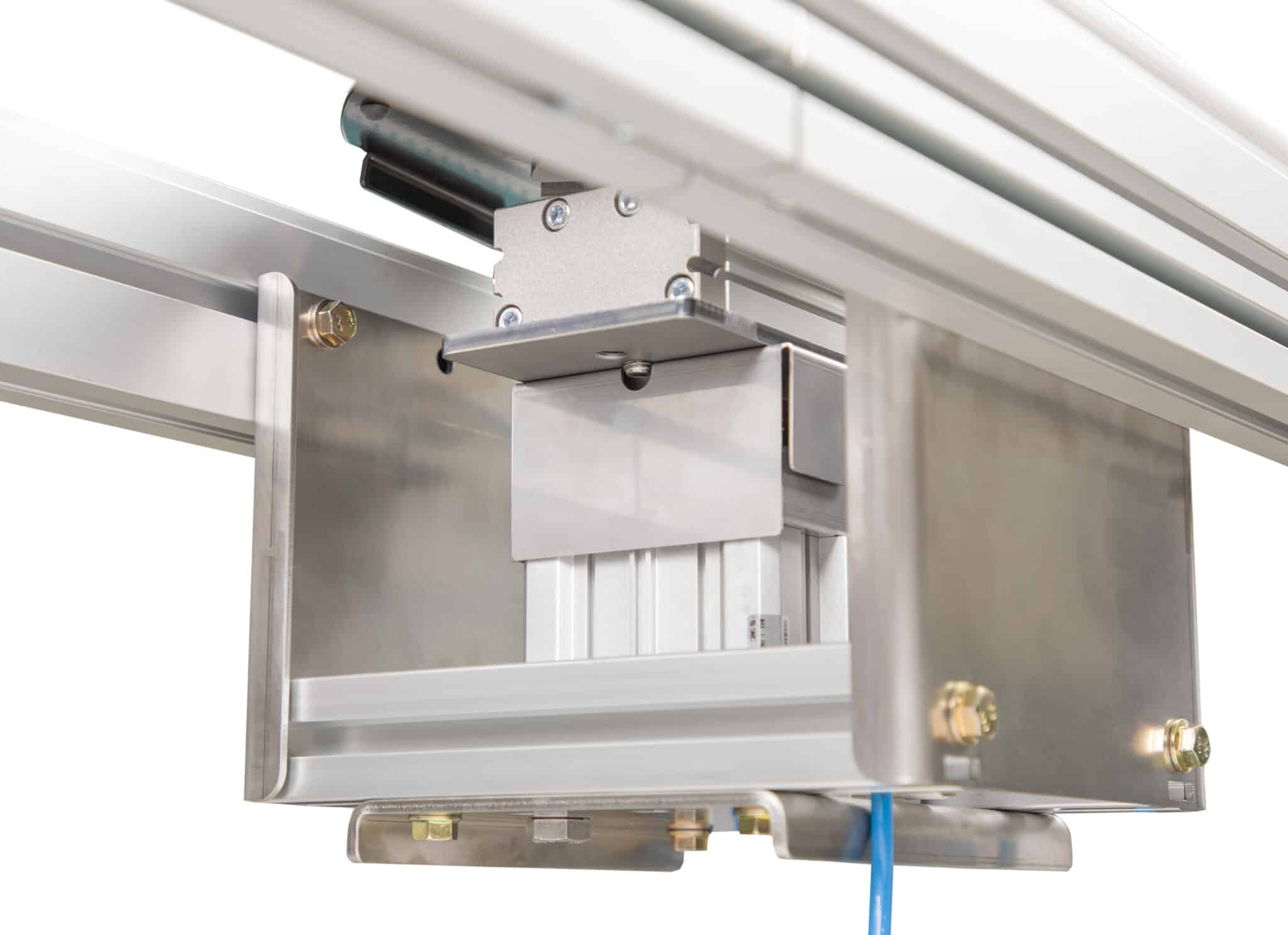

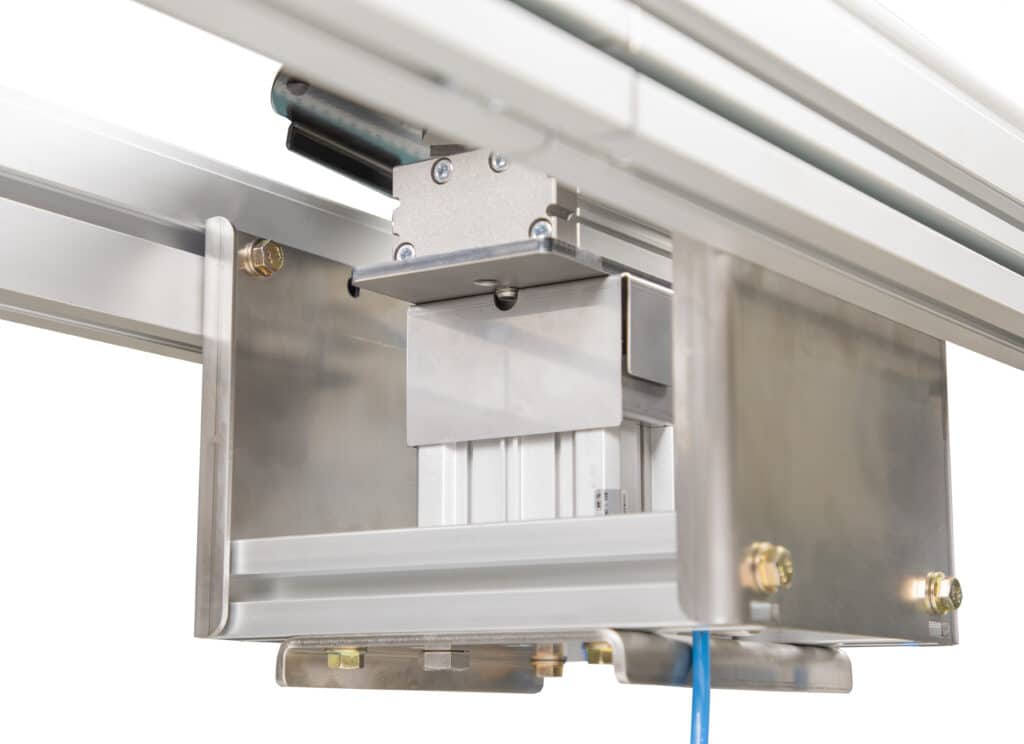

Lift & Locate

• Lifts from center of conveyor
• Load Capacity based on 60psi air supply
  • widths 160 – 240mm 39kg (85 lbs)
  • widths 320 – 480mm 91kg (200 lbs)
  • widths 640 – 800mm 159kg (350 lbs)
• Repeatability of ±0.13mm (±0.005 in)
• Lift height is adjustable, maximum height is 38 mm (1.49 in) from top  of belt to bottom of pallet

• Includes lift, pallet stop, mounting hardware and fittings for ¼ in  push in air  line
• Lift cylinder includes magnetic piston and 4 mm sensor track for C-Track
  proximity sensors. Sensors not included.
• Requires cushioned or non-cushioned pallet stop.
• Optional sensor mount for pallet. Sensor mounts are for standard 12 mm diameter proximity switch.
• Optional guarding package

Low Profile Lift & Locate

• Lifts from center of conveyor
• Load Capacity based on 60 psi air supply
  • widths 160 – 240 mm 39kg (85 lbs)
  • widths 320 – 800 mm 91kg (200 lbs)
• Repeatability of ±0.38mm (±0.015 in)
• Lift height maximum height is 38 mm (1.49 in) from top of belt to bottom of pallet
• Includes lift, pallet stop, mounting hardware and fittings for ¼ in push in air line
• Lift cylinder includes magnetic piston and 4 mm sensor track for C-Track proximity sensors. Sensors not included.
• Requires cushioned or non-cushioned pallet stop.
• Optional sensor mount for pallet. Sensor mounts are for standard 12 mm diameter proximity switch.
• Optional guarding package

Lift & Transfer

• 2 position Lift and Transfer
  • Up position transfers pallet on/off the transverse conveyor
  • Down position allows pallet to pass transfer unit and/or stops prior to transferring.
• Changes product orientation at 90° corner
• capacity matches pallet’s max load, up to 45 kg (100 lbs).
• Allows transfer to two directions if required
• Pallet transfers over conveyor high side. 8 mm (0.31 in (change)
  • No guide cutting required

• Includes (1) 24VDC Brushless
  • 3.0 Amps starting current, 2.5 Amps rated torque
  • Available transfer speeds: 10, 15, 20, 25, 37m/min
  • Requires 24VDC power and single 24V PNP input to run
• Conveyor tie brackets see page 44 for details
• Multiple configurations available; sending/receiving and end-stop/pass-thru.
• Options:
  • Pallet sensor bracket.
  • Optional guarding package
  • Cushioned or non-cushioned pallet stops

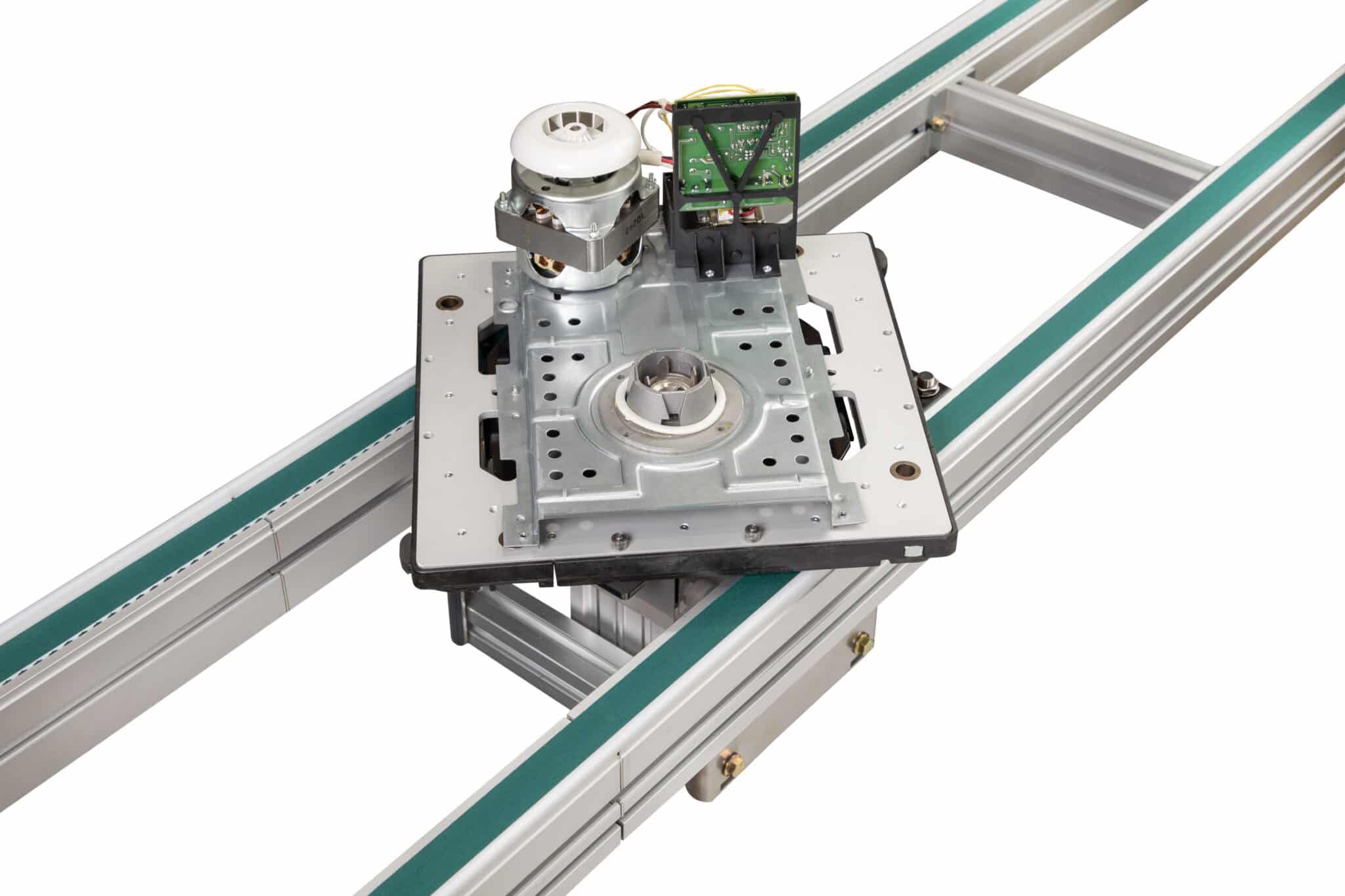

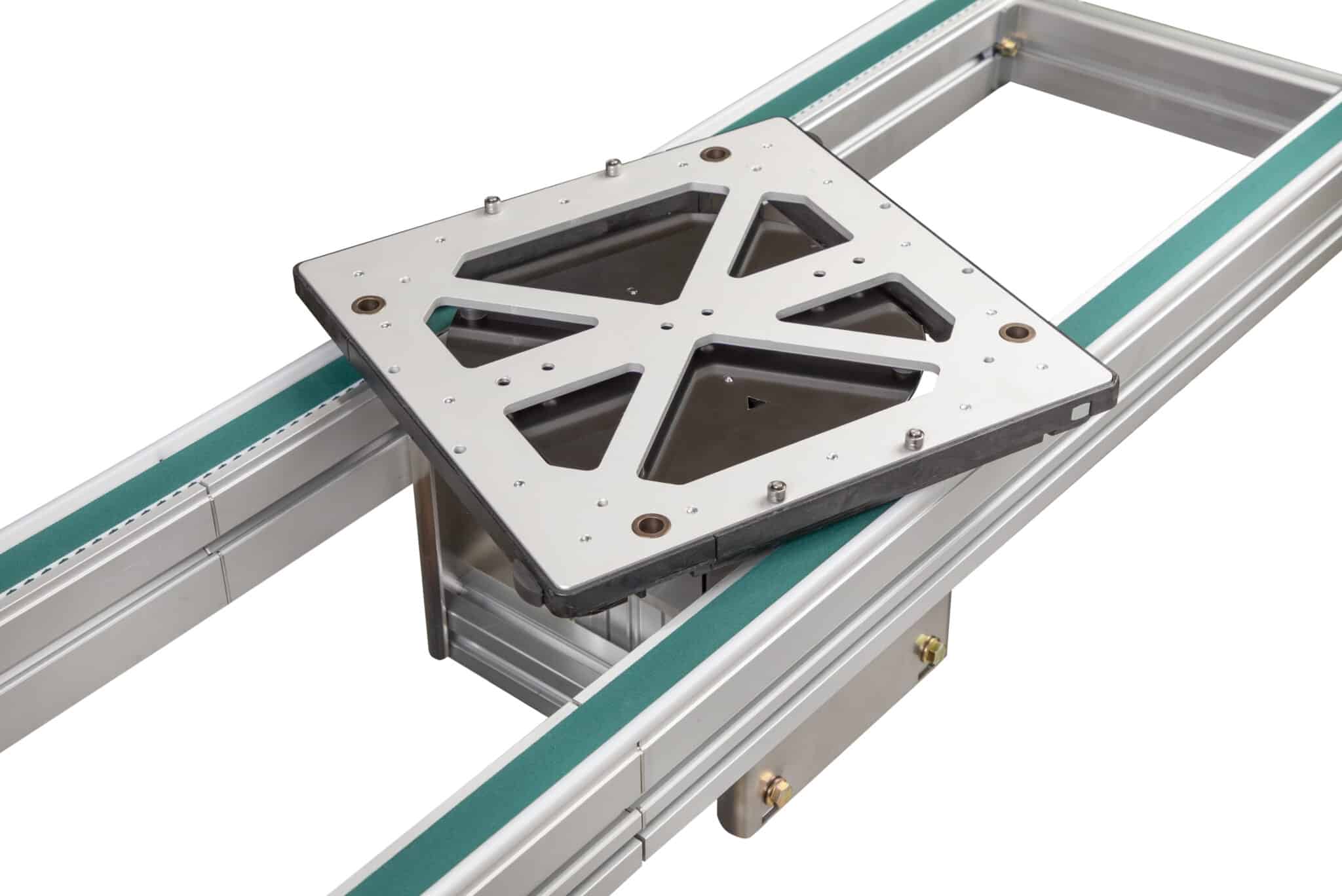

Lift & Rotate

• Pneumatic lift from center of conveyor
• Pneumatic rotation with adjustable positioning
• Includes break-away magnetic coupled rotation plate for product safety
• Rotation angle: 90° and 180°
• Includes cushioned turn strokes
• Load capacity matches maximum pallet loads
• Includes mechanism, mounting hardware and fittings for ¼ in push in air line
• Lift and Rotate cylinders include magnetic pistons and 4 mm sensor track for C-track proximity sensors. Sensors not included.
• Optional cushioned or non-cushioned pallet stop.
• Optional sensor mount for pallet. Sensor mounts are for standard 12 mm diameter proximity switch.
• Optional guarding package

90° Corner

180° Corner

• Requires pin tracking capability in pallet
• 25 mm (1 in) of pallet space at side of pins required
• Up to 32 kg (70 lbs) load capacity
• Maintains product orientation around the corner
• Product accumulation in the corner is not recommended
• Inside guide is fixed mounted to transfer pallet around corner
• 24VDC mini-conveyors drive the pallet around the corner
• Mini-conveyor includes 24V Brushless DC drive motors with controls
  • 60 W output, Rated 4 Amps (0.3 Amps under no load)
  • Speed: 25-126 ft/min
  • Includes switch box (FWD/OFF/REV) switch, speed potentiometer, and wire output to remotely control ON/OFF function via 24VDC signal.

• Requires pin tracking capability in pallet
• 25 mm (1 in) of pallet space at side of pins required
• Up to 32 kg (70 lbs) load capacity
• Maintains product orientation around the corner
• Product accumulation in the corner is not  recommended
• Inside guide is fixed mounted to transfer pallet around corner
• Two 24VDC mini-conveyors drive the pallet around the corner
• Mini-conveyors include two 24V Brushless DC drive motors with controls
  • Each motor: 60 W output, rated 4 Amps (0.3 Amps under no load)
  • Speed: 25 – 126 ft/min
  • Includes two switch boxes, each including (FWD/OFF/REV) switch, speed potentiometer, and wire output to remotely control ON/OFF function via 24VDC signal.
• Includes support stand and hardware

Heavy Load 90° & 180° Corner

90° Corner & Merge

• Requires pin tracking capability in pallet
• 25 mm (1 in) of pallet space at side of pins required
• 68 kg (150 lbs) load capacity
• Maintains product orientation around the corner
• Product accumulation in the corner is allowed 34 kg (75 lbs) maximum
• Inside guide is fixed mounted to transfer pallet around corner
• Includes all brackets and hardware to mount corner conveyor to the main lines. Includes support stands.
• Belt Speed is matched to main lines
• Separate gearmotor and drive is required for the corner conveyor

• Requires pin tracking capability in pallet
• 25 mm (1 in) of pallet space at side of pins required
• 32 kg (70 lbs) load capacity
• Maintains product orientation
• Inside guide is raised with pneumatic cylinders to clear flow through
• Straight guide with pneumatic cylinder is mounted across perpendicular conveyor to guide pallets straight through the merge area
• Includes sensor mount track on guide cylinder for C-track 4 mm proximity sensors
• 160 mm wide units have no added mini-conveyor
• 240 mm and 320 mm have a 24VDC mini-conveyor added to drive the pallet around the corner
• Mini-conveyor includes 24V Brushless DC drive motor with controls
  • 60 W output, rated 4 Amps (0.3 Amps under no load)
  • Belt speed: 25 – 126 ft/min
  • Includes switch boxes (FWD/OFF/REV) switch, speed potentiometer, and wire output to remotely control ON/OFF function via 24VDC signal.
• Requires pallet stops for traffic control.
• Requires support stand or conveyor tie bracket to connect conveyors.

Non-Cushioned Stop

Cushioned Stop

• Maximum Load: 68 kg (150 lbs) accumulated
• Pneumatically activated, spring return
• Not suitable for reversing application
• Mounts on the inside of the conveyor rail
• Airline can be mounted on the front or back of the stop
• Includes: stop, mounting hardware, and fittings for ¼ in push in air line
• Optional vertical or side-mounted sensor bracket.

• Maximum Load: 68 kg (150 lbs) accumulated
• Pneumatically activated, spring return
• Stops the pallet on the leading or training edge
• Not suitable for reversing application
• Mounts on the inside of the conveyor rail
• Airline can be mounted on the front or back of the stop
• Includes: stop, mounting hardware, and fittings for ¼ in push in air line
• Optional vertical or side-mounted sensor bracket.

Heavy Load Non-Cushioned Stop

Heavy Load Cushioned Stop

• Maximum Load: 250 kg (550 lbs) accumulated
• Recommended for pallets wider than 400 mm
• Pneumatically activated, spring return
• Mounts on the inside of the conveyor rail
• Airline can be mounted on the front or back of the stop
• Includes: stop, mounting hardware, and fittings for 6.3 mm ( ¼ in) push in air line
• Optional vertical or side-mounted sensor bracket.

• Maximum Load: 114 kg (250 lbs) accumulated
• Recommended for pallets wider than 400 mm
• Pneumatically activated, spring return
• Stops the pallet on the leading or trailing edge
• Mounts on the inside of the conveyor rail
• Airline can be mounted on the front or back of the stop
• Includes: stop, mounting hardware, and fittings for 6.3 mm ( ¼ in) push in air line
• Optional vertical or side-mounted sensor bracket.

Vertical Transfer Unit (Elevator)

Heavy Duty Lift and Locate

• Includes Precision Move conveyor to shuttle pallets in and out of the Vertical Transfer Unit
• Transfers standard and custom pallet sizes
• Up to 91 kg (200 lbs) lift capacity
• Minimum Height TOB: 305 mm (12 in)
• Maximum height TOB 3050 mm (120 in)
• Transfer one or more pallet(s) per cycle
• AC VFD rated gearmotor driven lift and shuttle
• Includes Lexan guarding
• Includes proximity sensor brackets for pallet and lift position detection
• Available as a complete package including automation controls

• Withstands up to 2,268 kg (5000 lbs) of downward force
• Available for standard pallet sizes
• Pneumatically operated anvil and locking mechanism
• Isolates pressing forces from the conveyor
• Requires floor mount support by others

Lift Gate

• Available for standard and custom pallet sizes
• Conveyor motor used as the counterweight for easier lifting
• Gas spring-controlled pivot mechanism
• Vertical stop position
• Aluminum support structure with T-slot construction and ± 50 mm (2 in) adjustability
• Must be bolted to the floor
