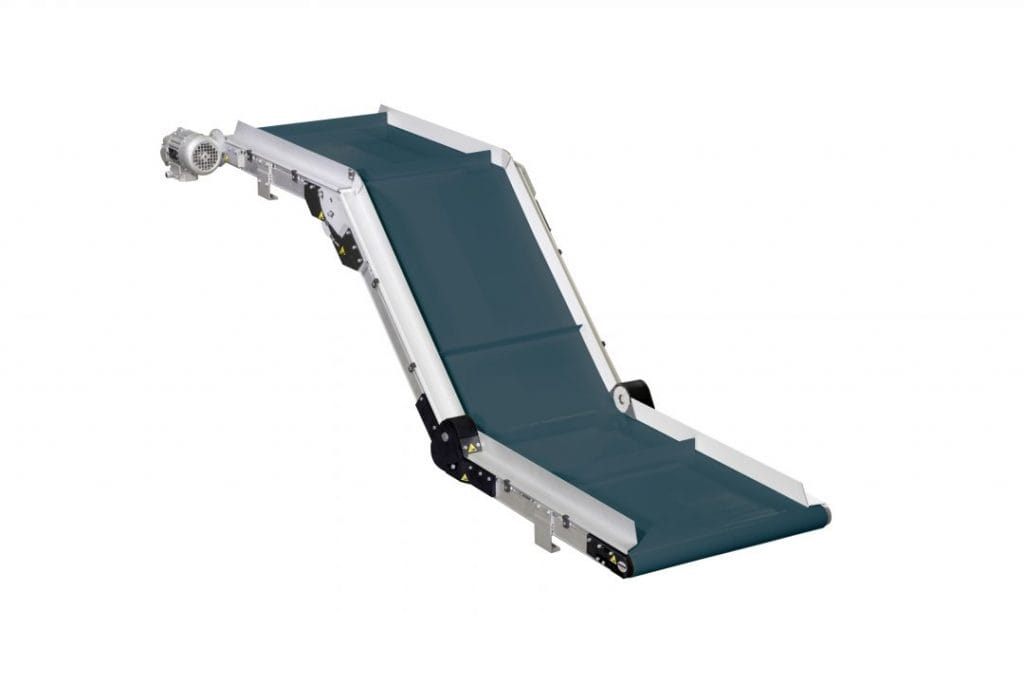

Low Profile Z-Frame (LPZ) Conveyor

  • 2200 LPZ- Dorner Europe
    Fixed and adjustable height and single post support stands available

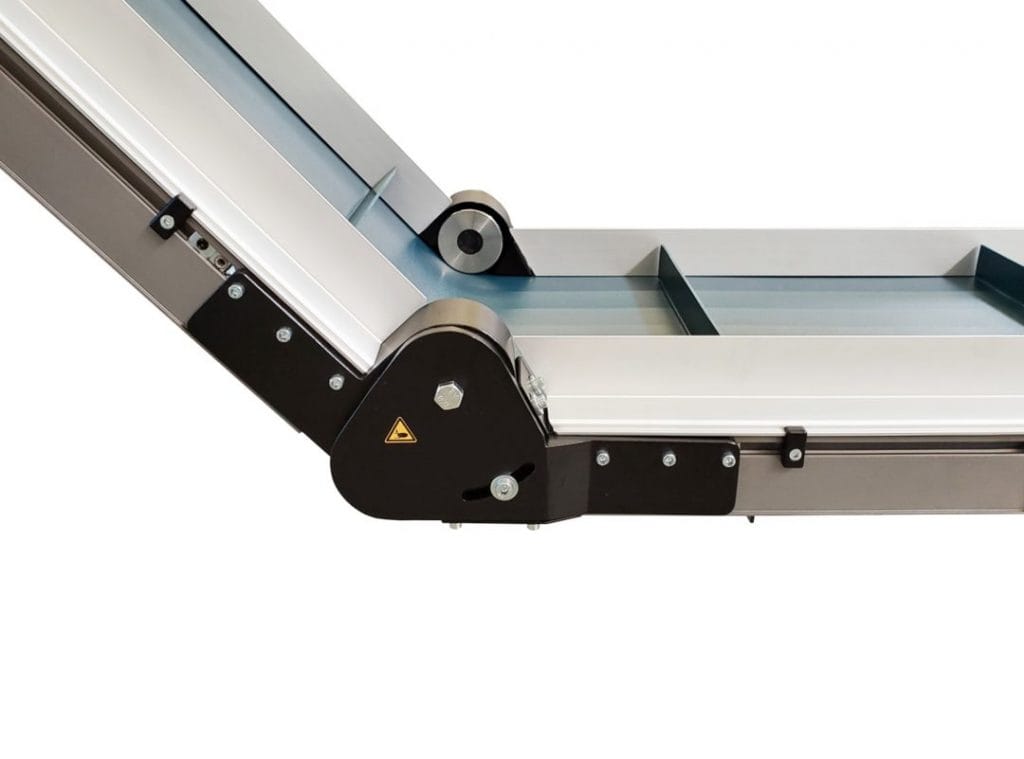

  • Dorner Europe adjustable angle
  • Dorner Europe Sidewall Cleated LPZ
  • Dorner Europe
  • Dorner Europe LPZ rack and pinion
Contact Us
Conveyor specialists are ready to help you find the right solution

Benefits of 2200 Low Profile Z-frame (LPZ) Conveyor:

Features & Benefits
      • Low Profile Z-Frame
      • Easily fits under machinery
      • Lower cost and sleeker than 3200 LPZ and other options on the market
      • Cleated and flat belt options available
      • Adjustable angle modules
      • Horizontal to incline, nose-over and Z-frame configurations
​Z-Frame Sidewall Cleated Belt End Drive Specifications
    • Loads up to 30 kg
    • Belt speeds up to 57 m/min
    • Belt widths: 305 mm to 610 mm
    • Conveyor lengths: 1097 mm to 4000 mm
    • Adjustable angle: 35˚to 60˚
    • Cleats available from 20, 30, and 35 mm high
    • Sidewall available form 20, 30, and 35 mm high
    • 60 mm diameter drive and idler pulleys turn approximately 189 mm of belt per revolution
    • V-groove bedplate with guided belt provides positive belt tracking, even under demanding side load applications
    • Configurations:
      • Horizontal to incline
      • Noseover
      • Z-Frame

    * Conveyor load capacity depends on conveyor size, incline, motor position, accumulated loads and other factors.

Z-Frame (LPZ) Cleated Belt End Drive Specifications
  • Loads up to 30 kg*
  • Belt speeds up to 57 m/min
  • Belt widths: 203 mm to 610 mm
  • Conveyor lengths: 1097 mm to 4000 mm
  • Adjustable angle 30˚to 60˚
  • Cleats available from 20, 30, 35, 40, and 50 mm high
  • 60 mm diameter drive and idler pulleys turn approximately 189 mm of belt per revolution
  • V-groove bedplate with guided belt provides positive belt tracking, even under demanding side load applications
  • Configurations
    • Horizontal to incline
    • Noseover
    • Z-frame
