2200 Precision Move Pallet System

  • Dorner 2200 Precision Move Pallet Systems

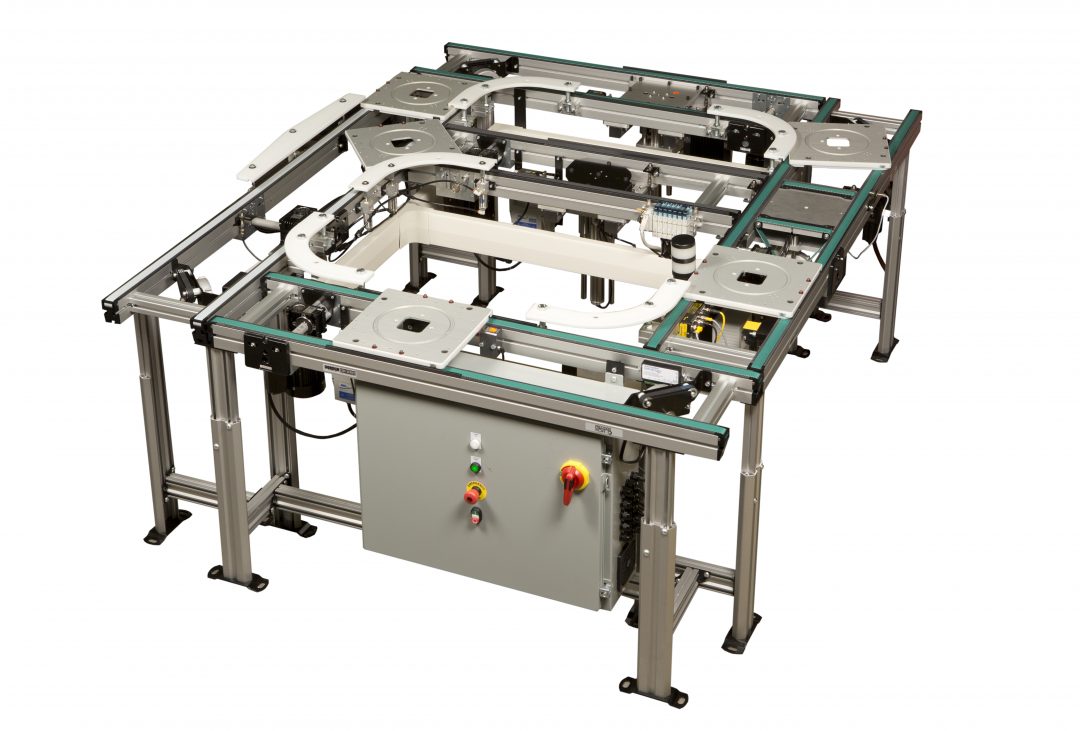

    Innovative, Modular, Dual Belt Conveyor Pallet Systems for Assembly Automation
  •

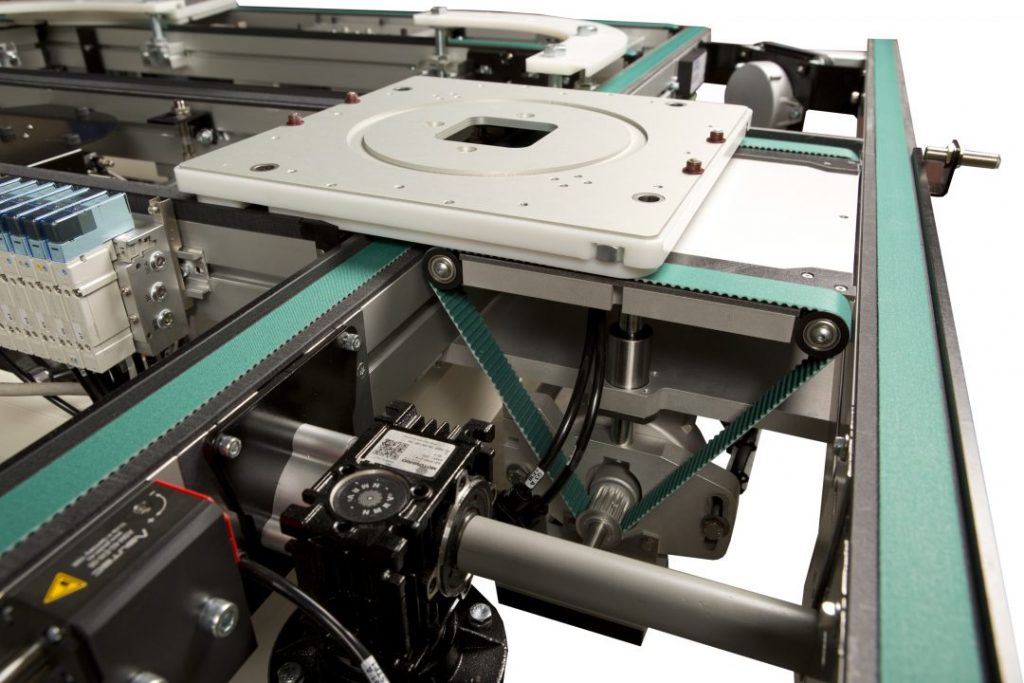

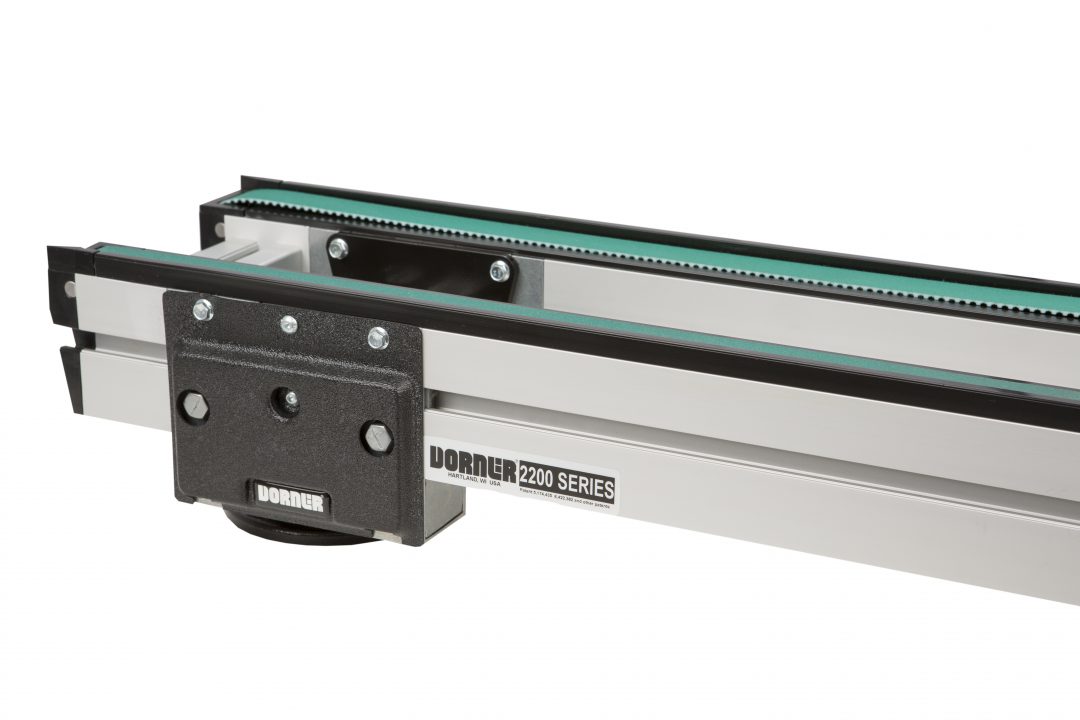

  • Dorner 2200 Precision Move Pallet System Conveyor
    Dual belt conveyors with common drive module on aluminum extruded frame with universal T-slot.
  • Dorner 2200 Precision Move Pallet System
    Best for product routing and control, product inspection and assembly automation.

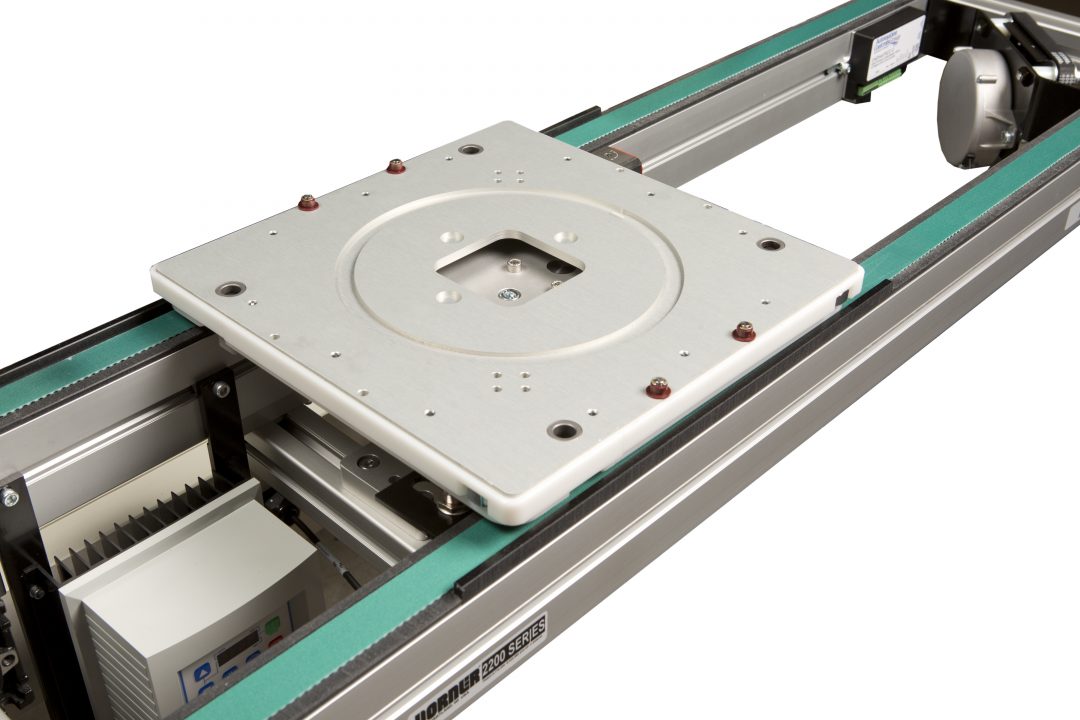

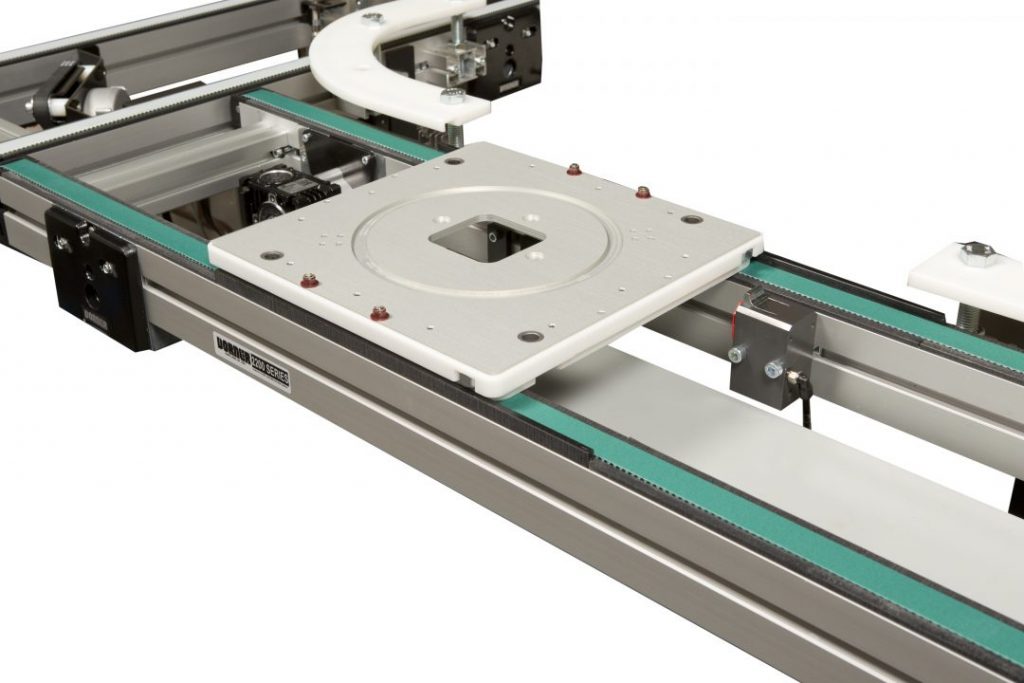

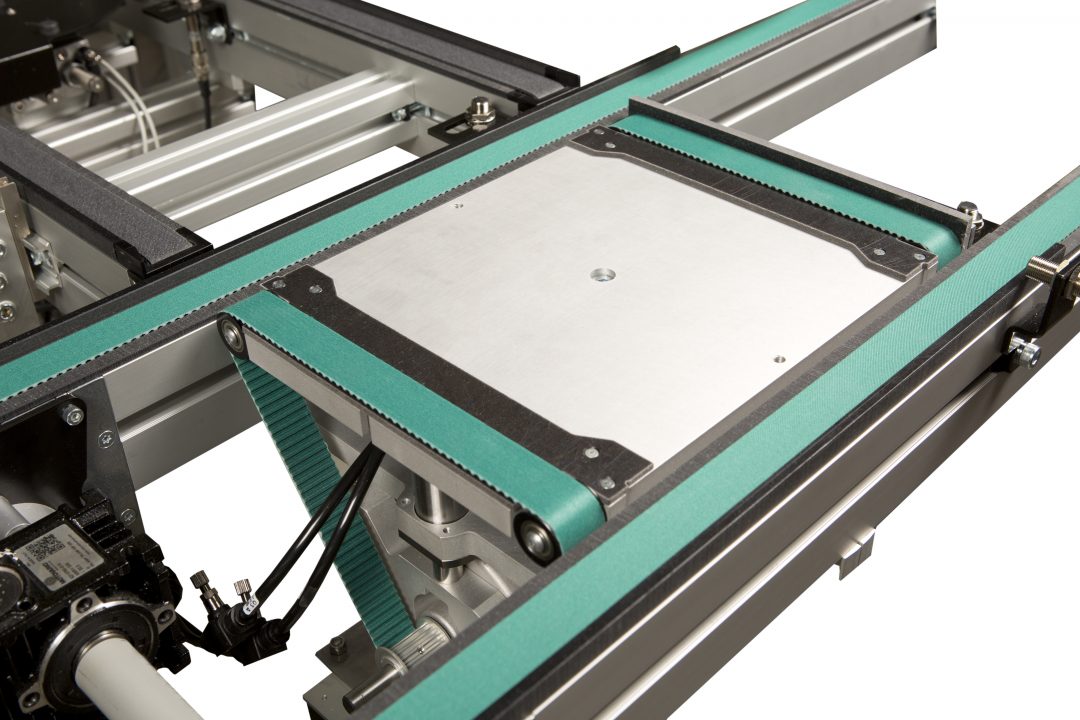

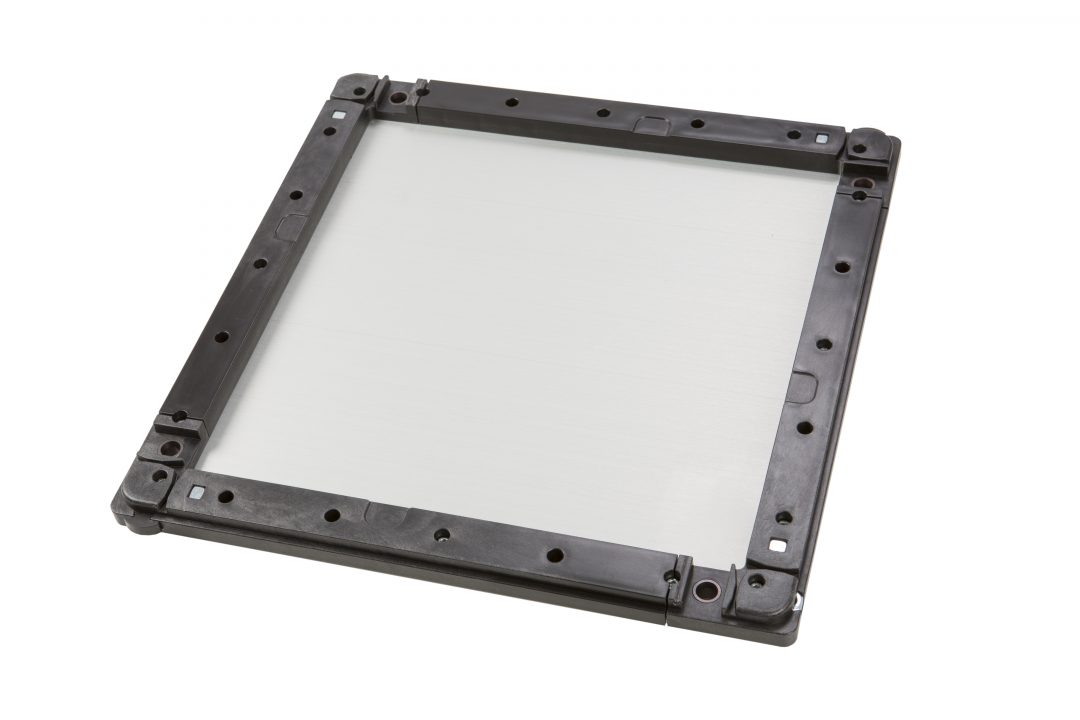

  • Dorner 2200 Precision Move Pallet System Pallet
    Pallets are sold as kits or completed assemblies. Static conductive pallet skirt pictured.

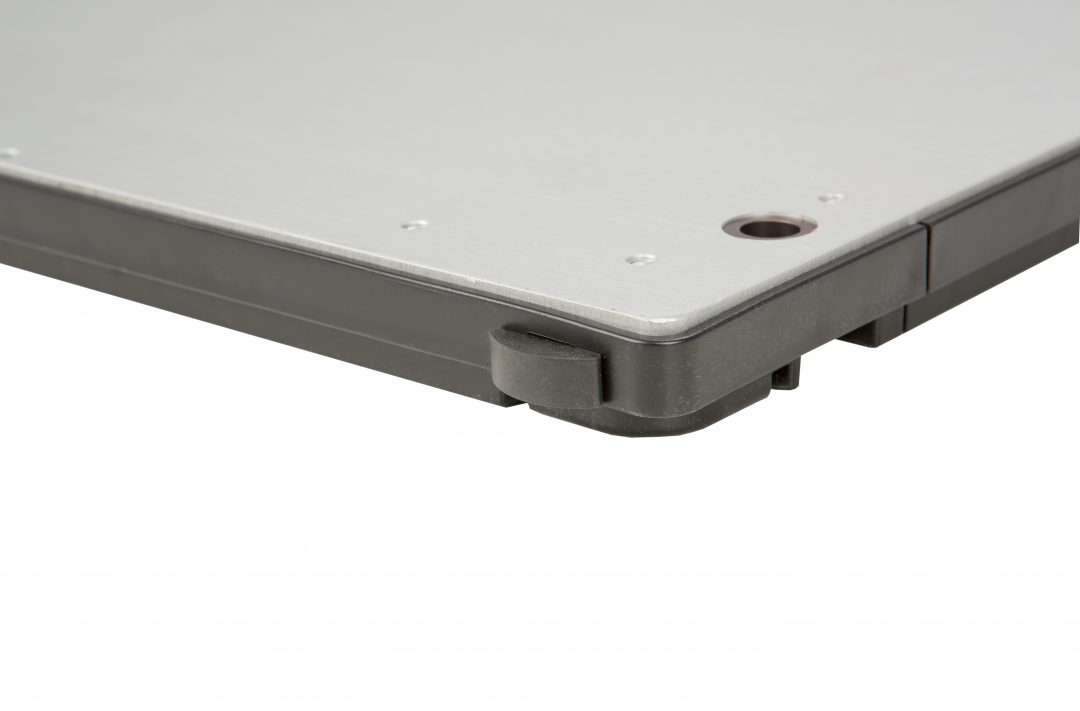

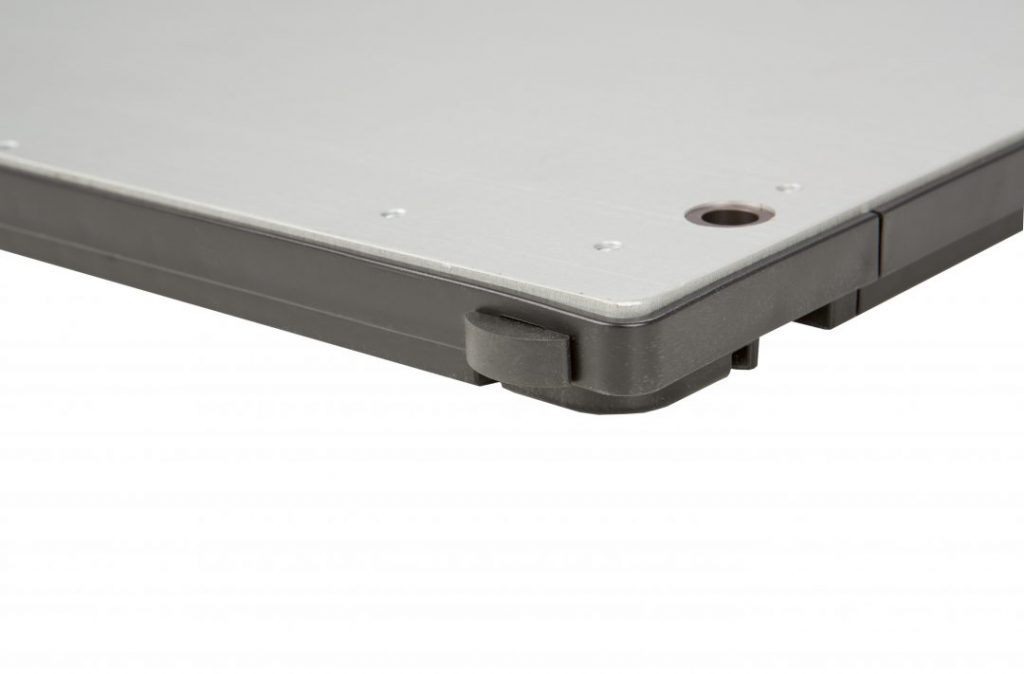

  • Dorner 2200 Precision Move Pallet System Pallet Bumper
    Optional pallet bumper available.

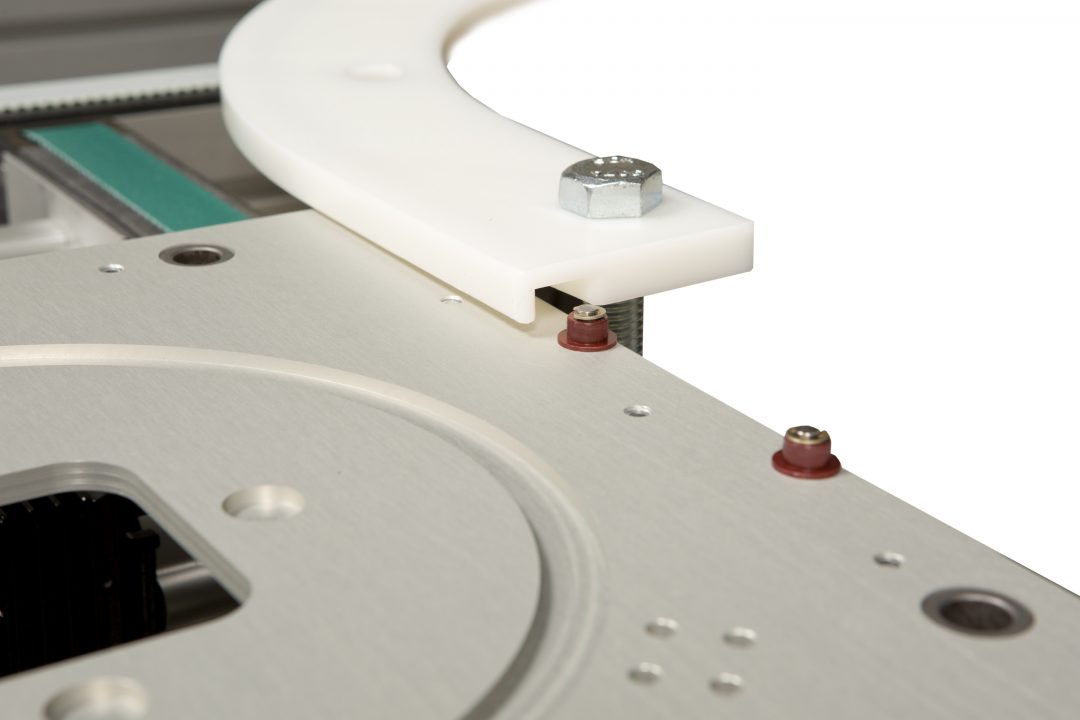

  • Dorner 2200 Precision Move Pallet System Pin Tracking
    Simple and cost effective method of tracking pallets through turns with pin tracking system.

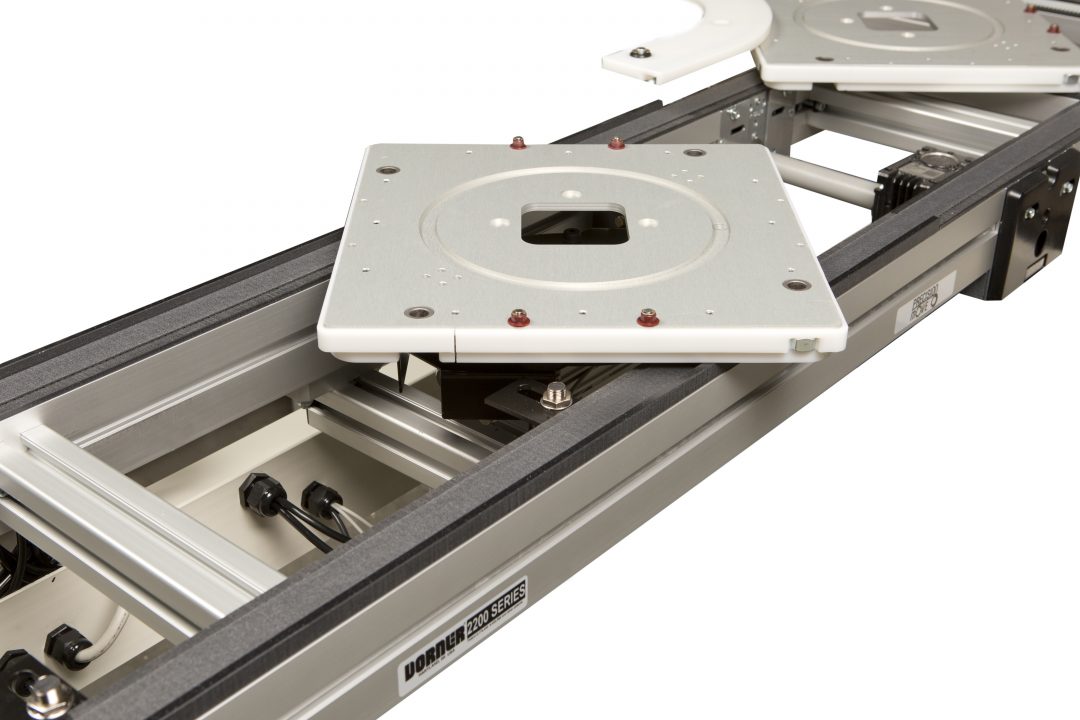

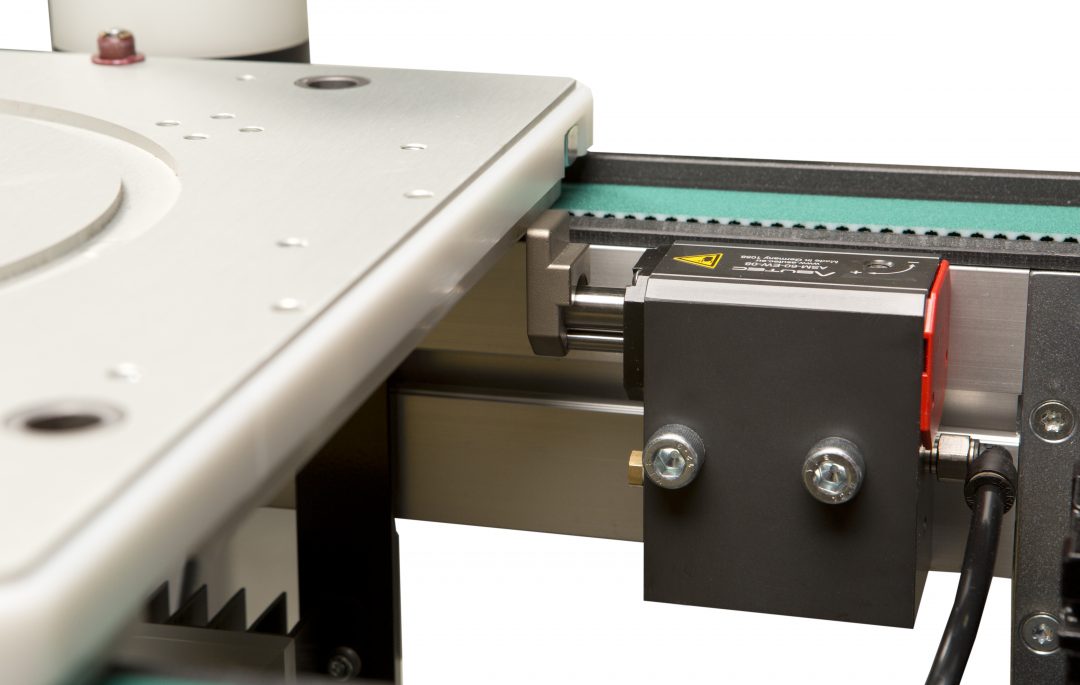

  • Dorner 2200 Precision Move Pallet System
    Cushioned Pallet Stop

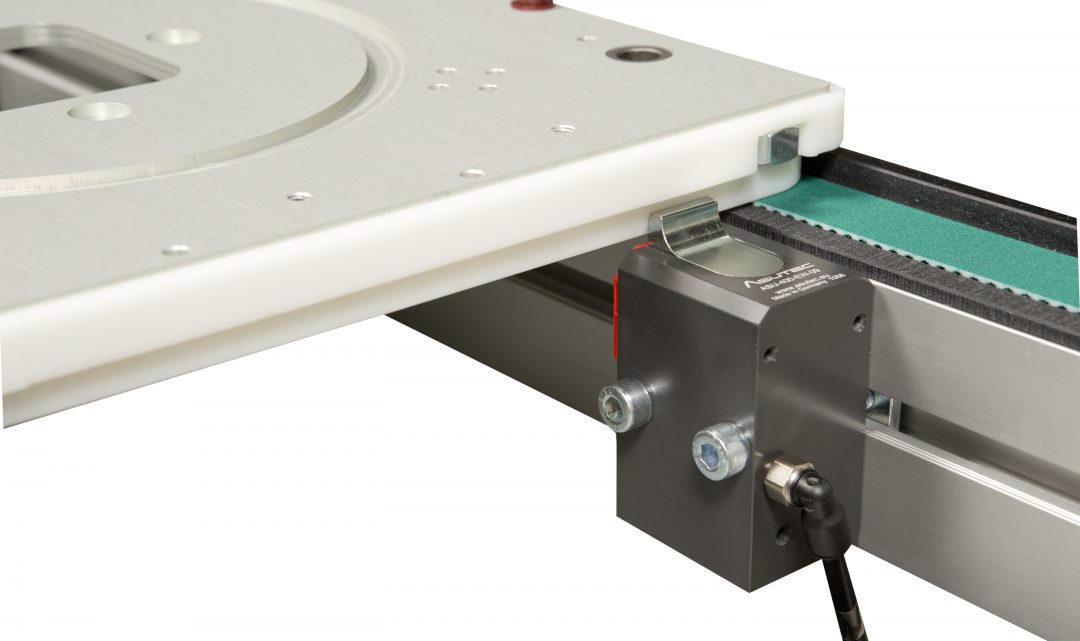

  • Dorner 2200 Precision Move Pallet System Stop
    Non-cushioned pallet stop.

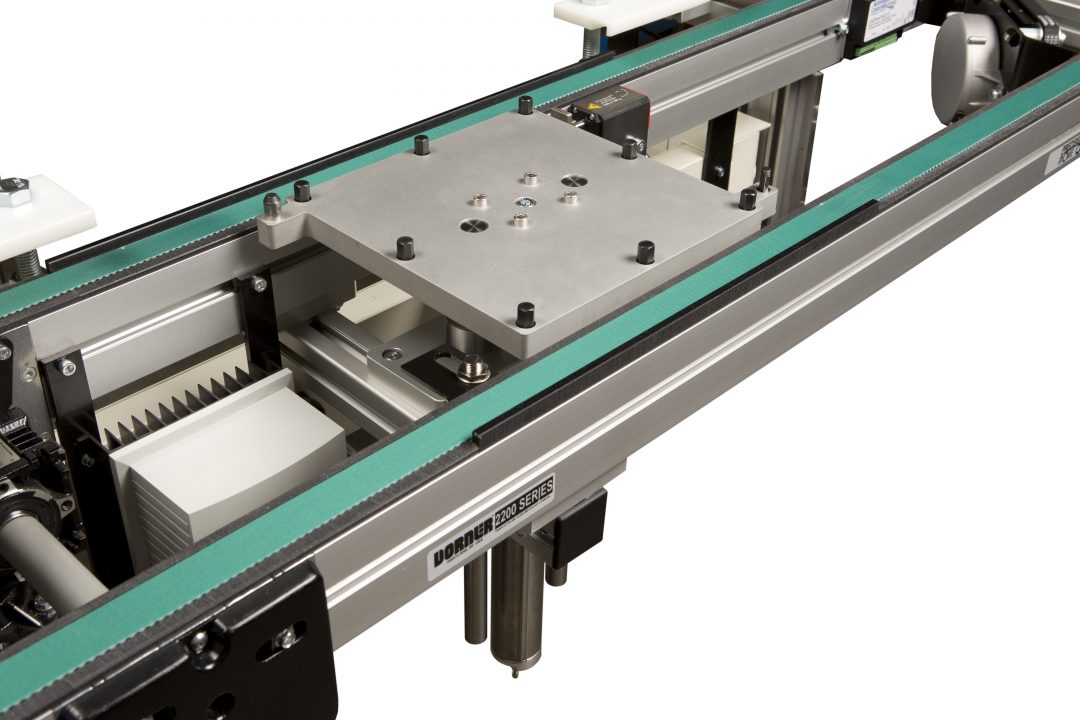

  • Dorner 2200 Precision Move Pallet System
    Lift & Locate Module has adjustable height lift from center of conveyor
  • Dorner 2200 Precision Move Pallet System
    The lift & locate module provides 100 lbs of lift capacity at 90 psi.

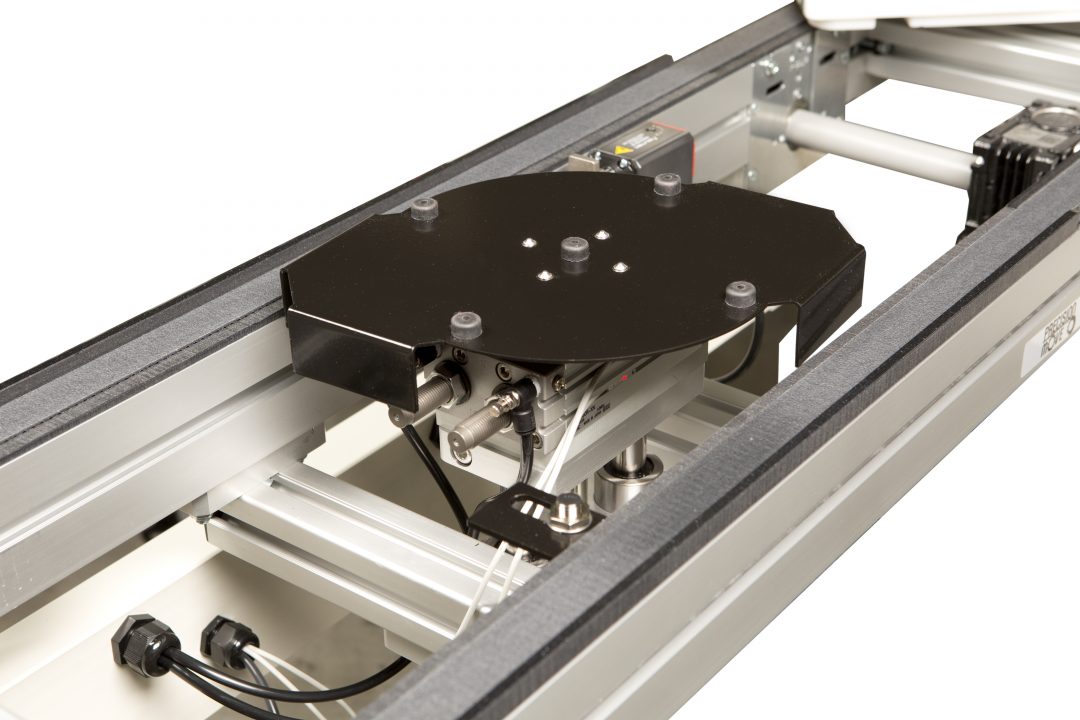

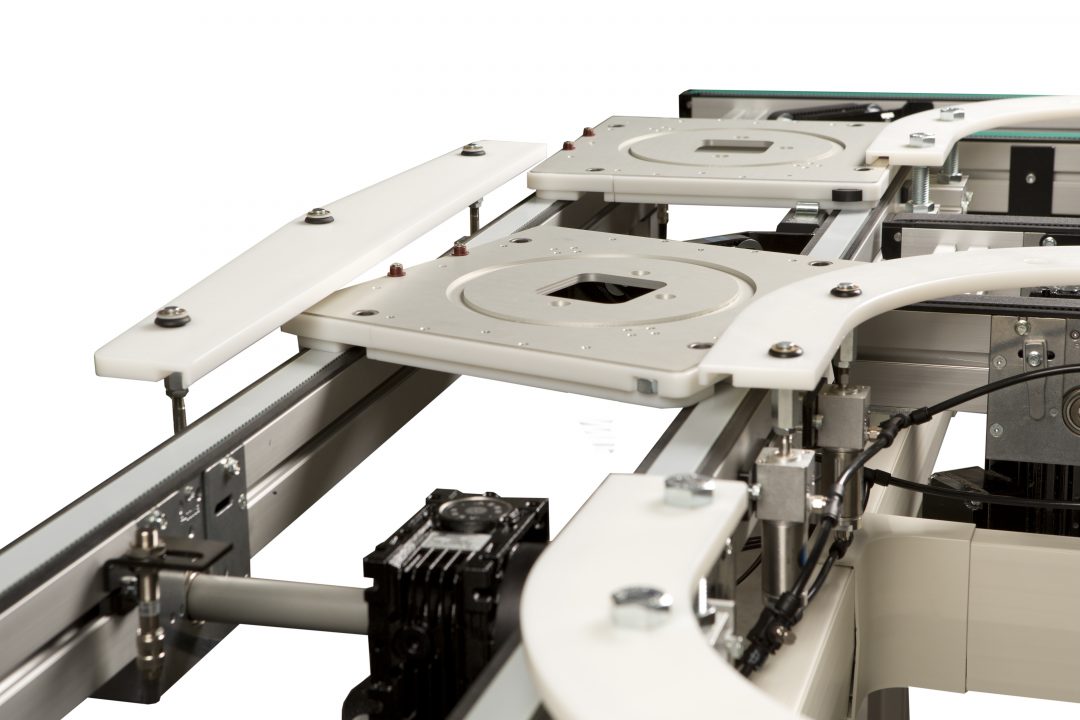

  • Lift and Rotate Module
    Lift & Rotate Module has pneumatic lift from center of conveyor and pneumatic rotation with adjustable positioning
  • Dorner 2200 Precision Move Pallet System
    Module has an adjustable rotation angle from 90 to 180 degrees and includes a cushioned lift stroke.
  • Lift & Transfer
    Lift and Transfer Module changes the product orientation using a pneumatic lift.
  • Dorner 2200 Precision Move Pallet System
    Lift & Transfer module has 50 lb load capacity.

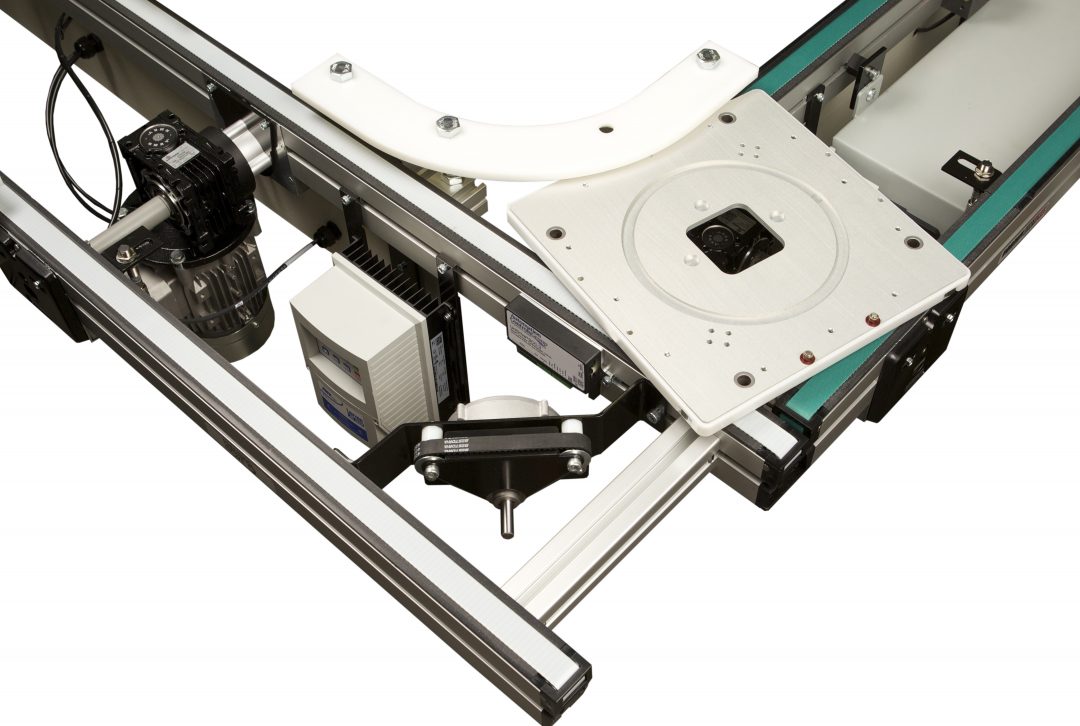

  • Dorner 2200 Precision Move Pallet System
    90 Degree Corner uses pin tracking in pallet to maintain the turn.
  • Dorner 2200 Precision Move Pallet System
    Inside guide is mounted to pneumatic cylinders to transfer pallet around corner

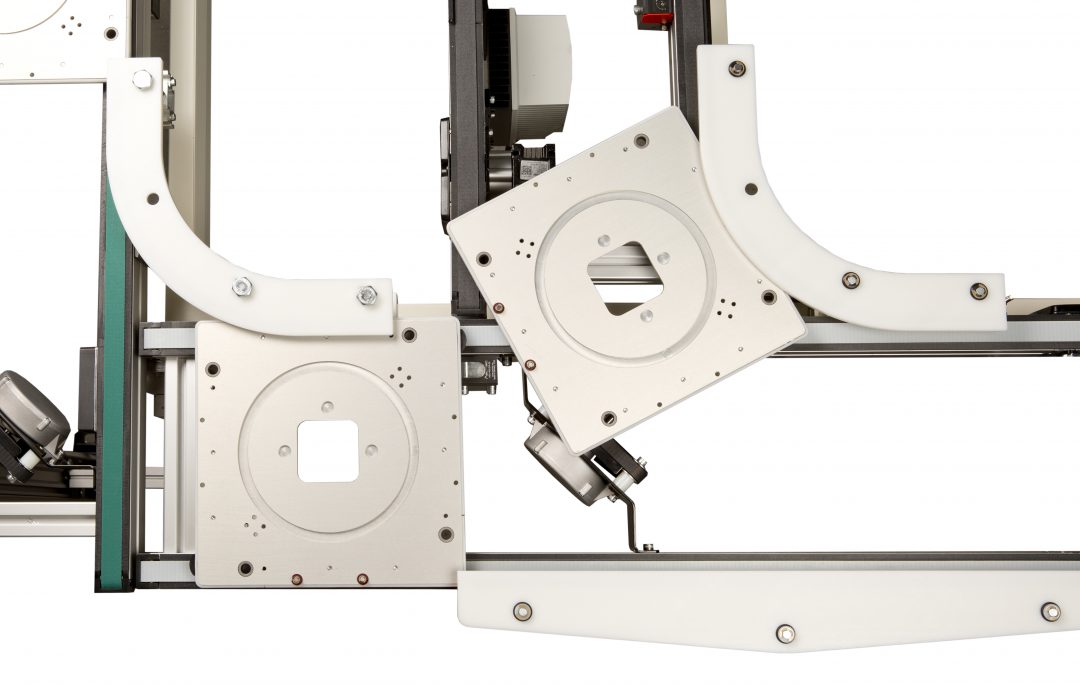

  • Dorner 2200 Precision Move Pallet System
    90 degree corner and merge module.

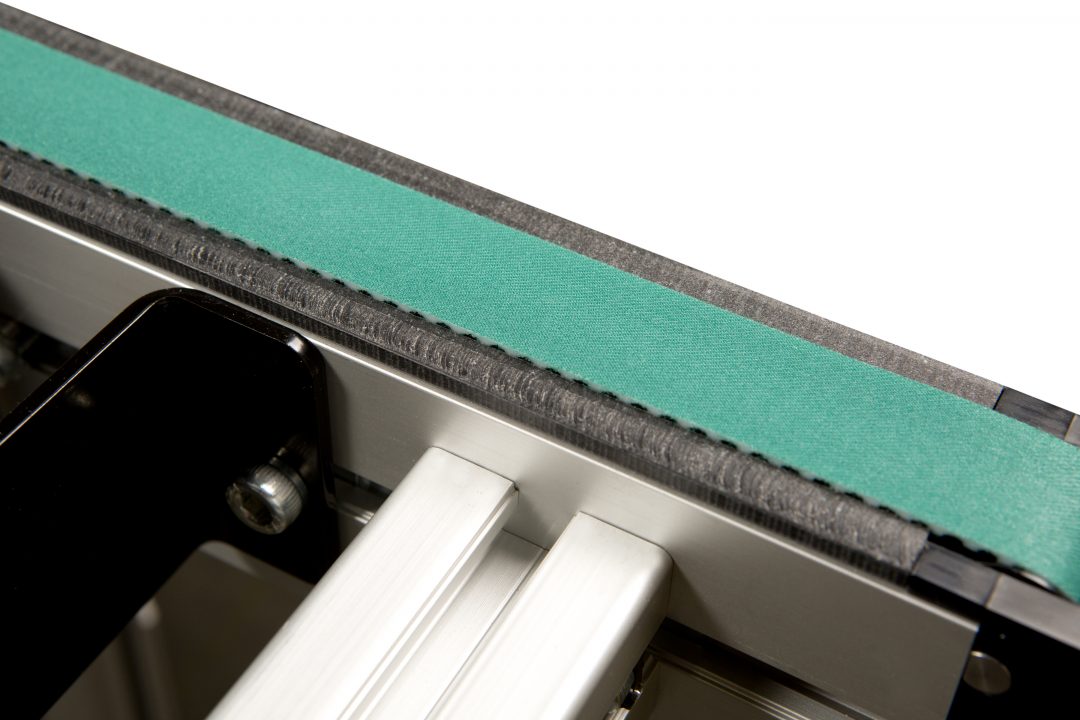

  • Dorner 2200 Precision Move Pallet System Belt
    Standard low friction belting.

Benefits of 2200 Precision Move Pallet System Conveyor

​Our highly advanced Precision Move Pallet System for assembly automation is ideal for increasing efficiency, generation, and precision of pallet traffic. Additionally, it reduces downtime costs that could disrupt production.



Best For:
  • Medium to large sized part movement
  • Product routing and control
  • Product inspection
  • Assembly automation
Sizes & Measurements
  • Widths: 160, 240, 320, 400, and 480 mm
  • Lengths: Up to 24′ 7″ (7,500 mm)
Loads and Speeds
  • Conveyor Load Capacity
  • 500 lbs non-accumulating
  • 250 lbs accumulated
  • Pallet capacity of 30 to 70 lbs
  • Speeds up to 114 ft/min (34 m/min)
Conveyors
  • Dual Belt conveyors with common drive module
  • 25 mm wide, 5 mm pitch timing belt conveyor
  • Standard or static conductive belting available
  • Aluminum extruded frame with universal T-Slot
  • Quick belt change without conveyor removal
Pallets
  • 160 mm to 480 mm
  • Industry compatible sizes and brushing locations
  • Static conductive pallet skirt
  • Square and rectangular sizes available
  • Pallets are sold as kits of completed assemblies
Pin Tracking System
  • Simple and cost effective method of tracking pallets through turns
  • Used on 90 Degree Corner and 90 Degree Corner & Merge Modules

Manuals & Literature

Engineering ManualsPagesFile Size
2200 Precision Move Pallet System Engineering Manual448.37 MB



LiteraturePagesFile Size
2200 Precision Move Pallet Systems Brochure64.43 MB
