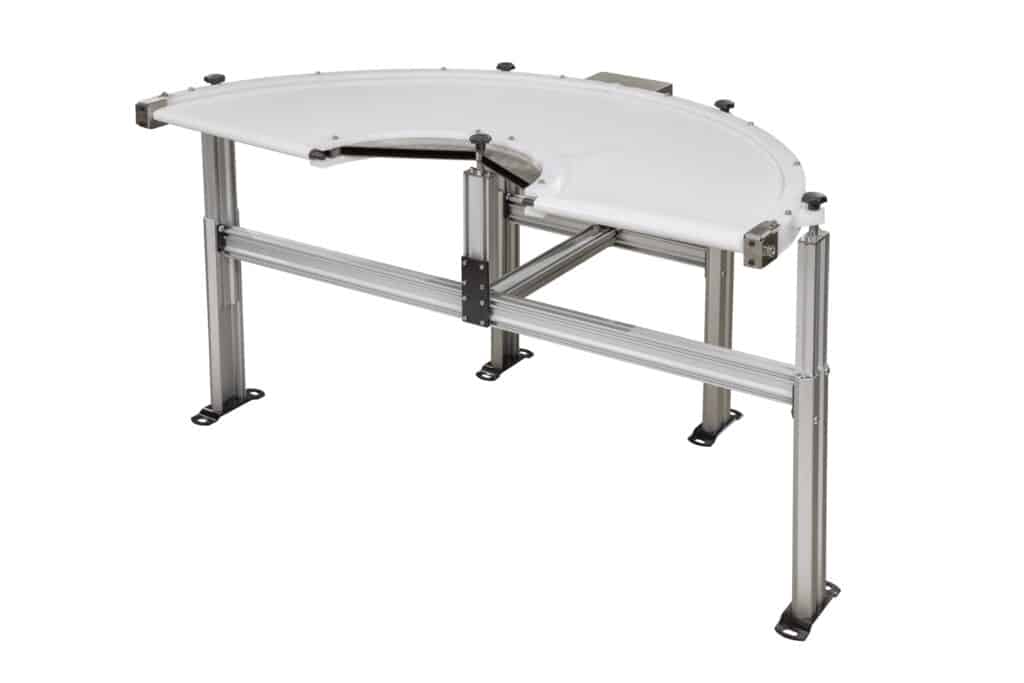

C3 Compact Curve Conveyor
Contact Us
Conveyor specialists are ready to help you find the right solution
Benefits of C3 Compact Curve Conveyors:
Designed with the low-profile frame Dorner is known for, the C3 brings innovation to belted conveyor systems with a patented curved belt and drive system. This unique construction offers smooth curves for delicate materials and products while maintaining positioning accuracy through turns, and small pulleys ensure smooth transfers for products as small as 2 inches. Unlike traditional 90° transfers, the C3 keeps the leading edge consistent through the curve to ensure products are correctly positioned for the next step down the processing line. The simplified configuration also eliminates the need for straight infeed and outfeed conveyors, which are required in modular belted curves.
The C3 conveyor is also Dorner’s first conveyor platform designed to be compatible with our industrial belted conveyors and AquaGard LP sanitary conveyor series. With a stainless steel bed plate and FDA-approved plastic components, the C3 is BISCC-certified for baked goods, confectionery, and packaged foods.
C3 Key Differences
- Flat fabric belt reduces potential product damage or loss for small, delicate products such as candy or pastries.
- Small footprint and low profile frame, ideal for running product around other machinery or support structures.

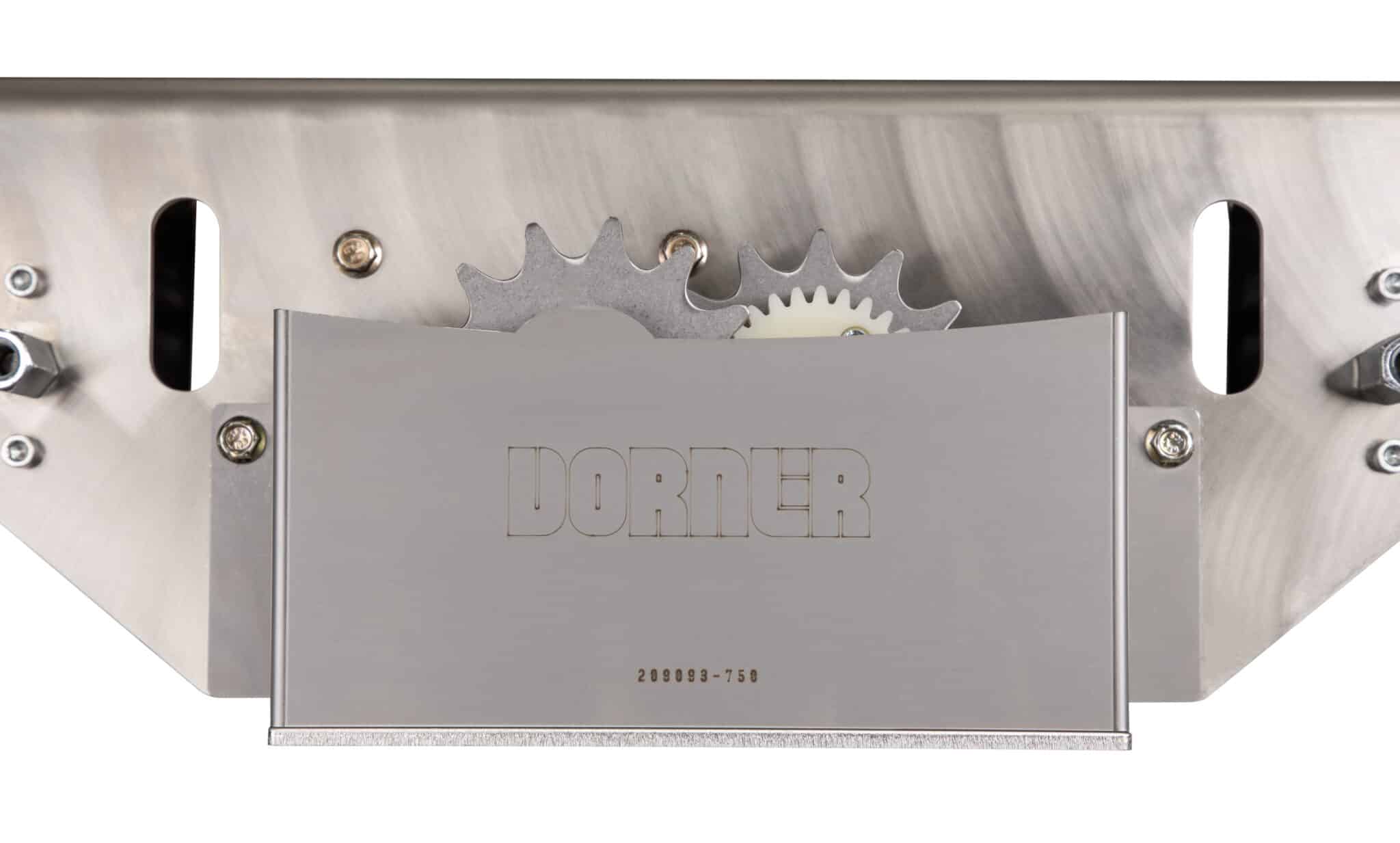

- Pantented side-driven sprocket operates with minimal belt tension, reducing wear on belt and parts.
- Stainless steel bedplate and FDA-approved belt material available.
- Cross-compatibility with other Dorner conveyors, making spare parts readily available.
Features & Specifications
- Widths: 150, 300, 450, and 600 mm options available with a range of inside radius configurations.
- Arc degrees:
- 45° for an outside radius of 750 mm and larger
- 90° & 180° for an outside radius of 600mm or smaller

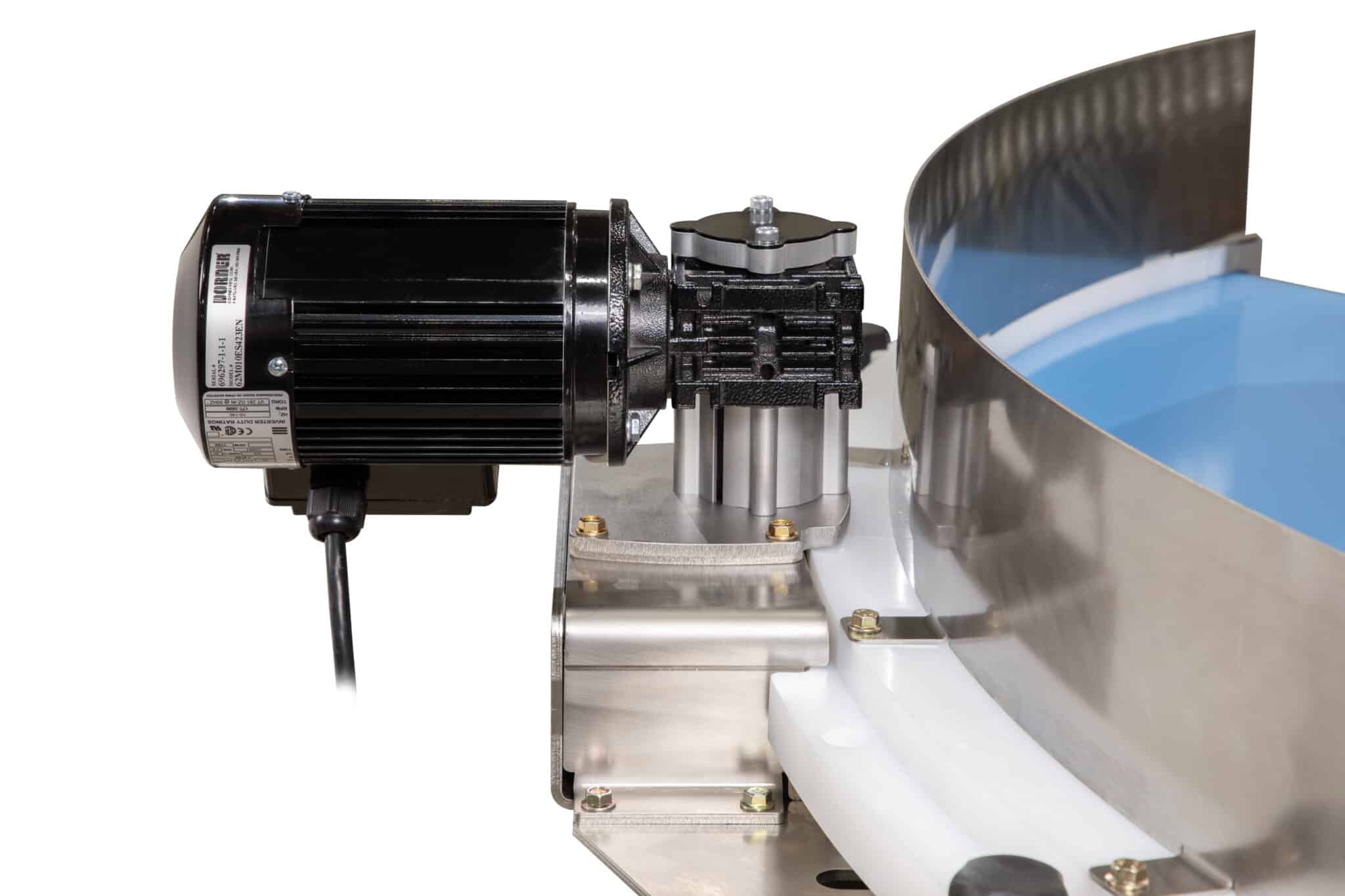

- Motor mounting options above or below the belt
- 90° shaft or parallel gearboxes
- 24VDC pancake motor
- Belting options:
- General purpose
- FDA-approved white or blue
- Product guiding options
- High side 24,75, or 150 mm
- Table Top & Adjustable stand options available

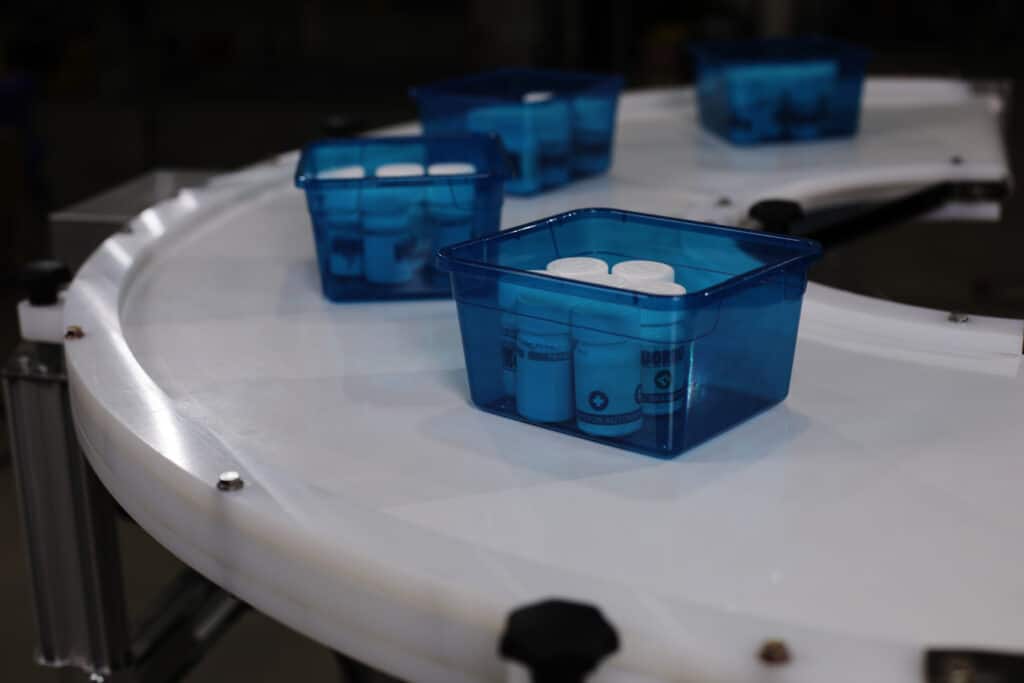

C3 Applications:
- Baked Goods & Confectionery
- Cosmetics & Personal Care Items
- Packaged Foods
- E-Commerce & Logistics
- Small Parts Handling
- Industrial Automation
