Lift and Rotate

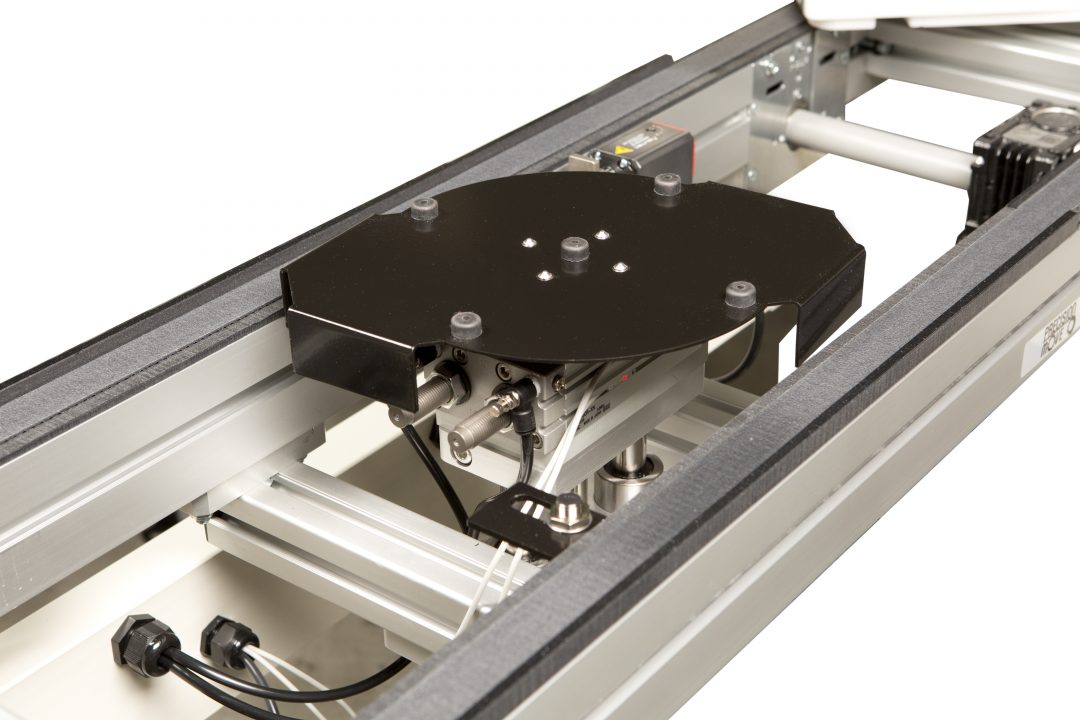

  • Lift & Rotate Module
  • Lift & Rotate Module
  • Lift & Rotate Module

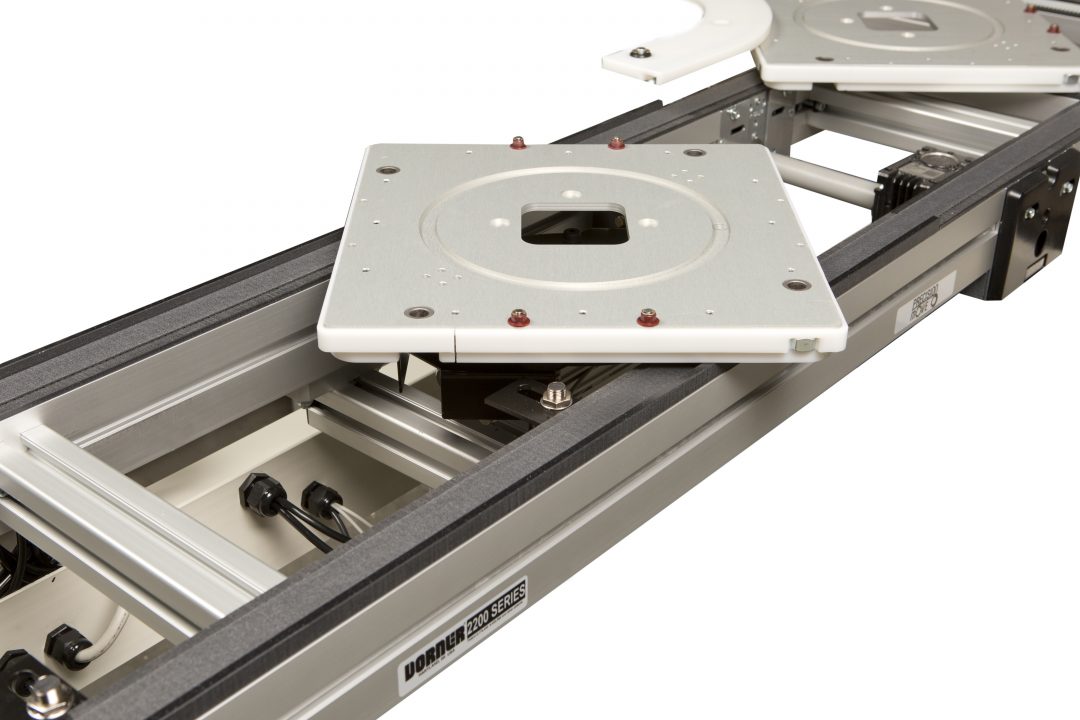

    Standard Feature: Breakaway Top Plate

Benefits of 2200 Precision Move Pallet System Lift and Rotate Module



Specifications:
  • Pneumatic lift from center of conveyor
  • Pneumatic rotation with adjustable positioning

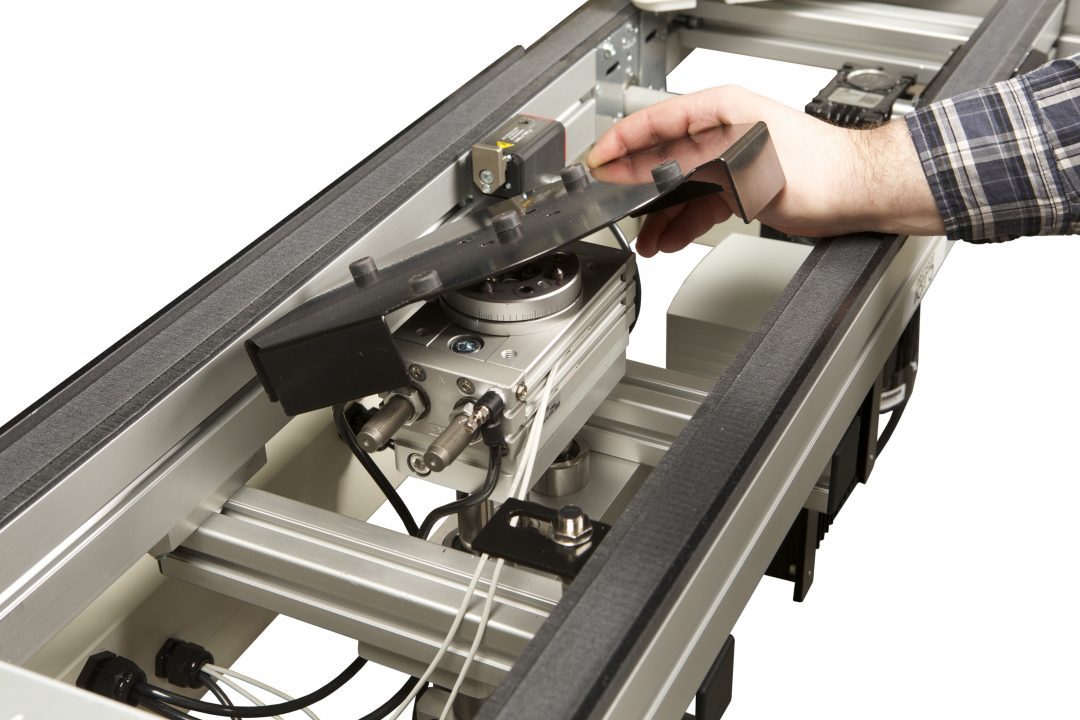

  • Includes break-away magnetic coupled rotation place for product safety in case of a malfunction
  • Rotation angle: 90 to 180 degrees
  • Includes cushioned lift stroke
  • 200 lbs load capacity
  • Includes mechanism, pallet stop, mounting hardware and fittings for 1/4″ push in air line
  • Includes sensor mount track for lift cylinder and rotation cylinder to mount 4 mm C-Track proximity sensors
  • Optional sensor mount for pallet. Sensor mounts are for standard 12 mm diameter proximity switch.
  • Optional guarding package

Manuals & Literature

Engineering ManualsPagesFile Size
2200 Precision Move Pallet System Engineering Manual448.37 MB



LiteraturePagesFile Size
2200 Precision Move Pallet Systems Brochure64.43 MB
