2200 Modular Belt Profiles

W = Conveyor Belt Width

Profile 01: Low Side

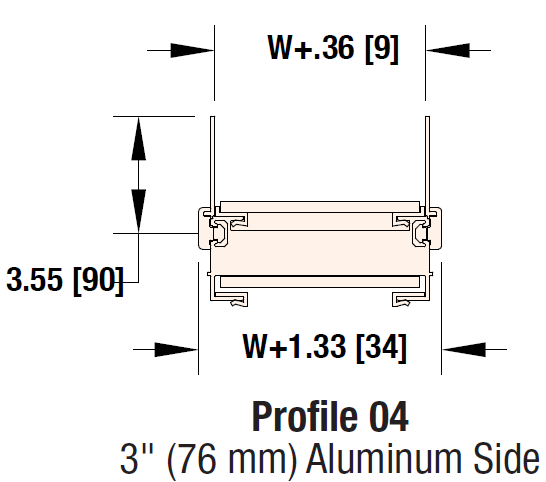

Profile 04: 3″ Aluminum Side

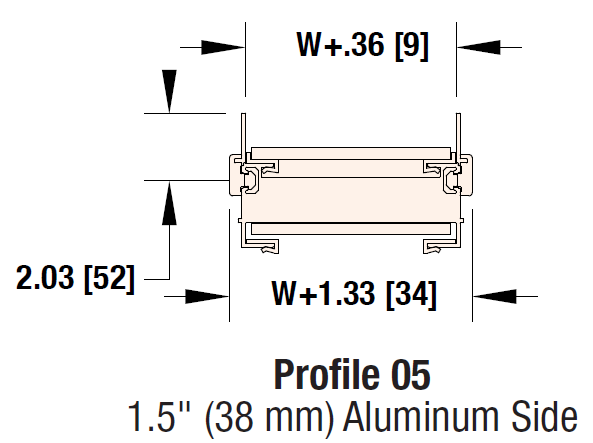

Profile 05: 1.5″ Aluminum Side

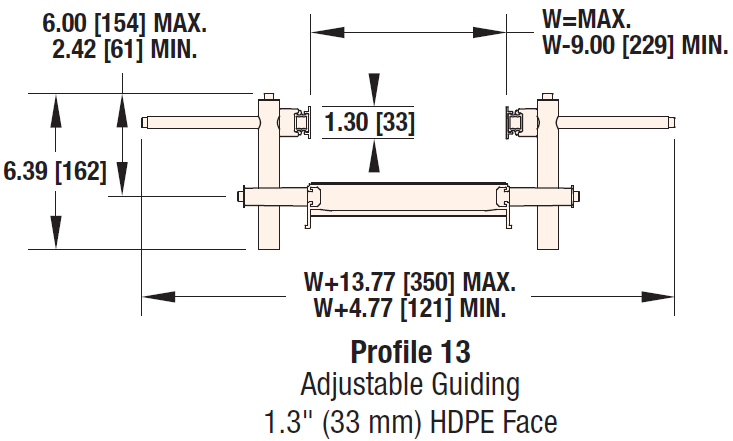

Profile 13: 1.3” Adjustable Guiding

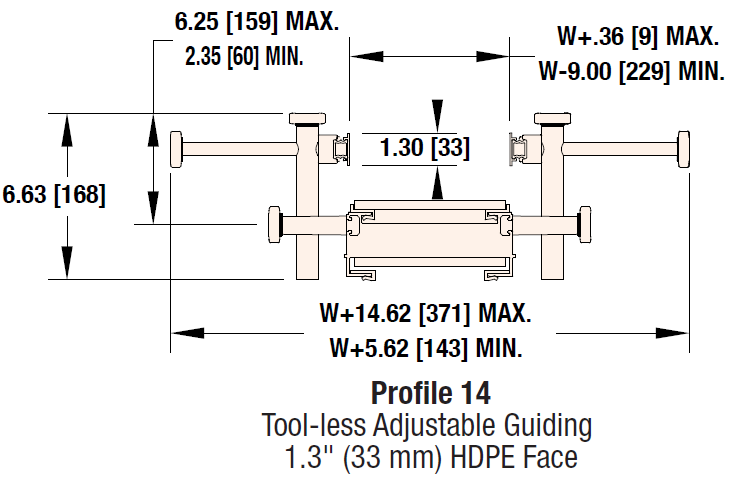

Profile 14: 1.3” Tool-less Adjustable Guiding

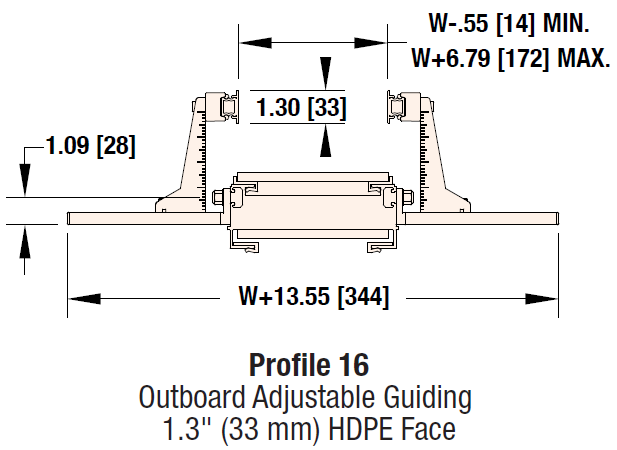

Profile 16: 1.3” Outboard Adjustable Guiding

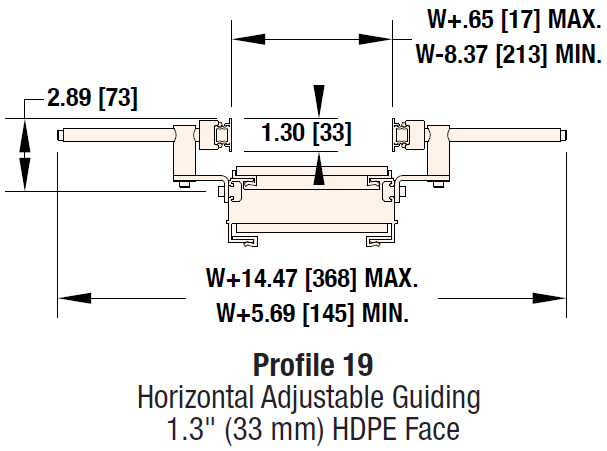

Profile 19: 1.3” Horizontal Adjustable Guiding

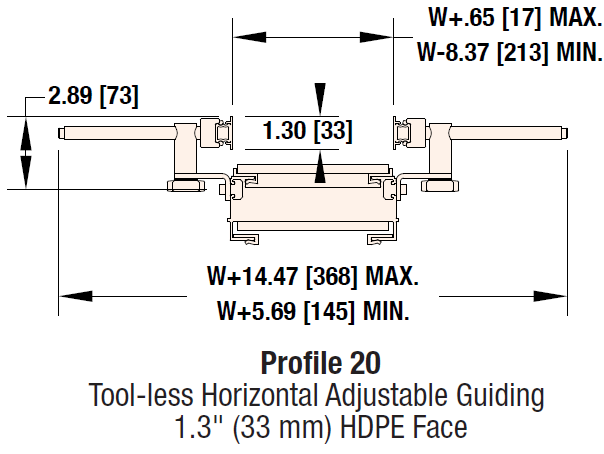

Profile 20: 1.3” Tool-less Adjustable Guiding

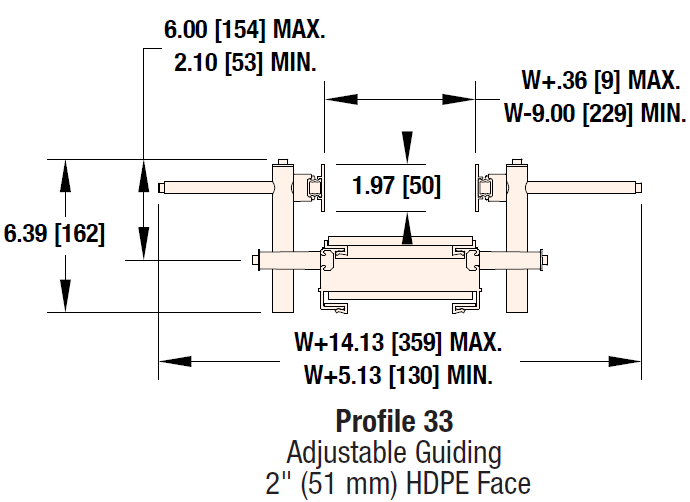

Profile 33: 2” Adjustable Guiding


























Profile 34: 2” Tool-less Adjustable Guiding

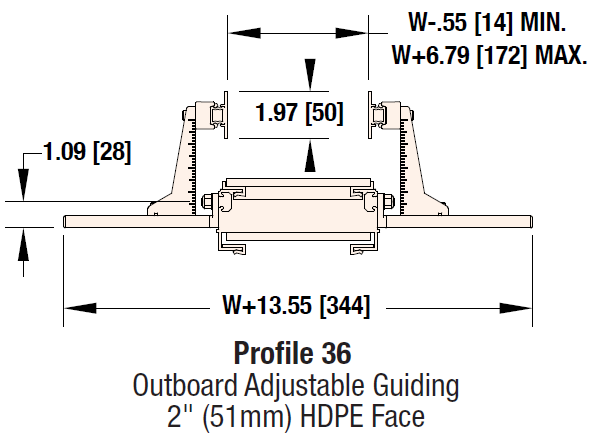

Profile 36: 2” Outboard Adjustable Guiding

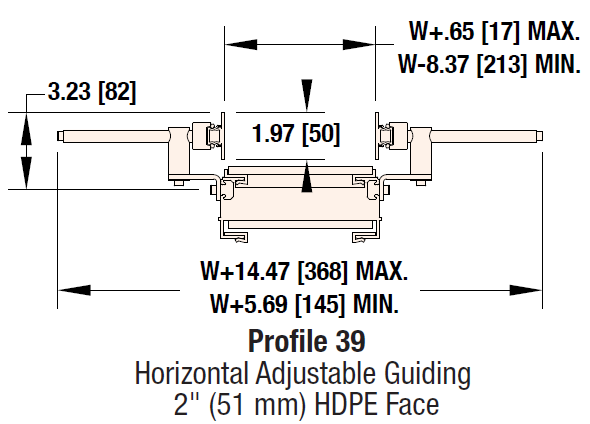

Profile 39: 2” Horizontal Adjustable Guiding

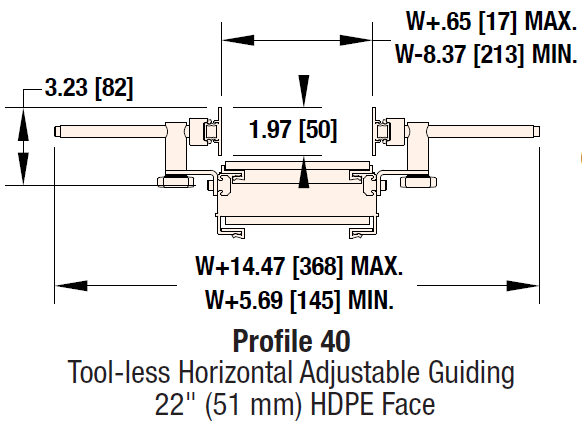

Profile 40: 2” Tool-less Adjustable Guiding

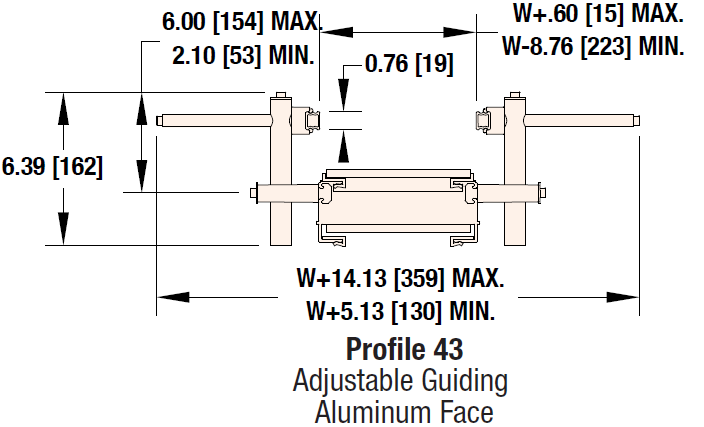

Profile 43: Adjustable Guiding Aluminum Face

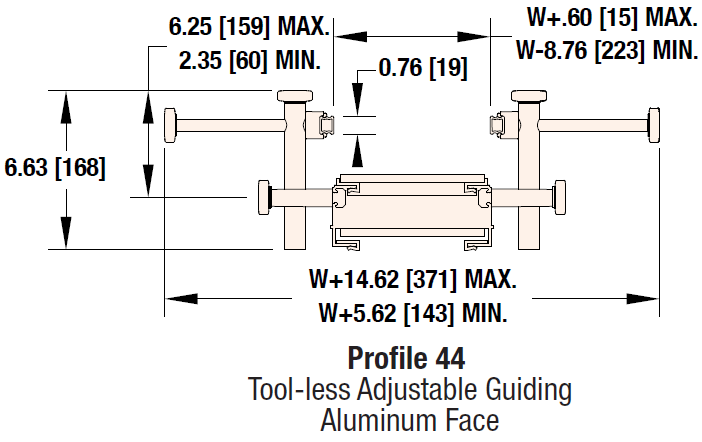

Profile 44: Tool-less Adjustable Guiding Aluminum Face

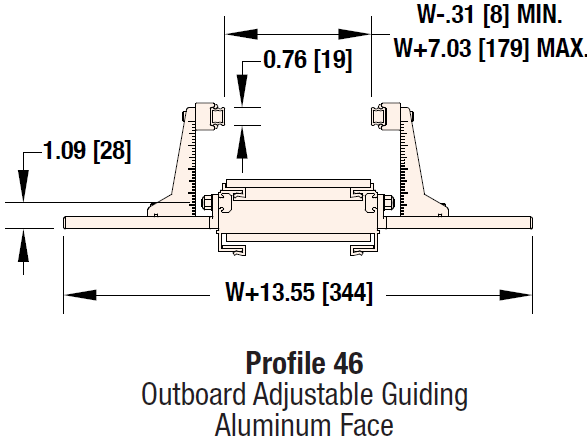

Profile 46: Outboard Adjustable Guiding Aluminum Face

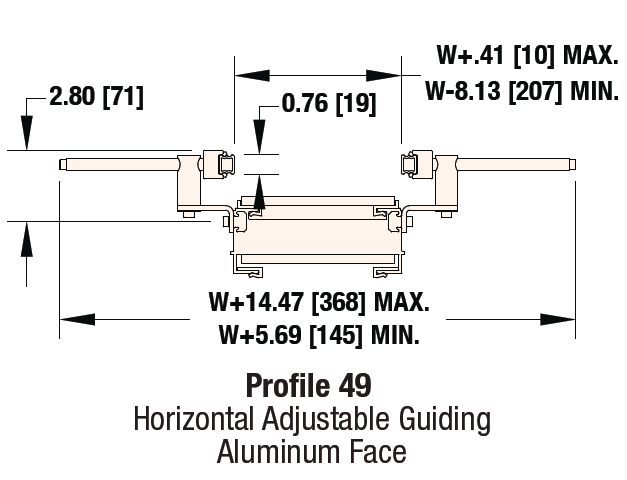

Profile 49: Horizontal Adjustable Guiding Aluminum Face

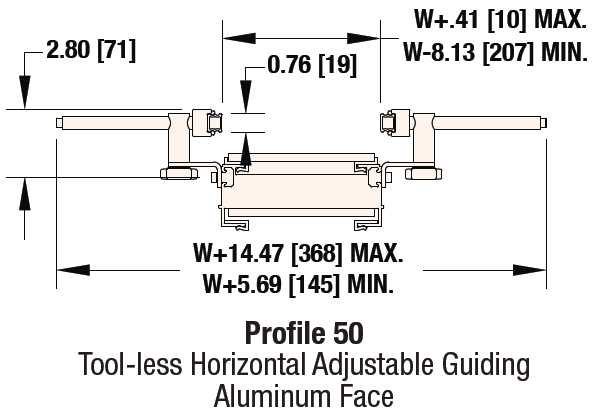

Profile 50: Tool-less Adjustable Guiding Aluminum Face
