2200 Series Flat Belt Support Stands & Accessories

2200 Flat Belt Support Stands



, 2200 Series Flat Belt Support Stands & AccessoriesFixed Height Support Stand

  • 4″ (102 mm) Height Adjustment
  • Provides most access to outside T-Slots
  • Includes height indicator
  • Full width is top plate on 12″ wide stands only








, 2200 Series Flat Belt Support Stands & AccessoriesAdjustable Height Support Stand

  • Up to 18″ height adjustment range
  • Includes height indicator
  • Full width is top plate on 12″ wide stands only

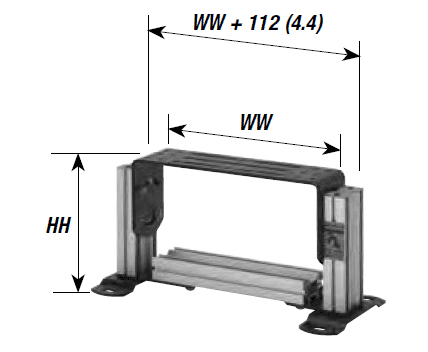

Short Support Stand

, 2200 Series Flat Belt Support Stands & Accessories

  • For top belt heights below 20″
  • Full width is top plate on 12″ wide stands only










, 2200 Series Flat Belt Support Stands & Accessories

Quick Adjust Stand

  • Metric fasteners
  • +/- 3″ (76 mm) height adjustment
  • Allows for quick height adjustment
  • Tool-less lock and adjustment handles










, 2200 Series Flat Belt Support Stands & Accessories

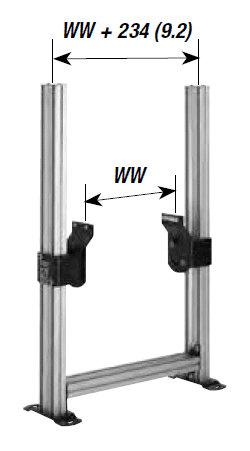

Fully Adjustable Support Stand

  • Provides maximum height adjustment range
  • Conveyor is located between stand legs












, 2200 Series Flat Belt Support Stands & Accessories

Support Post Stand

  • +/- 2″ height adjustment
  • Compatible with 2″-12″ wide conveyors
  • Mounting configuration: +/- 30° angle mount
  • Equipped with a steel base plate for floor mounting
  • Stand must be lagged to the floor
  • Top of belt heights:
    • Minimum = 20″ (508 mm)
    • Maximum = 97″ (2,464 mm)
    • Available in 1″ (25 mm) height increments




2200 Flat Belt Support Accessories



, 2200 Series Flat Belt Support Stands & Accessories



Cantilever Stand Mount

  • Widths: 2″ (51 mm) to 24″ (610 mm) available in 1″ increments
  • Conveyors up to 6″ wide are supported with a single cantilever bracket only
  • Conveyors 8″ and wider include a pivoting outboard support post
  • Mounts the conveyor from one side only for quick maintenance of the conveyor belt
  • Models: Table top bracket & Support stand mount bracket








, 2200 Series Flat Belt Support Stands & Accessories

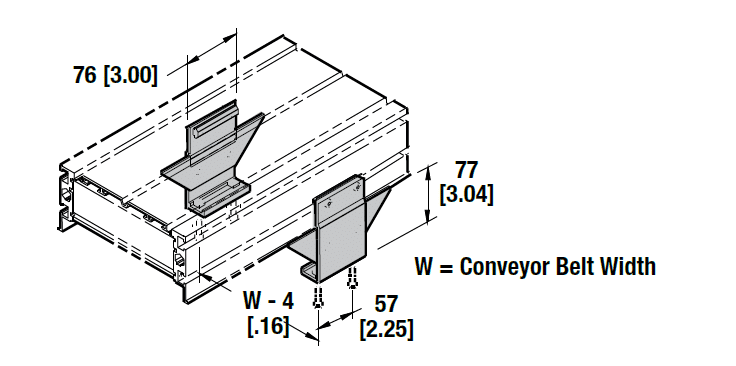

Cleated Belt Stand Mounting Bracket

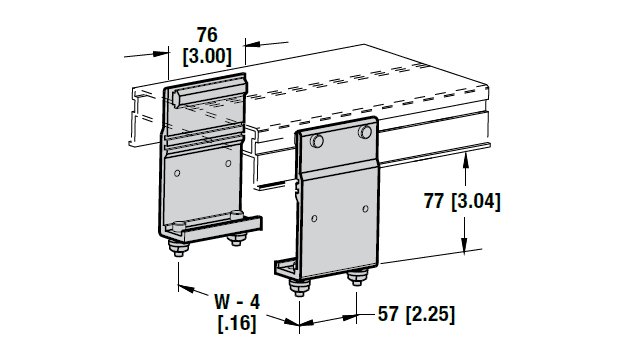

, 2200 Series Flat Belt Support Stands & AccessoriesFlat & Modular Belt Stand Mounting Bracket














, 2200 Series Flat Belt Support Stands & AccessoriesAdjustable Stand Tie Brackets

  • Compatible with steel and aluminum support stands
  • Secure critical stand and conveyor locations
  • Length (L) adjusts +0″, -11.25″ (286 mm)
  • Includes metric mounting hardware




, 2200 Series Flat Belt Support Stands & AccessoriesCommon Mount Kit

  • Stand accessory for mounting multiple conveyors in parallel to one stand
  • Adds 2.179″ (55 mm) to stand height
  • Adds 2.79″ (71 mm) to overall stand width






, 2200 Series Flat Belt Support Stands & AccessoriesDiagonal Bracing

  • For use on steel, aluminum and single post support stands with casters
  • Metric fastener mounting hardware included
  • For use on all stands with casters and any stands over 72″ (1829 mm) tall
  • One brace per stand for conveyors up to 24″ wide (610 mm)
  • Two braces per stand for conveyors over 24″ wide (610 mm)






, 2200 Series Flat Belt Support Stands & AccessoriesFine Adjustment Kit

  • Provides fine height adjustment via a threaded bolt
  • For use with Fixed Height Stands








, 2200 Series Flat Belt Support Stands & Accessories

Tall Support Stand Outriggers

Tall Stands are the Fixed Height and Adjustable Height Stands as shown with additional outrigger support for added stability. These outriggers are required when the height of the stand exceeds 3.5x its width, and they add 16″ to stand width. Tall stands over 6′ tall include diagonal bracing.

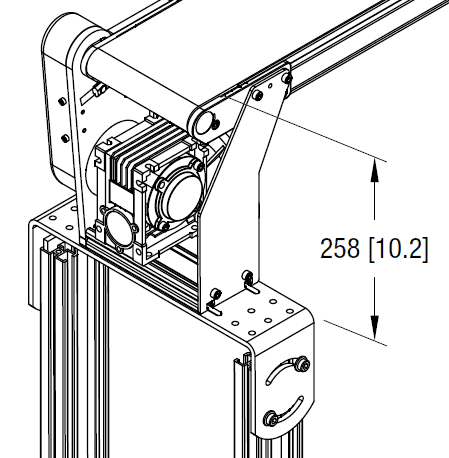

, 2200 Series Flat Belt Support Stands & AccessoriesBottom Mount Stand Bracket

  • Bolts to 90° standard load gearmotor
  • Includes metric mounting hardware
  • Provides a 10.2″ (258 mm) TOB Height
