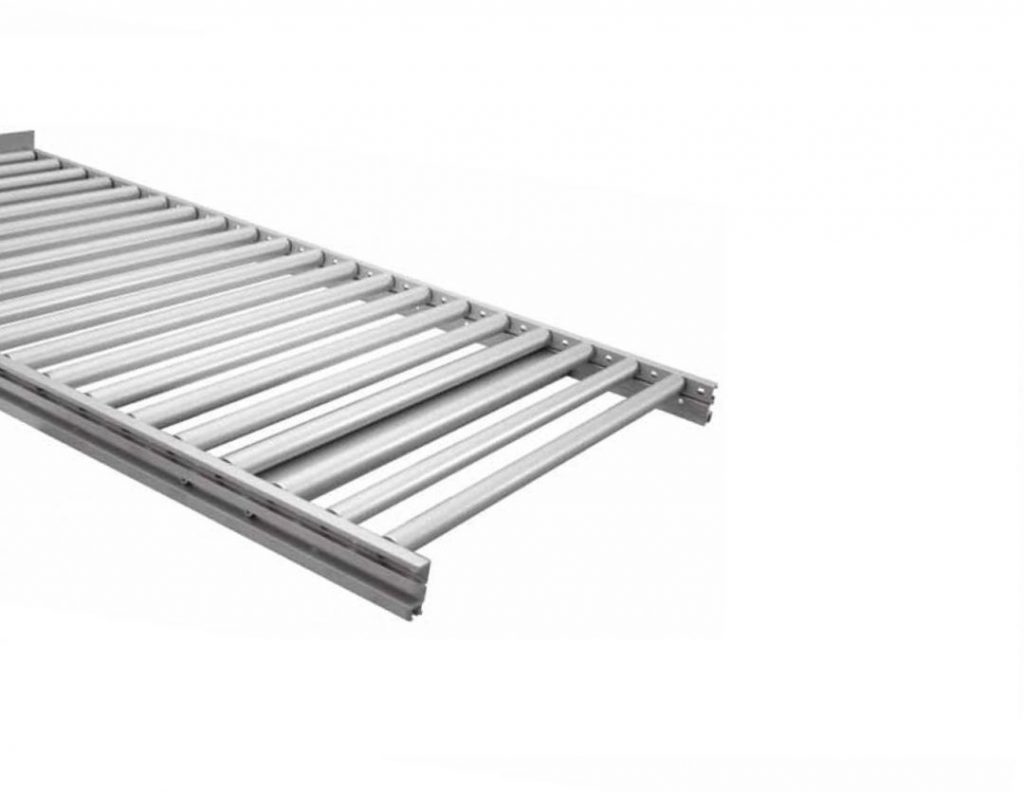

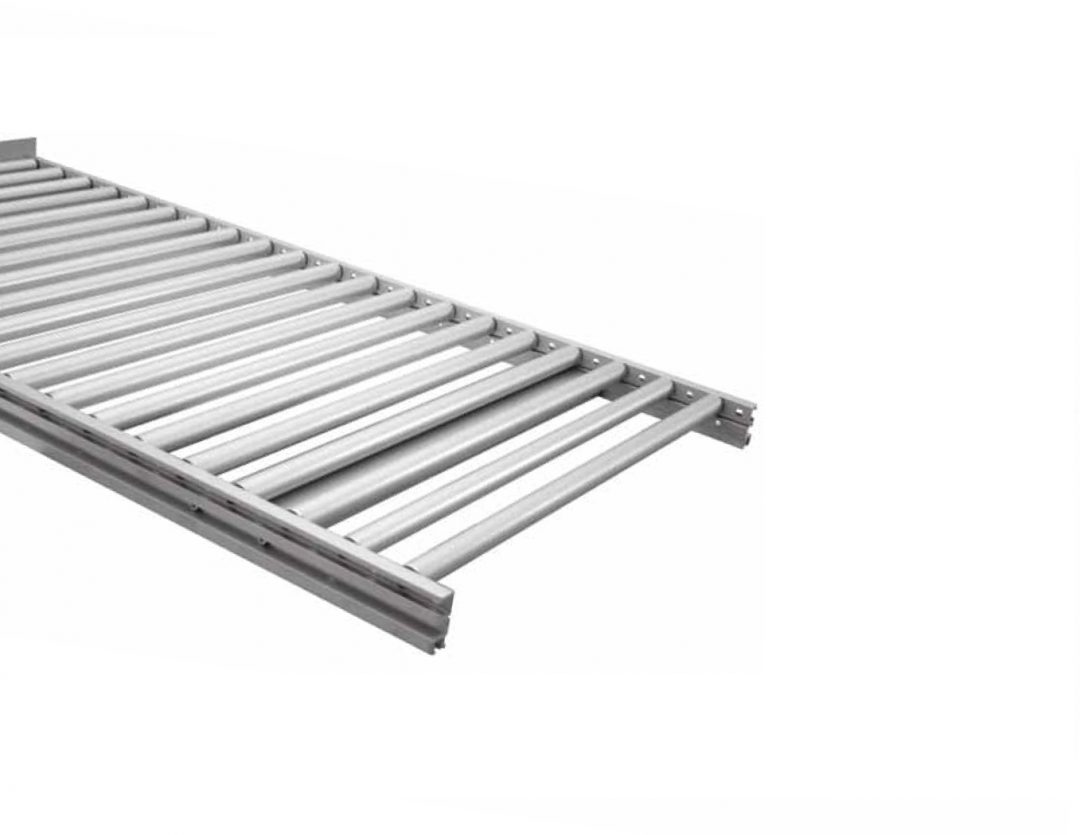

2200 Gravity Roller Conveyors

  • 2200 Series Gravity Roller
Contact Us
Conveyor specialists are ready to help you find the right solution

Benefits of 2200 Series Gravity Roller Conveyors:

Specifications

  • Loads up to 80 lbs/ft (119 kg/m)
  • Conveyor widths: 6″ (152 mm), 12″ (305 mm), 18″ (457 mm) and 24″ (610 mm)
  • Conveyor lengths: 2′ (610 mm) to 12′ (3,658 mm) in 6″ (152 mm) increments
  • Single piece frame lengths to 12′ long
  • Rollers: 1″ (25 mm) diameter rollers on 1.2″ (31 mm), 2.4″ (61 mm) or 3.6″ (91 mm) centers
  • Roller Material: Anodized aluminum tube with steel ball bearing
  • Side T-slot fits Dorner drop in hardware
  • T-slot fits standard M6 square nuts

Accessories

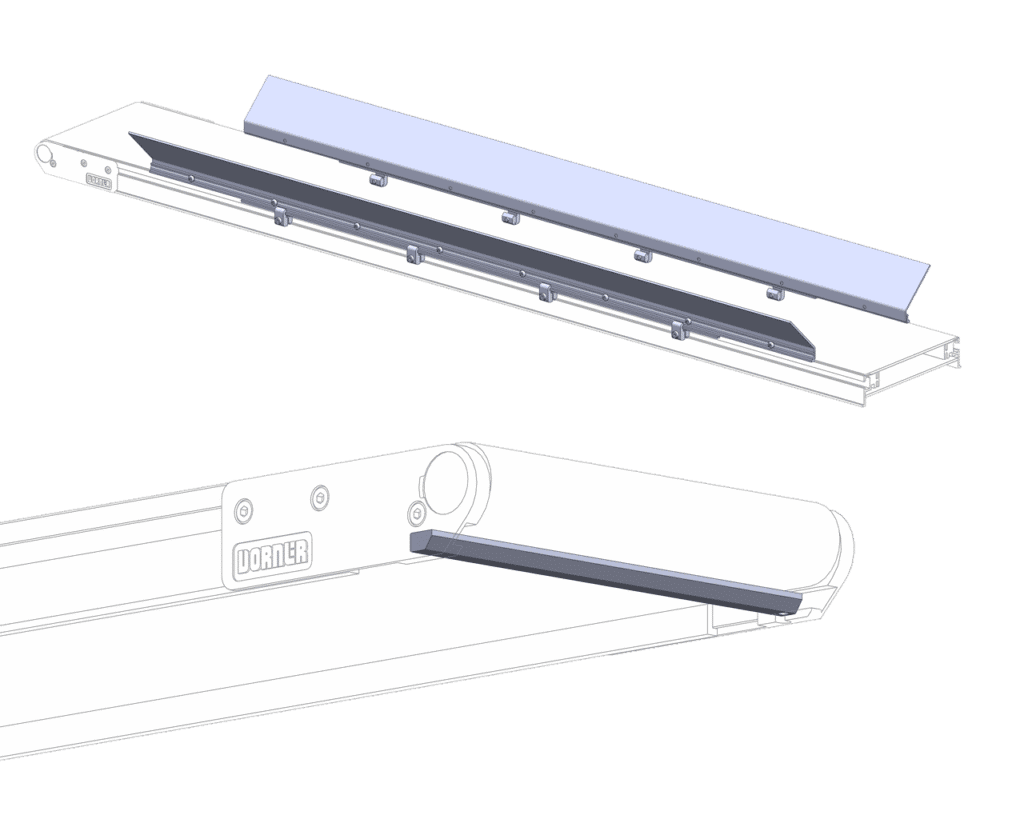

Guides & Wipers

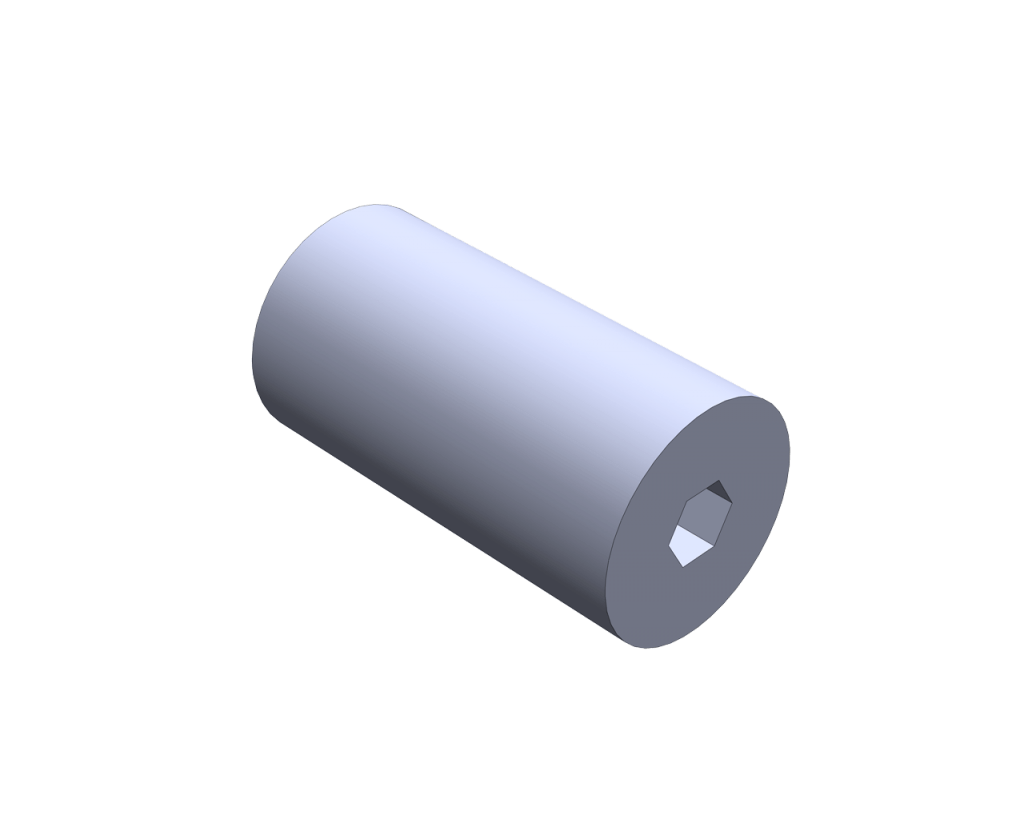

Drive Accessories

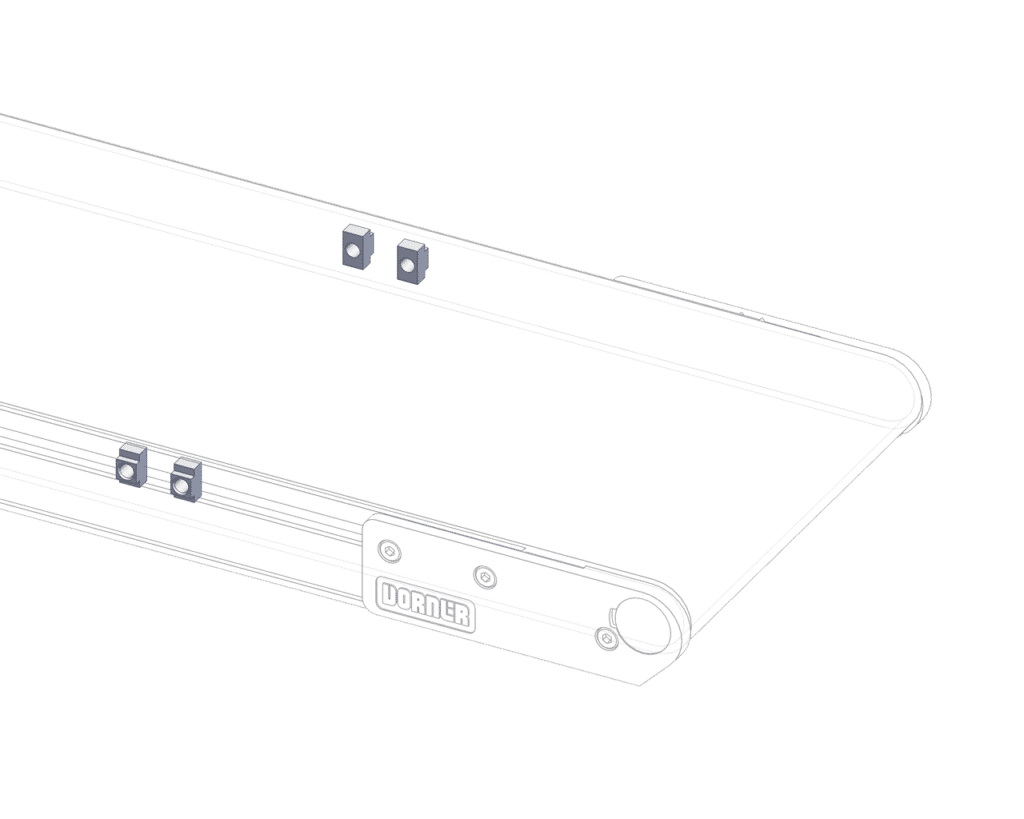

T-Slot Mounting Nuts
Adjustable End Stop
Fixed End Stop

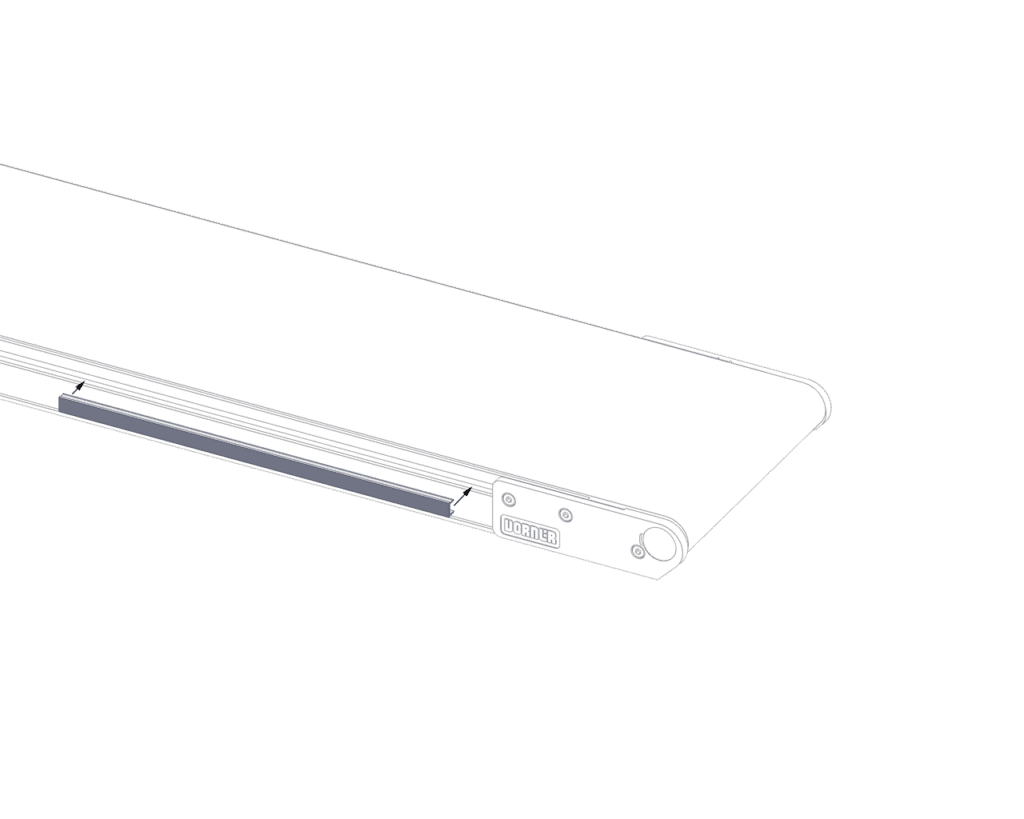

T-Slot Dust Cover

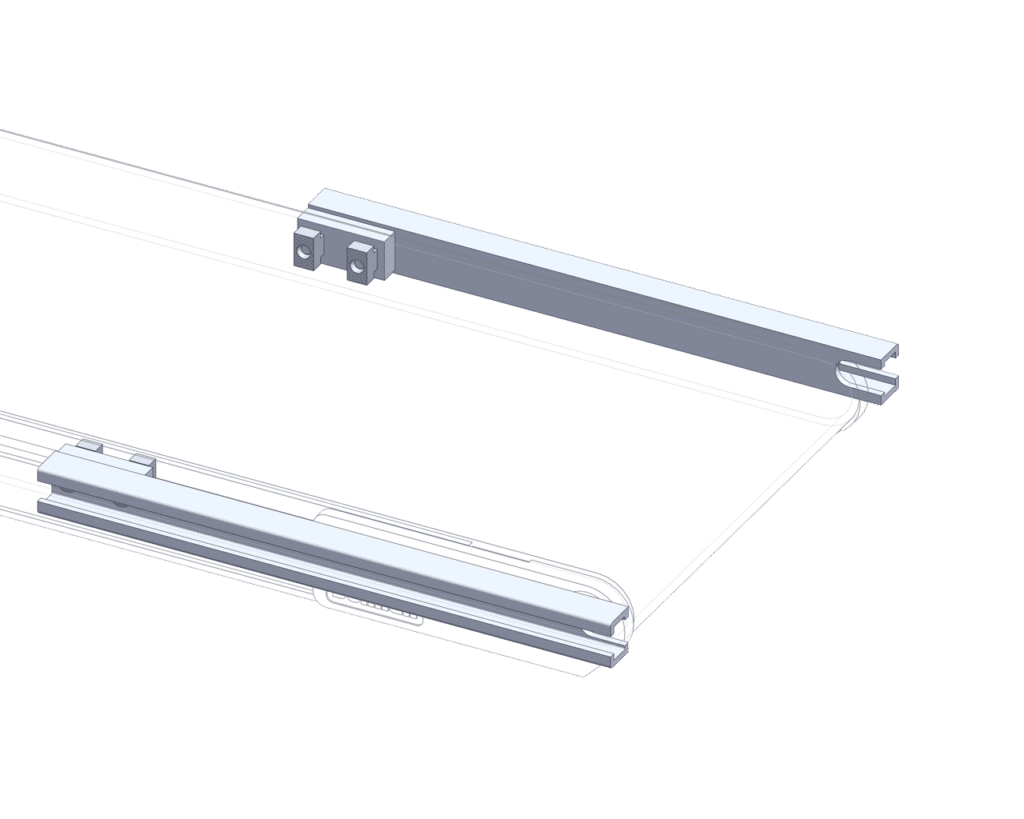

T-Slot Extender

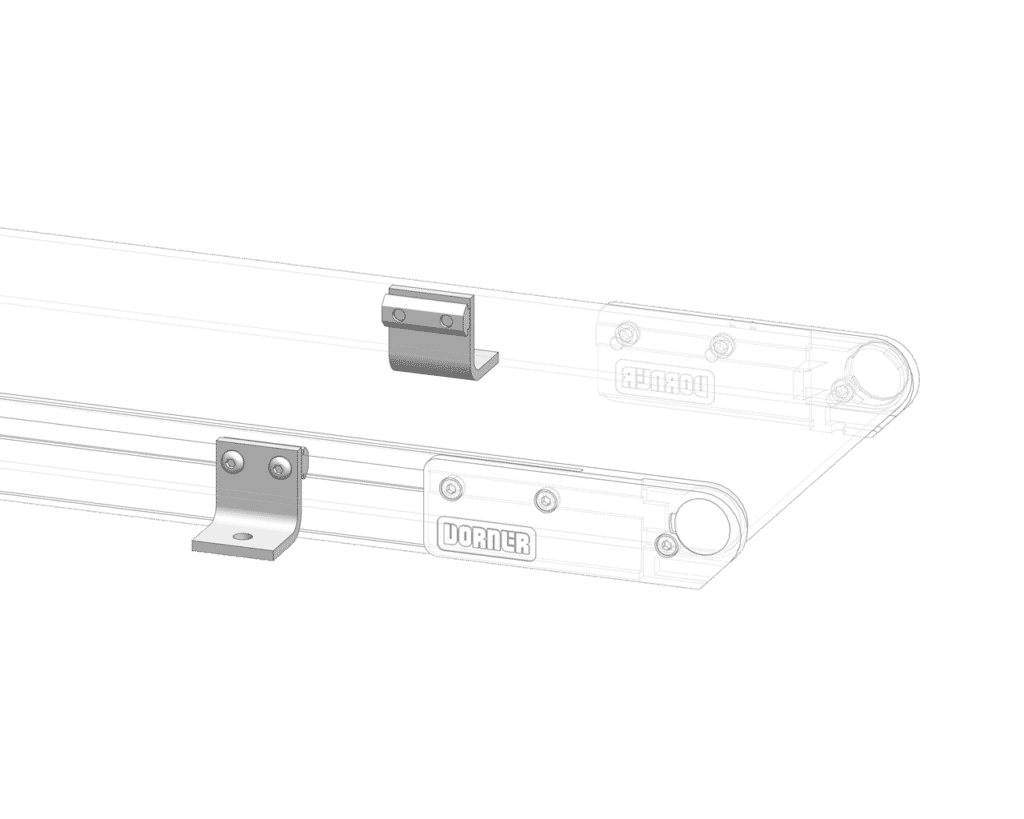

Table Top Mounting Brackets

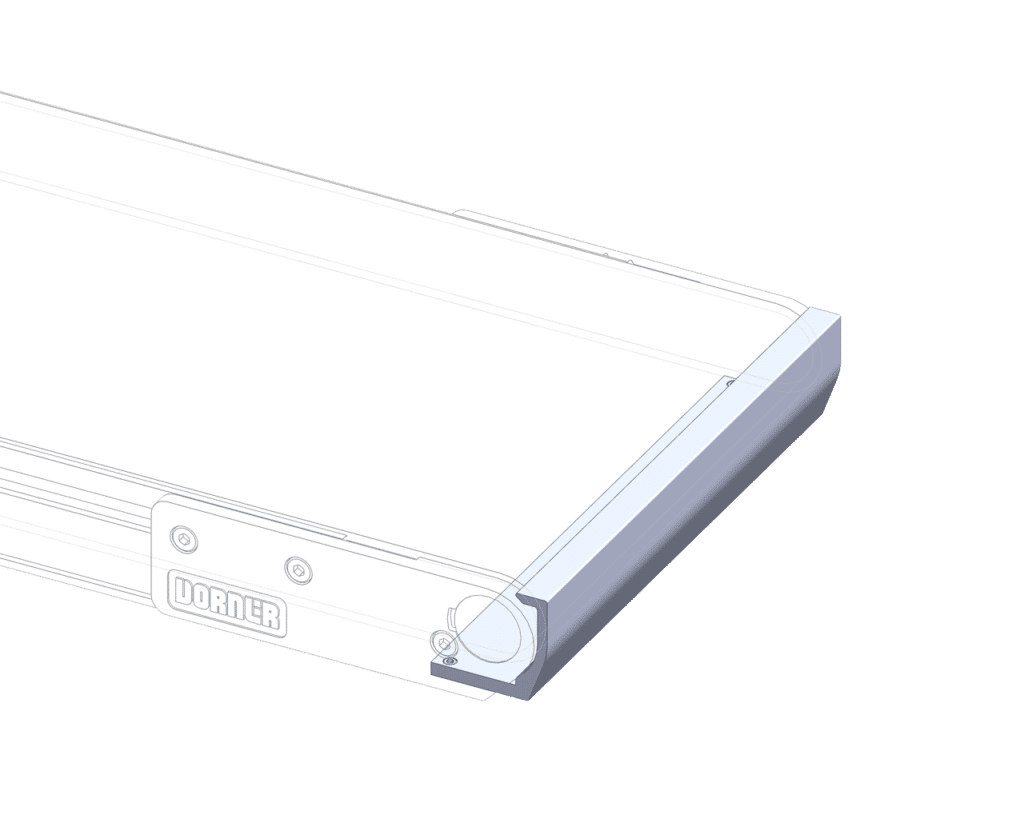

Pulley Transfer Plates

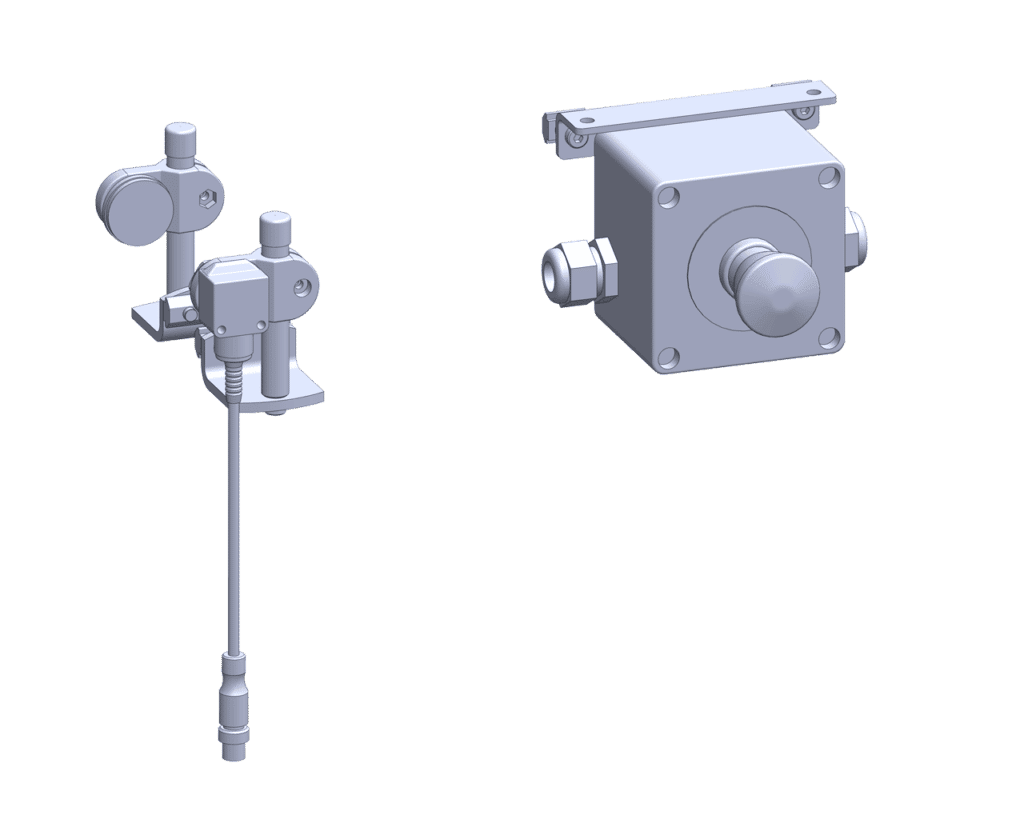

Motion Control

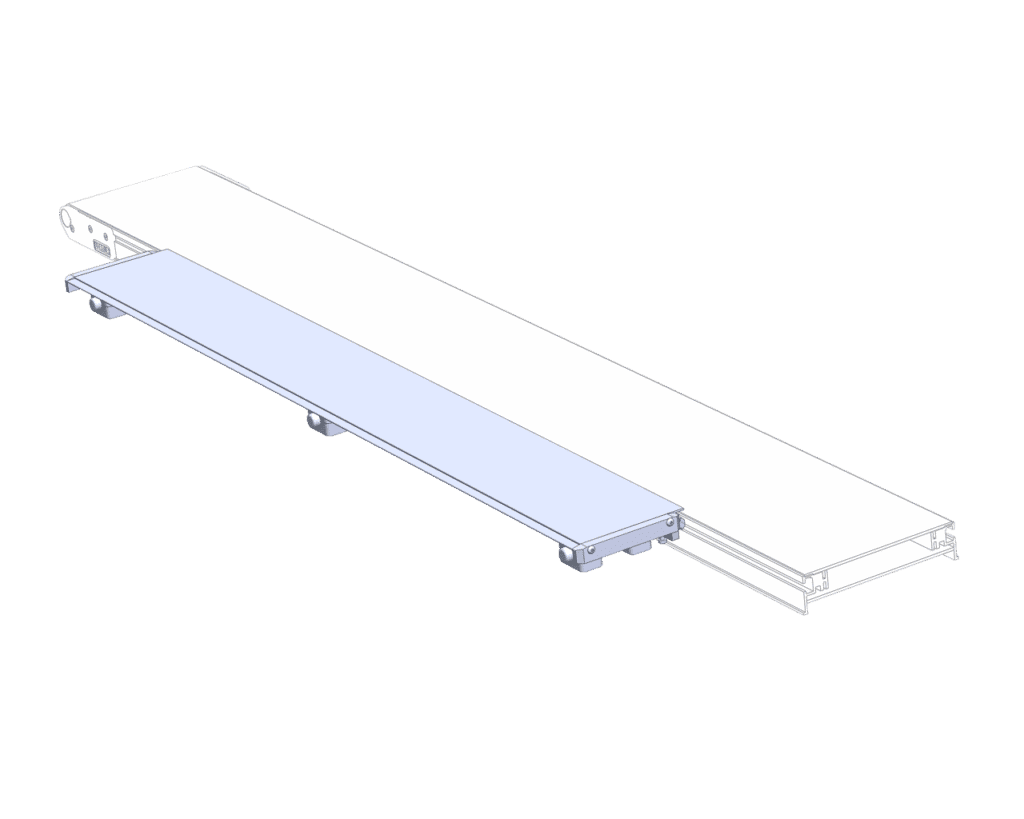

Side Tables

Manuals & Literature

Looking for Service Manuals? Search for Service Manuals by part number or product type HERE.

Engineering Manuals Pages File Size
 2200 Series Engineering Manual 108 14.67 MB
 Literature Pages File Size
 2200 Series Conveyors Brochure  6  1.12 MB
  2200 Series Gravity Roller Conveyors  1  1.56 MB
