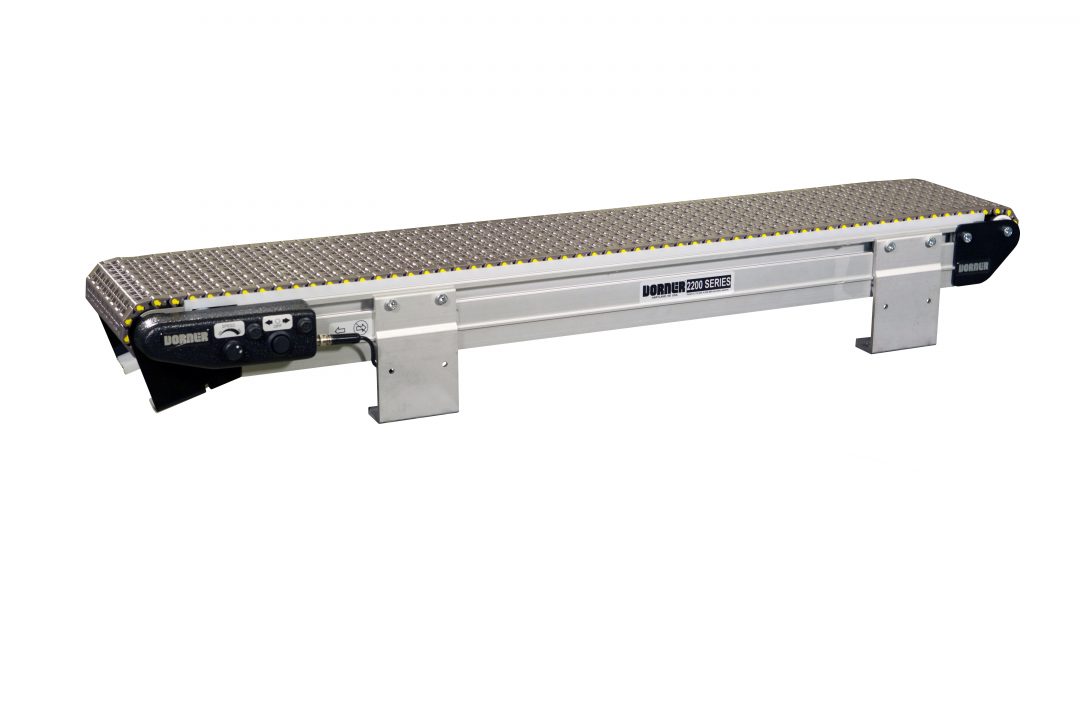

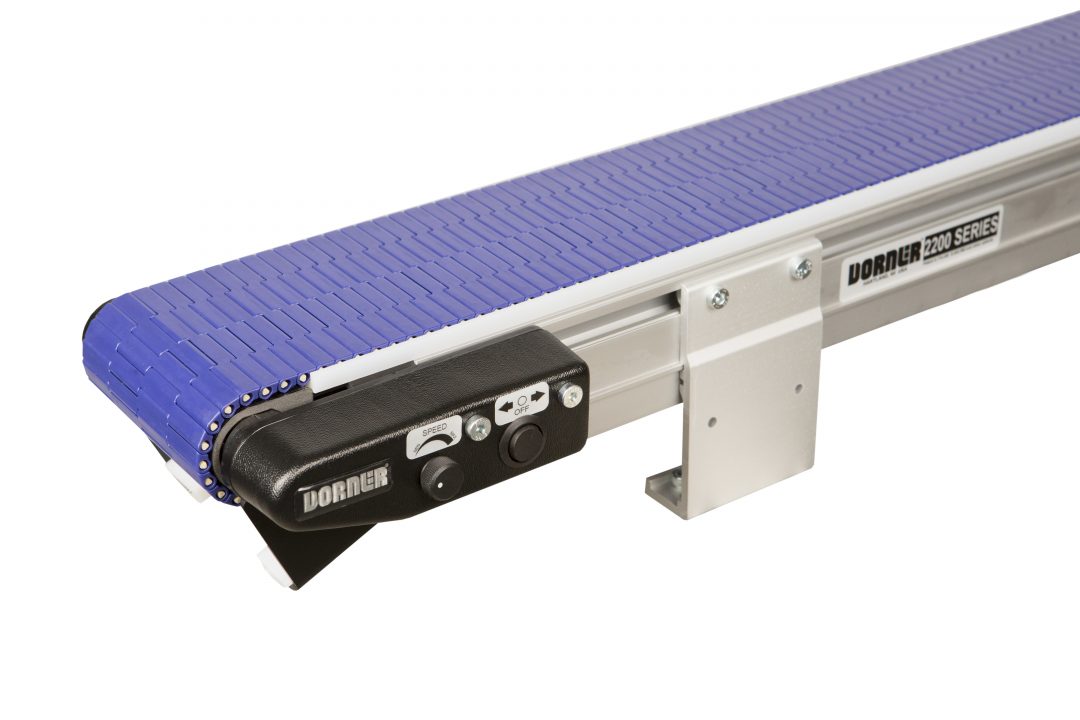

Benefits of 2200 Modular iDrive

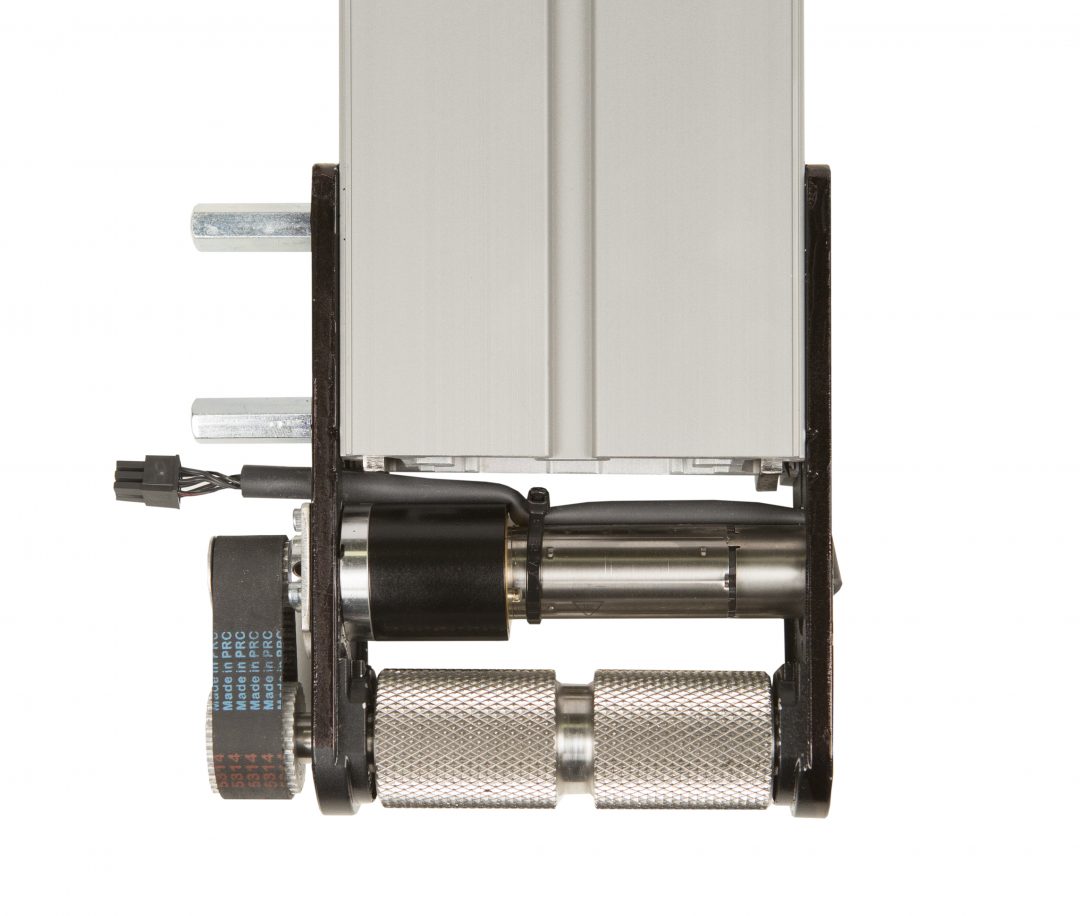

  • Internally mounted gearmotor and control for space savings and tight work spaces
  • Reduced integration time required to mount and wire the total conveyor package
  • Ideal combination of conveyor and gearmotor sizing for small parts handling
  • Indexing capable – Up to 30 indexes per minute
  • Fully encapsulated in frame belt return
Size & Measurement
  • Conveyor Load Capacity (non-accumulated, evenly distributed)
    • 2 to 20 ft/min up to 75lbs
    • 3 to 30 ft/min up to 50 lbs
    • 6 to 60 ft/min up to 30 lbs
    • 9 to 90 ft/min up to 20 lbs
  • Belt speeds: Variable Speed (4) Speed Options
    • 2 to 20 ft/min (0.6 to 6.1 m/min)
    • 3 to 30 ft/min (0.9 to 9 m/min)
    • 6 to 60 ft/min (1.8 to 18 m/min)
    • 9 to 90 ft/min (2.7 to 27 m/min)
  • Belt widths: 3″ (76 mm) to 24″ (610 mm)
  • Conveyor lengths: 18″ (457 mm) to 10′ (3,048 mm)

Belt options:

  • Micropitch (General Purpose) Belts
    • 0.33″ (8 mm) micropitch modular belt
    • 1.70″ (43.2 mm) pitch diameter 17 tooth drive pulley turns approximately 5.35″ (136 mm) of belt per revolution
  • Metalworking Belts
    • 0.60″ (15 mm) pitch modular belt
    • 1.88″ (47.8 mm) pitch diameter 10 tooth drive pulley turns approximately 5.91″ (150 mm) of belt per revolution
