2200 Series Precision Move Profiles

W = selected belt width



, 2200 Series Precision Move Profiles

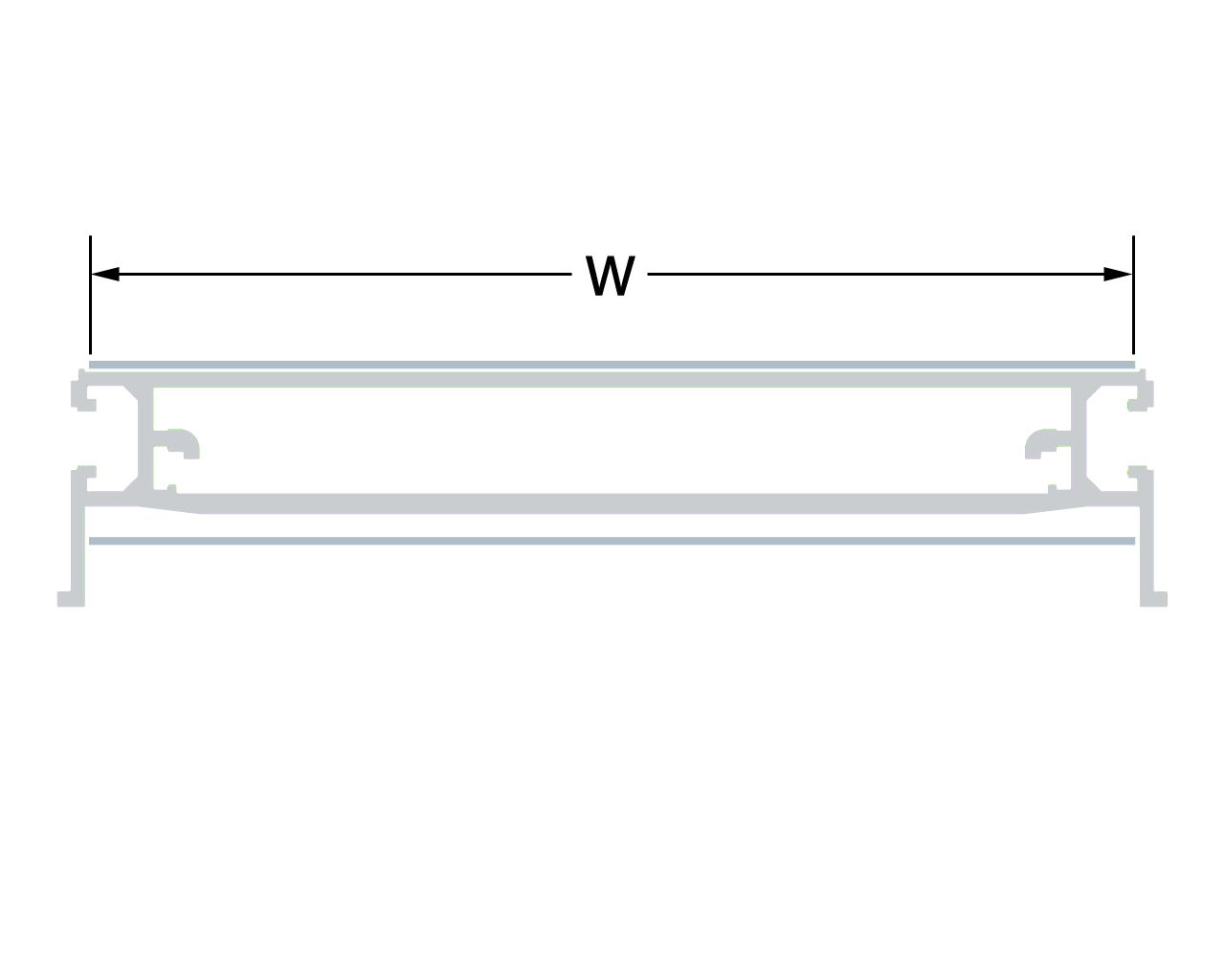

Profile 01: Low Side




















, 2200 Series Precision Move Profiles

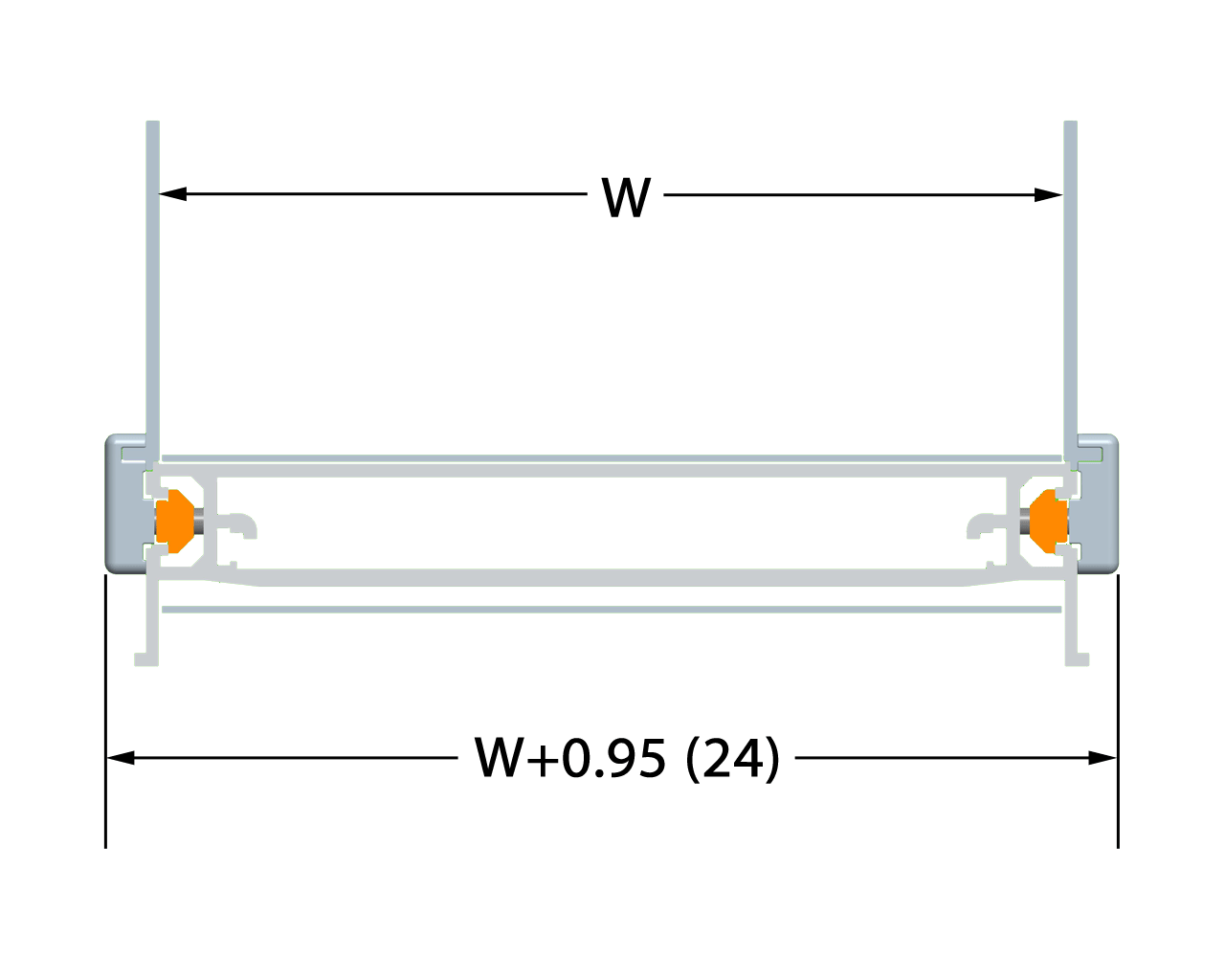

Profile 04: 3″ Aluminum Side




















, 2200 Series Precision Move Profiles

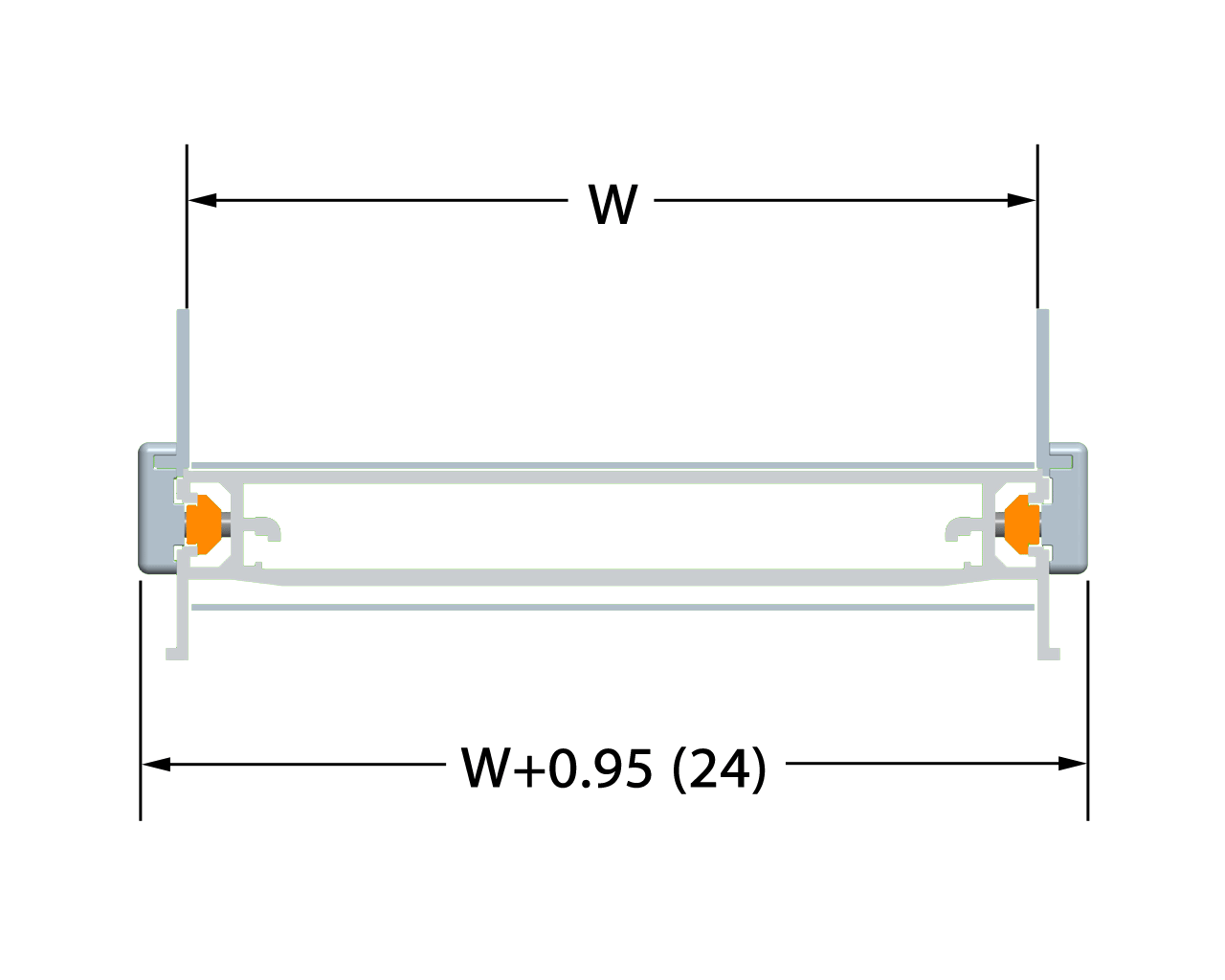

Profile 05: 1.5″ Aluminum Side






















, 2200 Series Precision Move Profiles

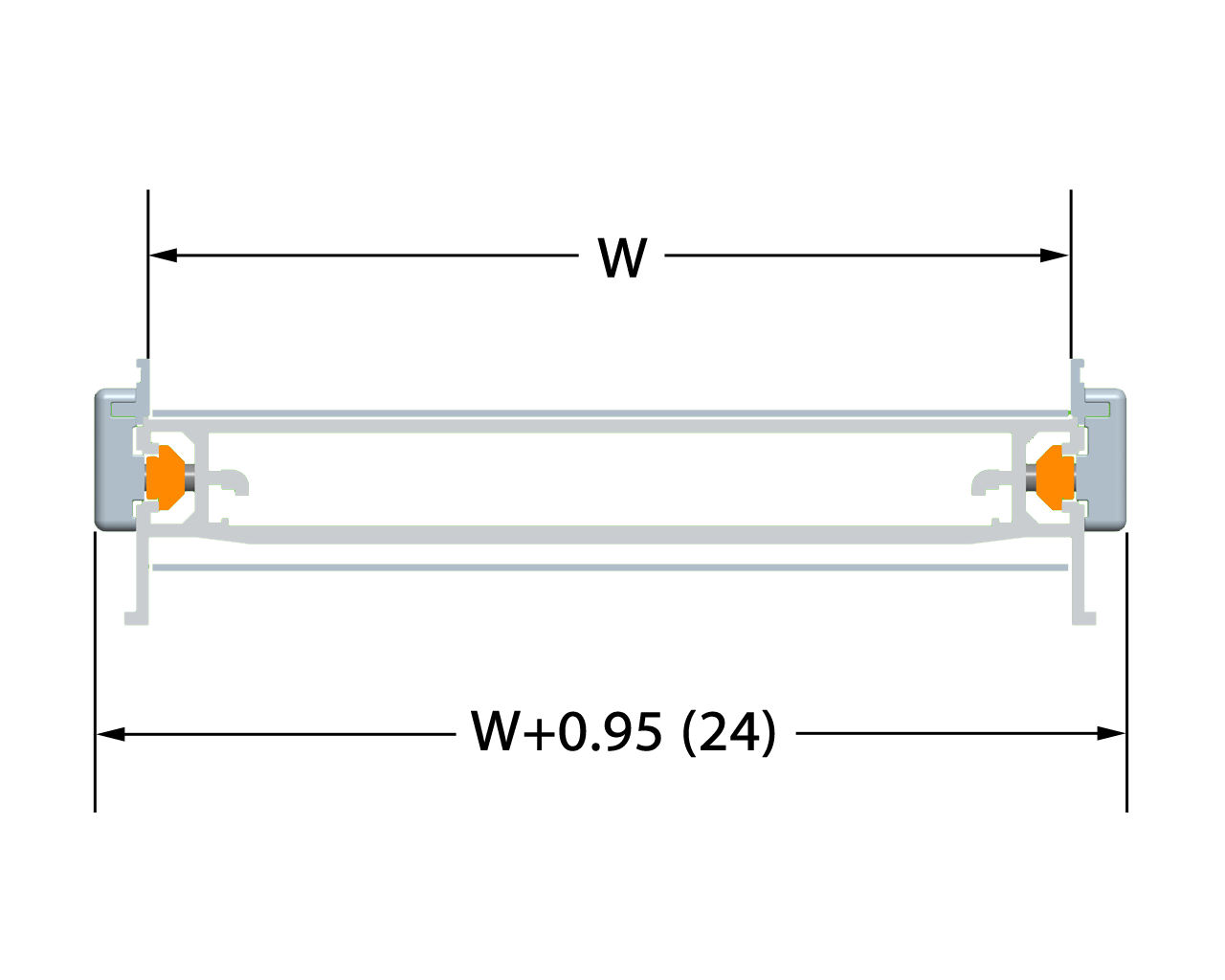

Profile 09: 0.5″ Aluminum Side




















, 2200 Series Precision Move Profiles

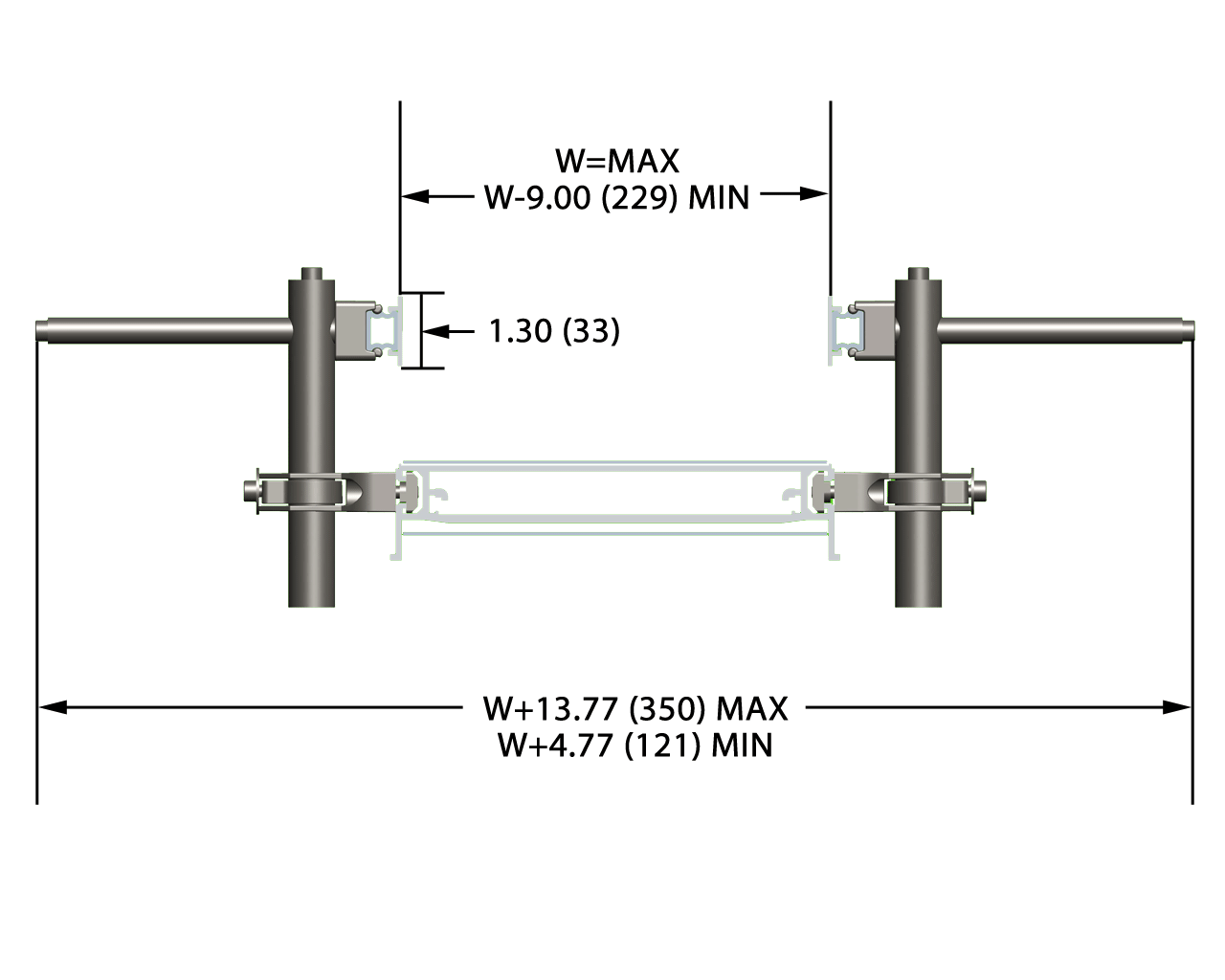

Profile 13: Adjustable Guiding




















, 2200 Series Precision Move Profiles

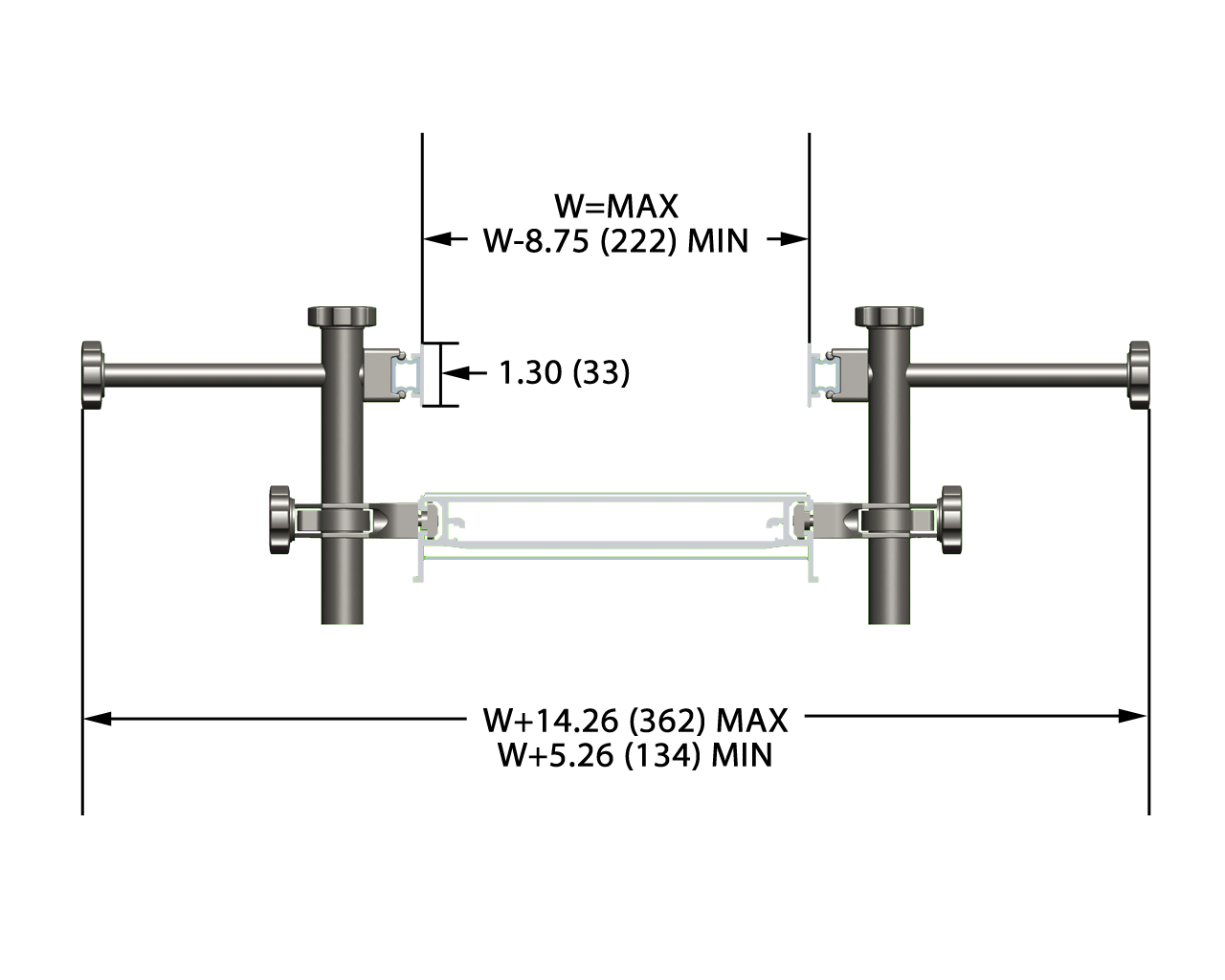

Profile 14: Tool-less Adjustable Guiding




















, 2200 Series Precision Move Profiles

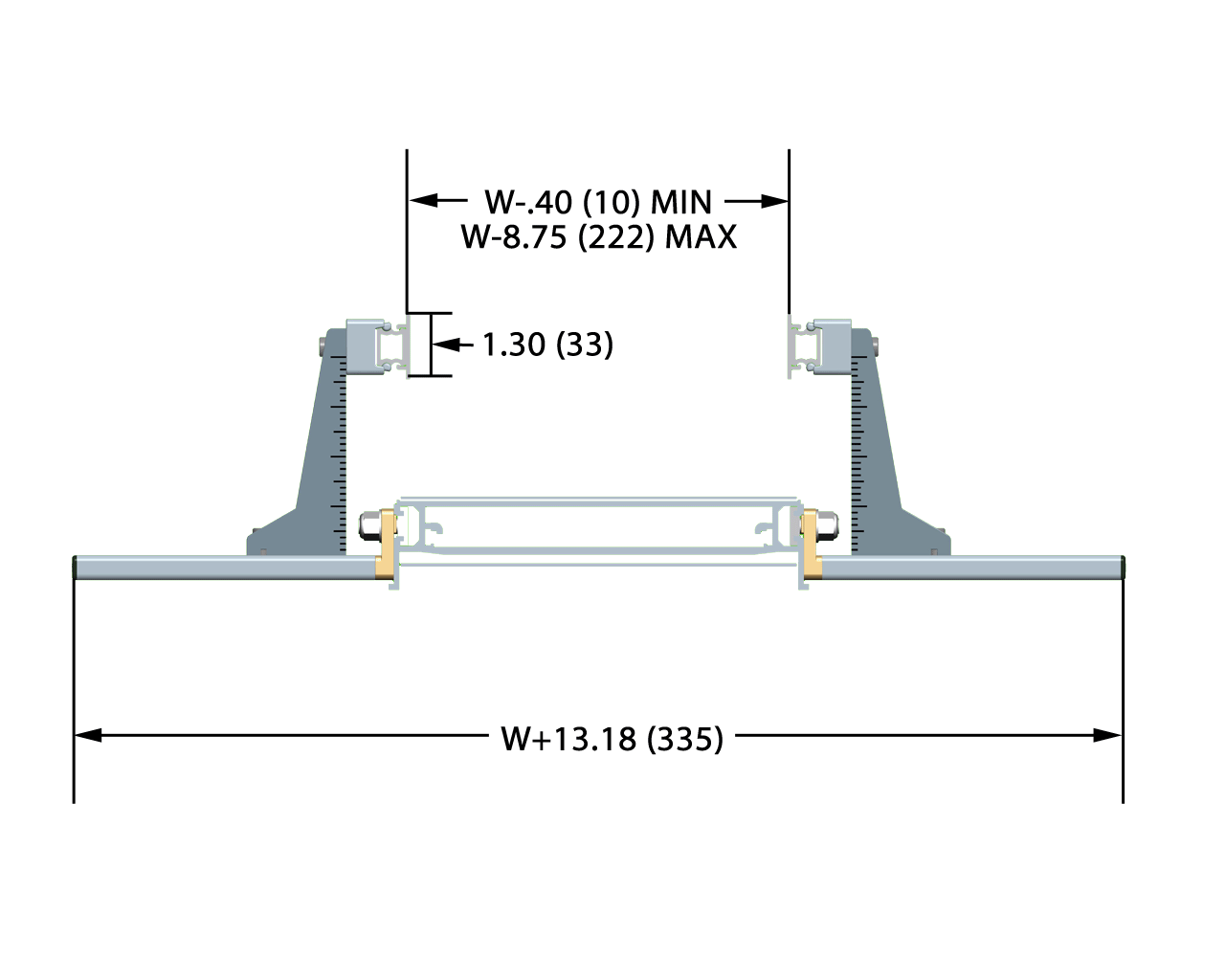

Profile 16: Outboard Adjustable Guiding




















, 2200 Series Precision Move Profiles

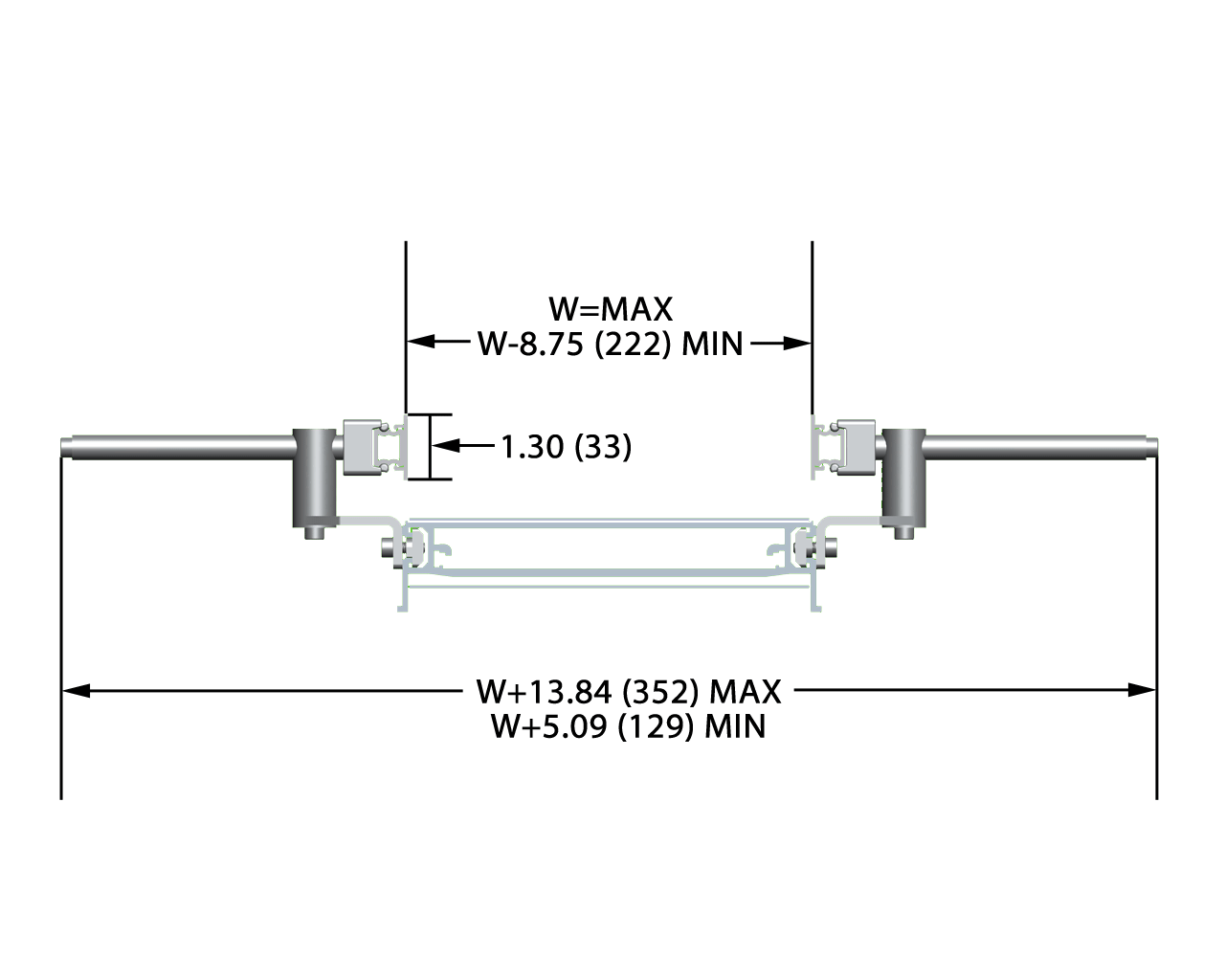

Profile 19: Horizontal Adjustable Guiding




















, 2200 Series Precision Move Profiles

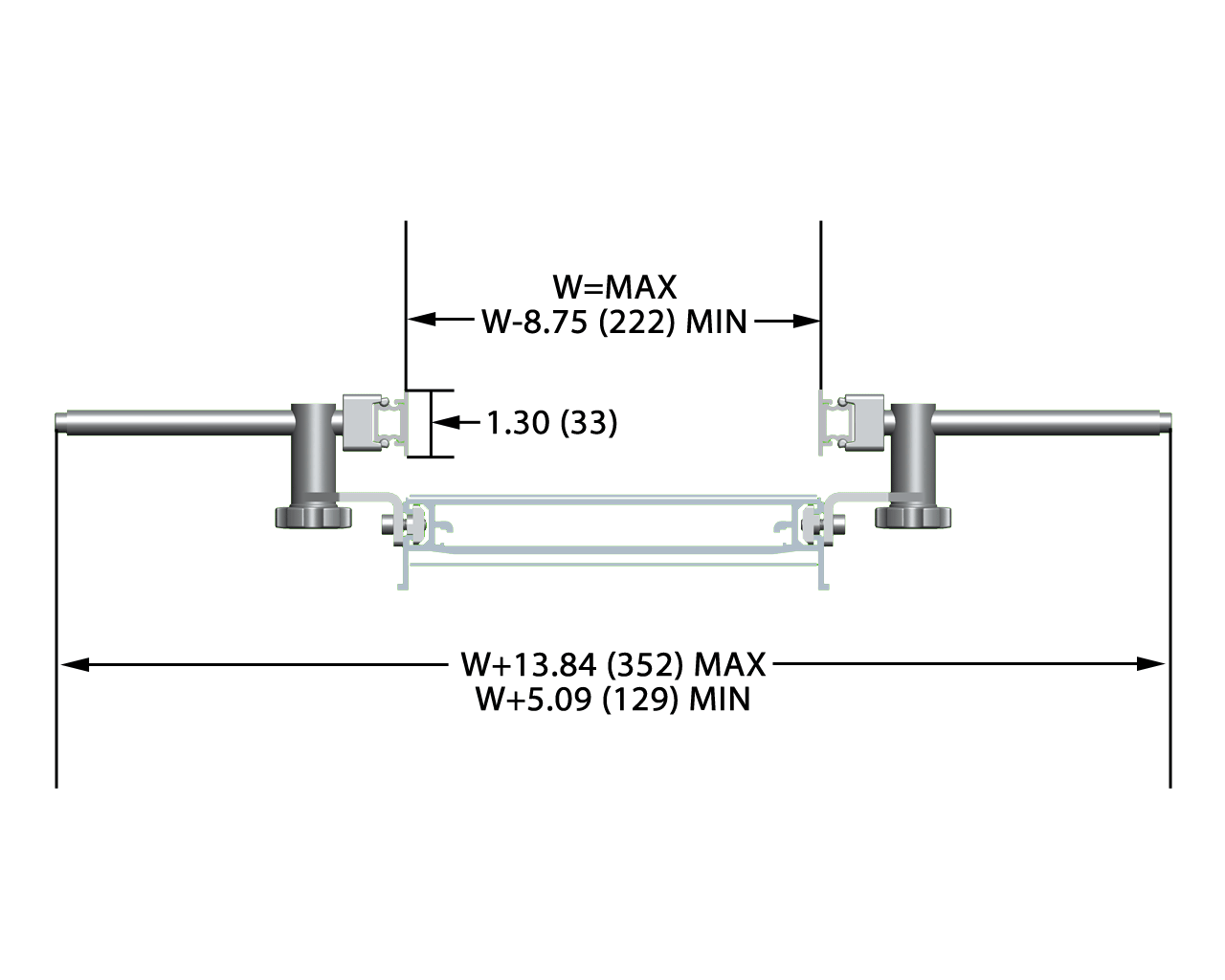

Profile 20: Tool-less Horiz. Adjustable Guiding




















, 2200 Series Precision Move Profiles

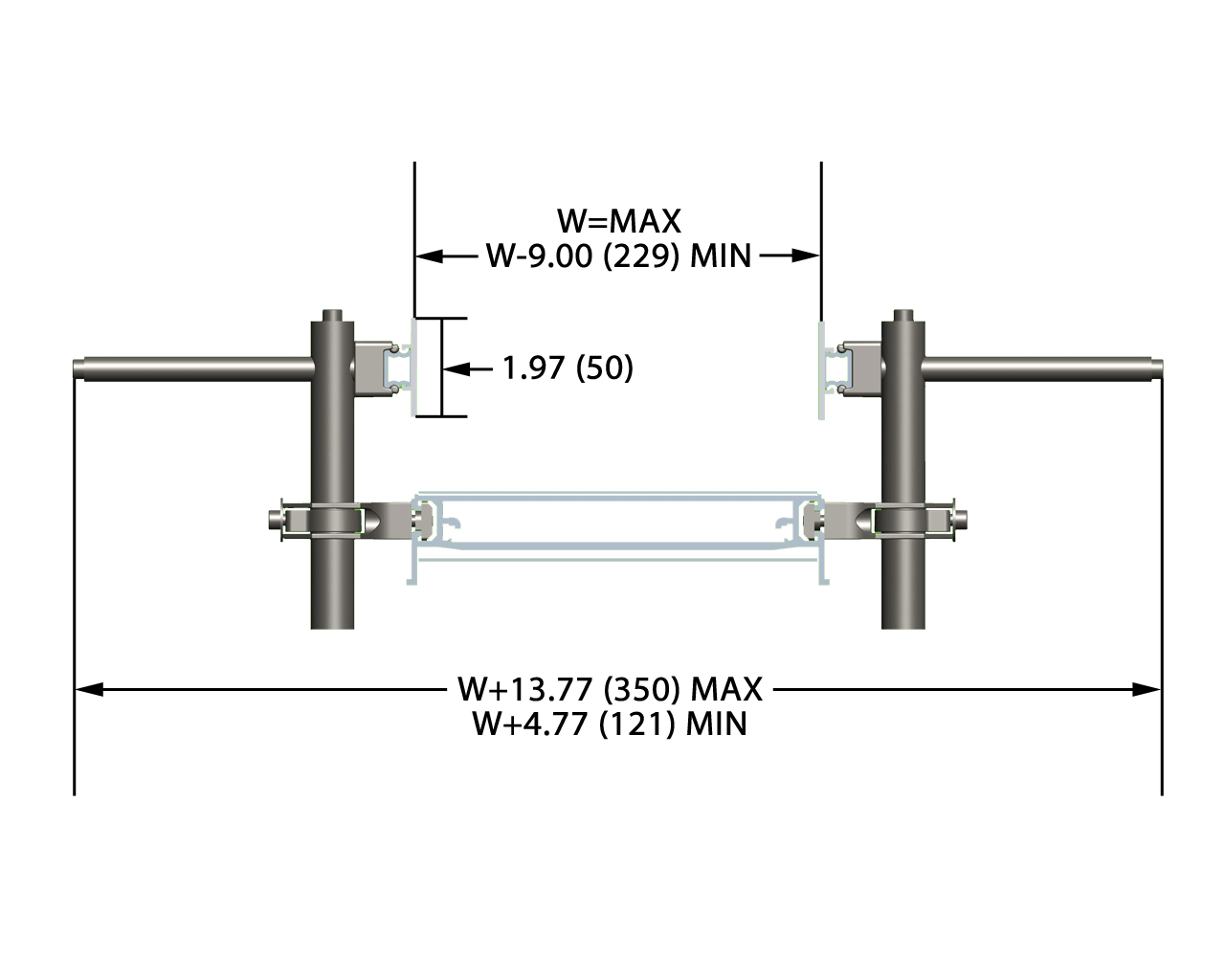

Profile 33: Adjustable Guiding




















, 2200 Series Precision Move Profiles

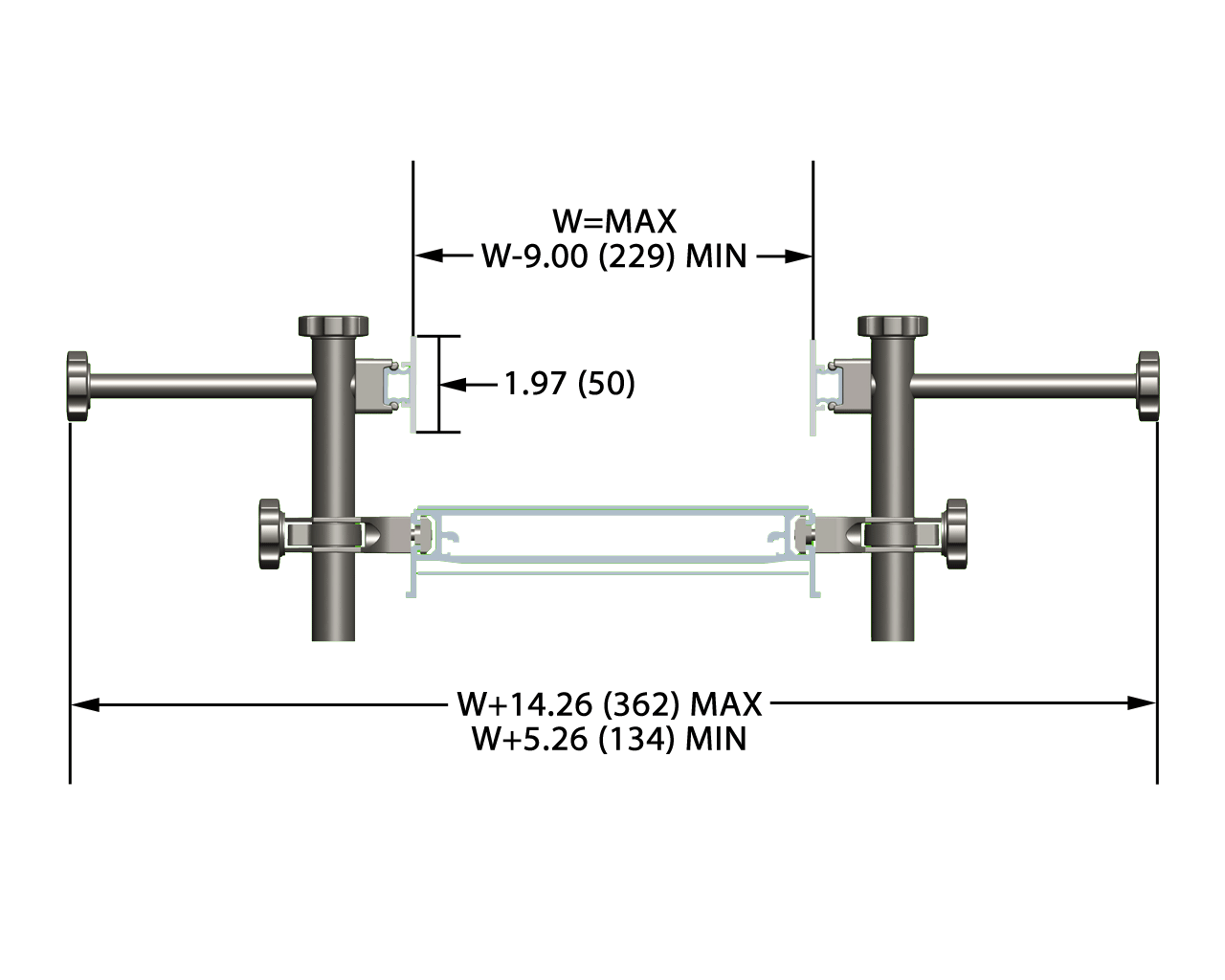

Profile 34: Tool-less Adjustable Guiding




















, 2200 Series Precision Move Profiles

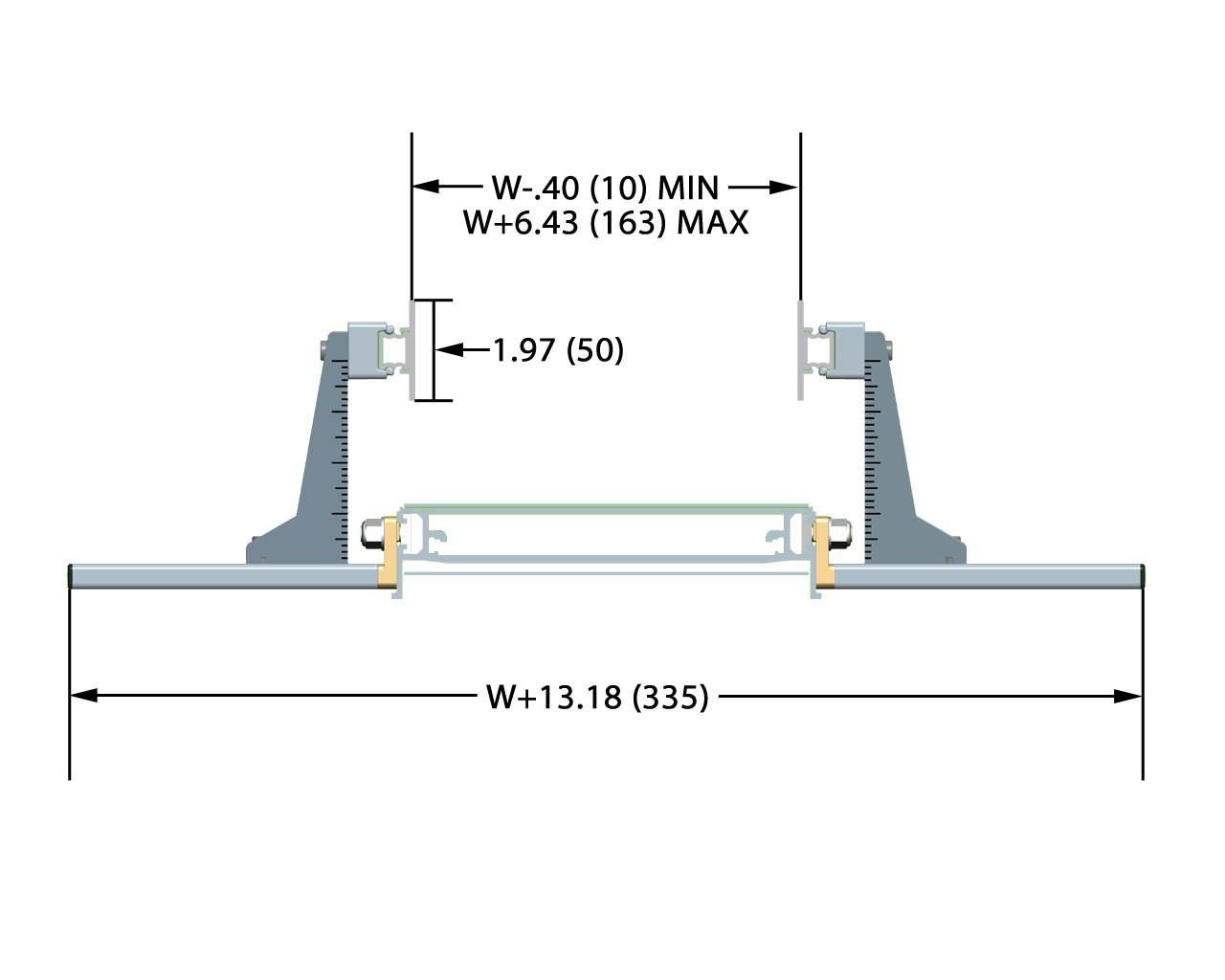

Profile 36: Outboard Adjustable Guiding

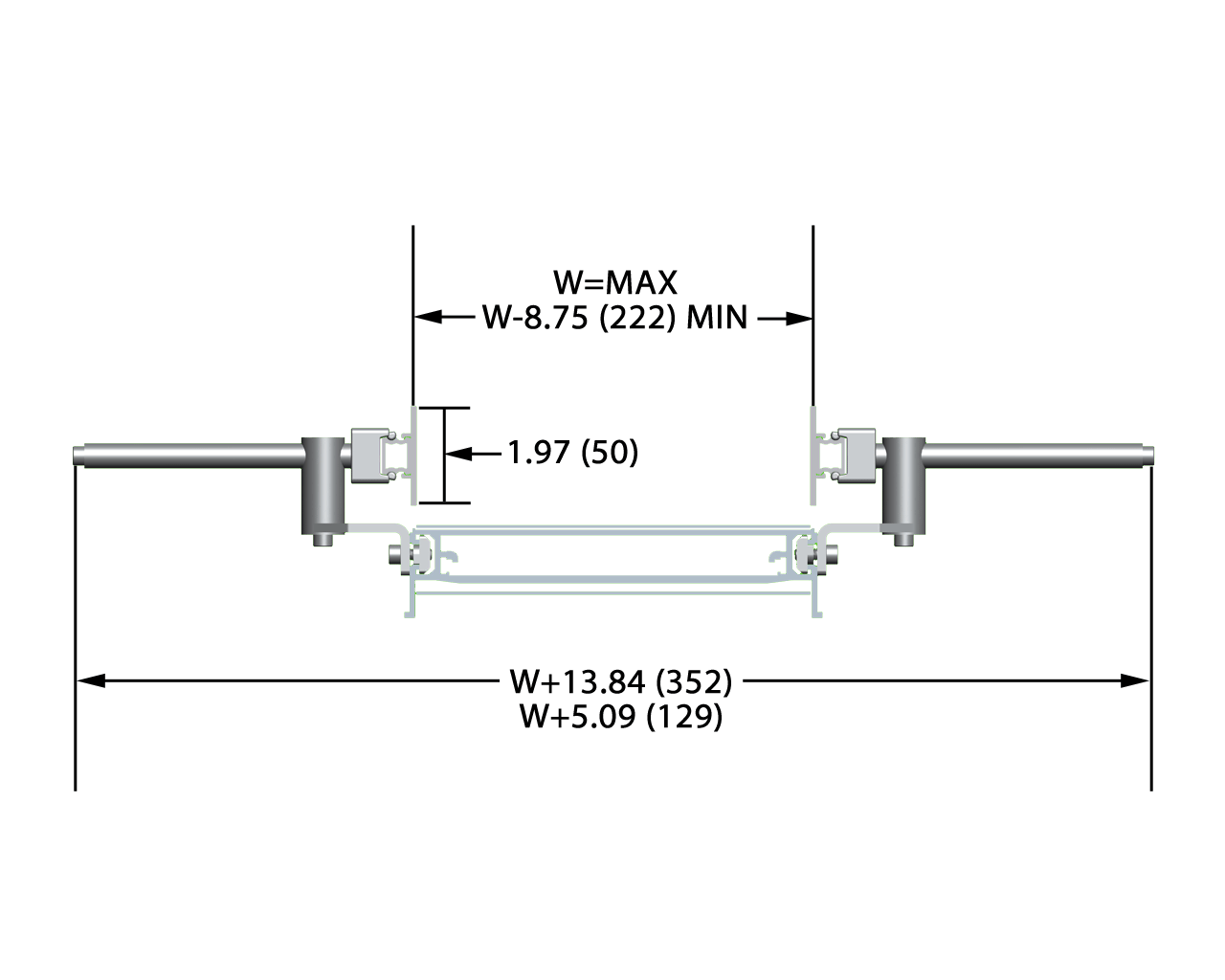

Profile 39: Horizontal Adjustable Guiding, 2200 Series Precision Move Profiles




















, 2200 Series Precision Move Profiles

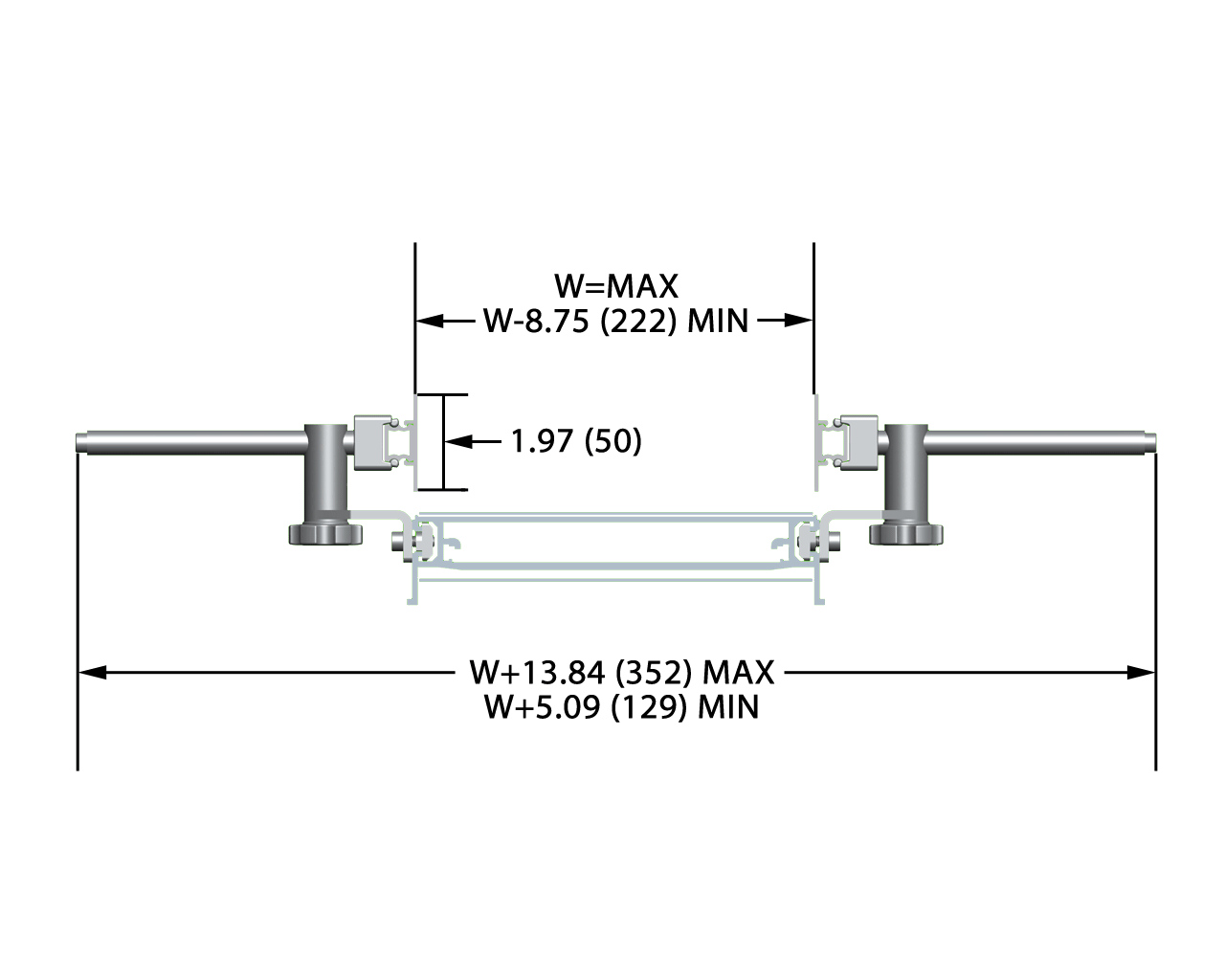

Profile 40: Tool-less Horiz. Adjustable Guiding

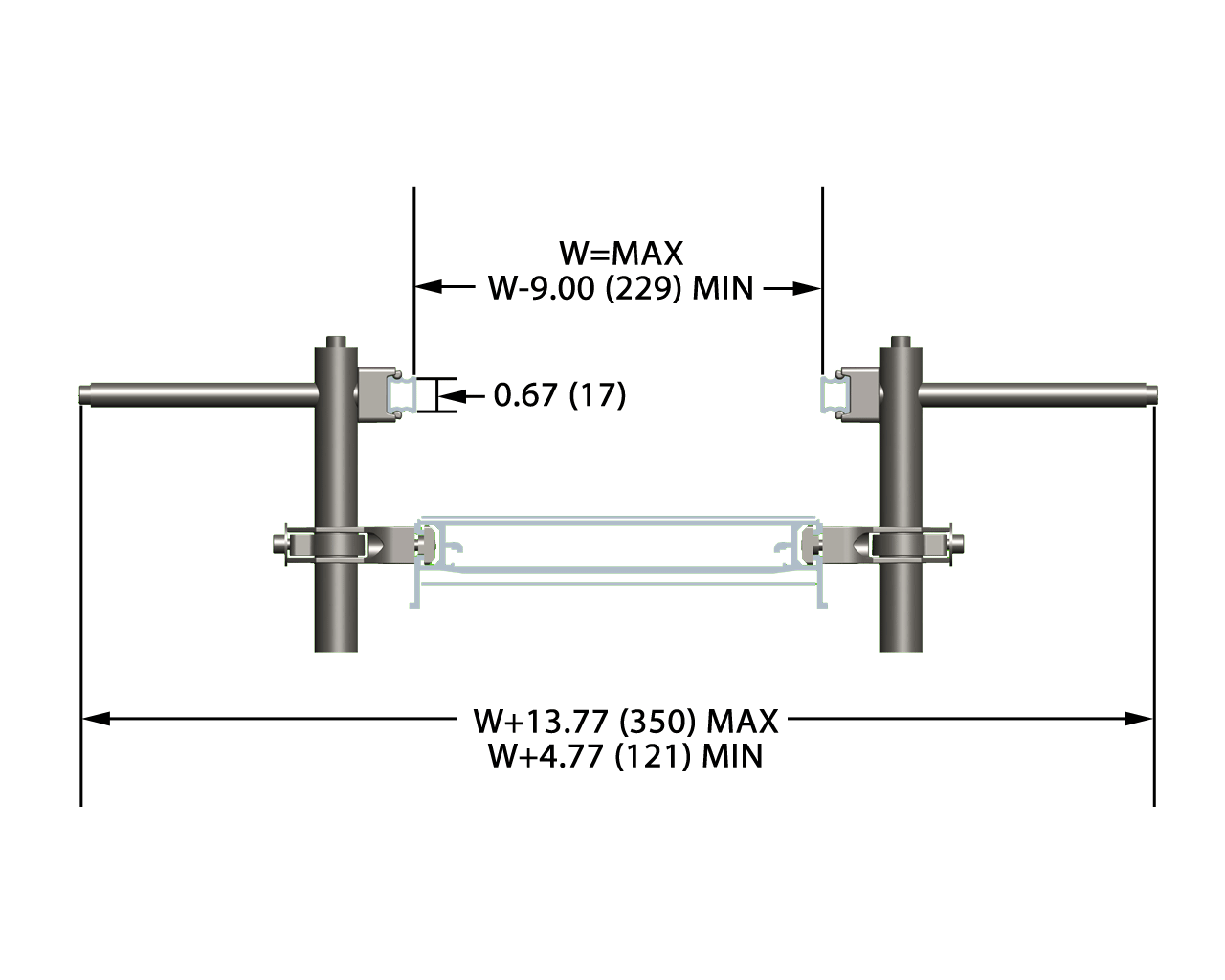

Profile 43: Adjustable Guiding Aluminum Face, 2200 Series Precision Move Profiles

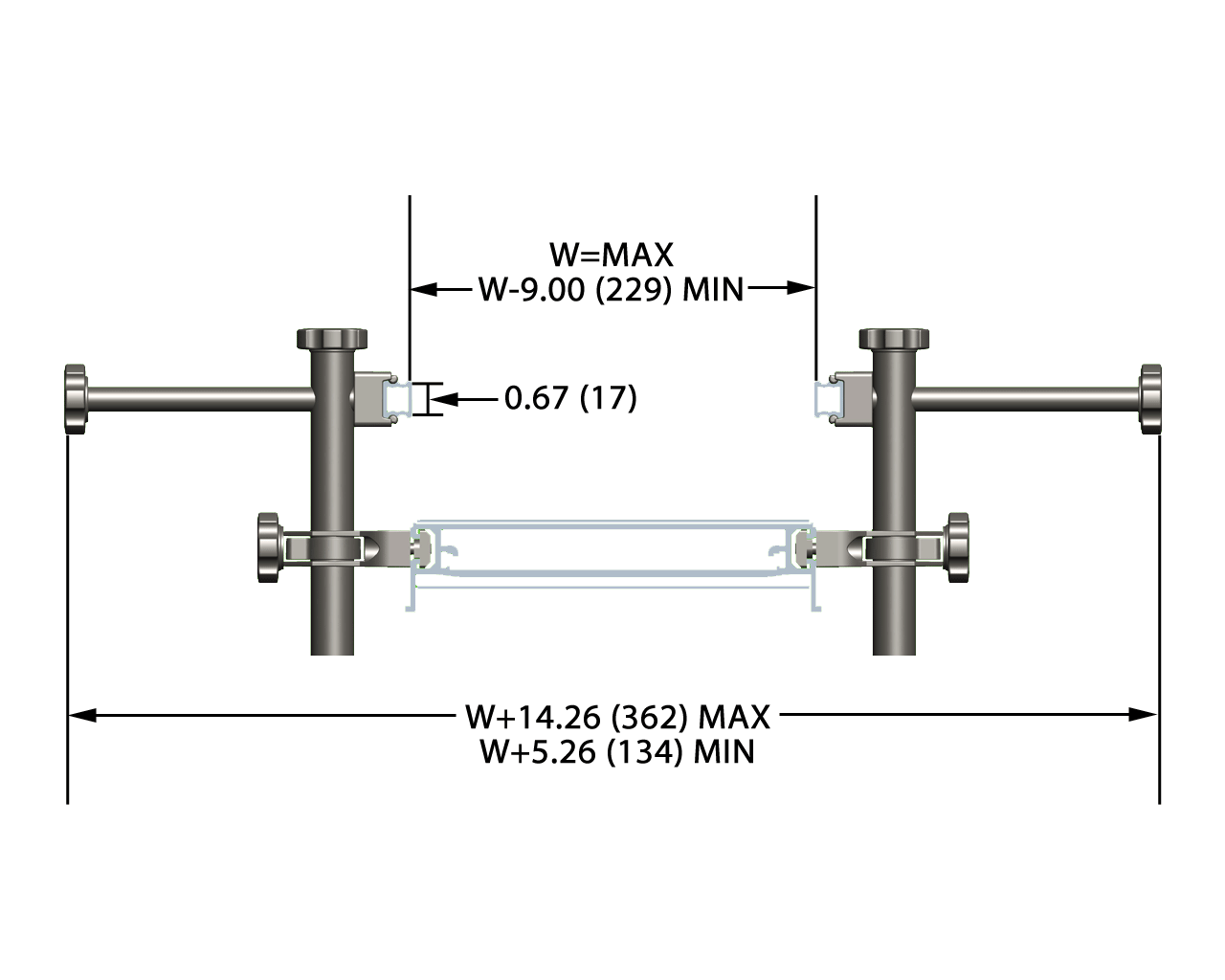

Profile 44: Tool-less Adjustable Guiding Aluminum Face, 2200 Series Precision Move Profiles

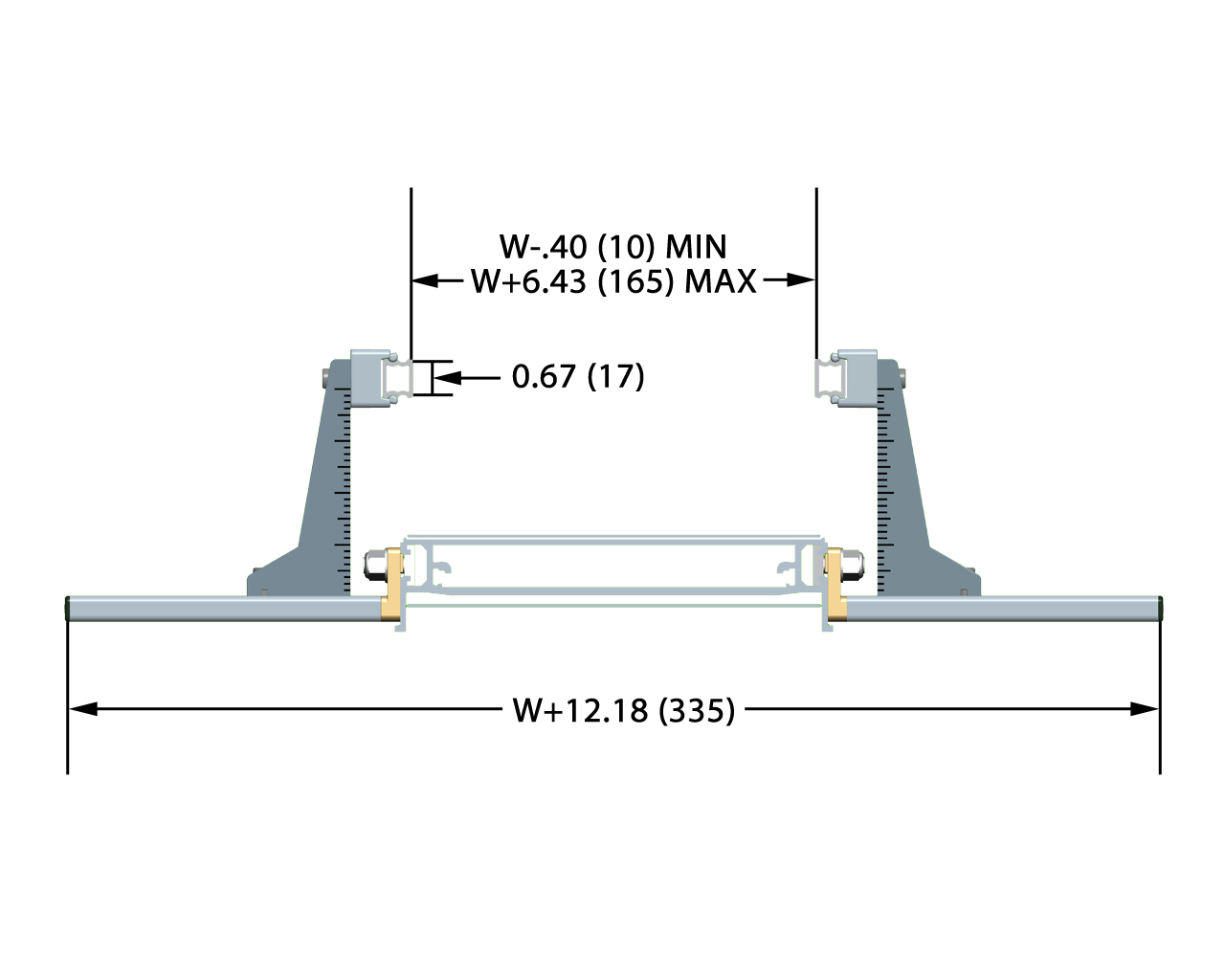

Profile 46: Outboard Adjustable Guiding Aluminum Face, 2200 Series Precision Move Profiles

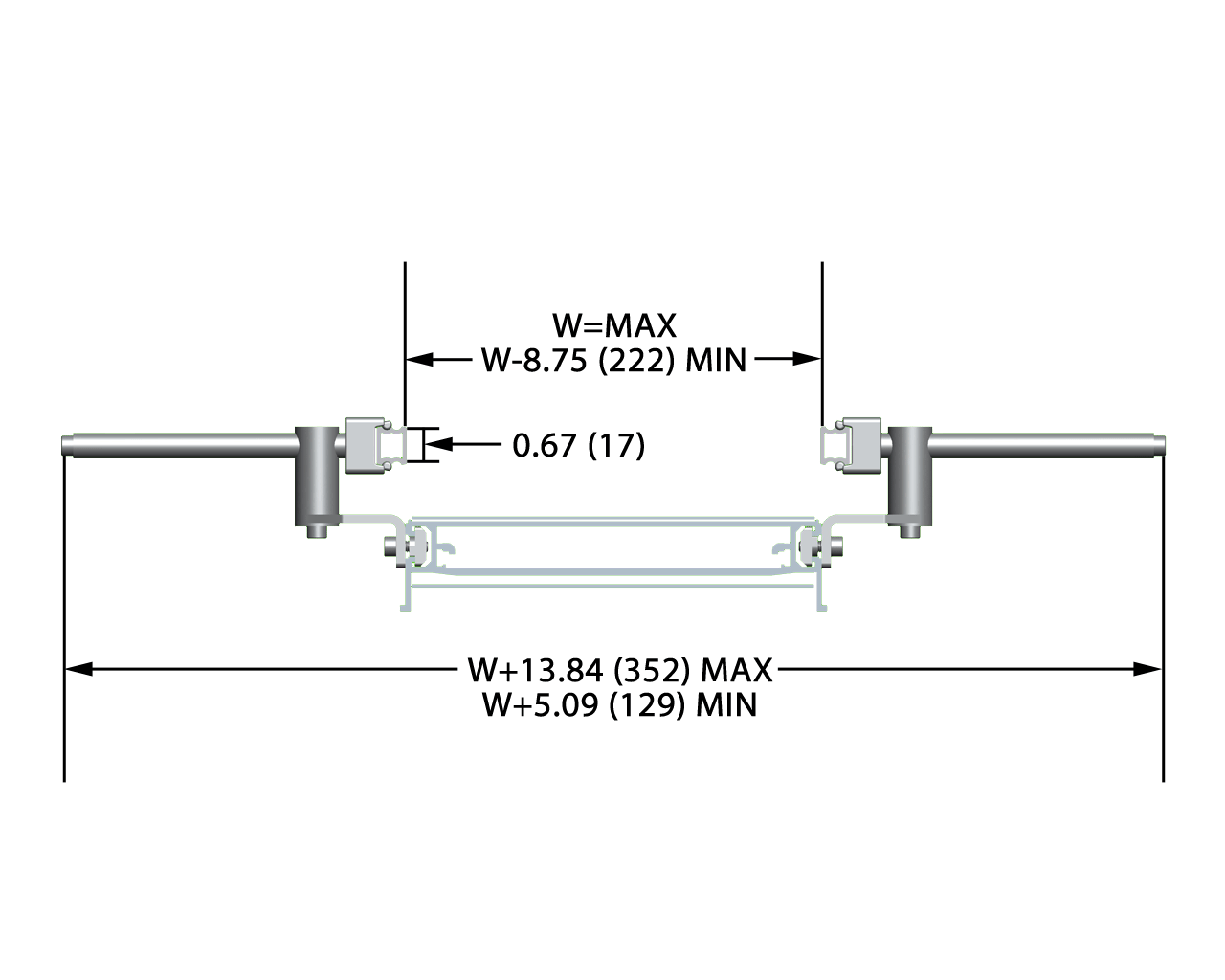

Profile 49: Horizontal Adjustable Guiding Aluminum Face, 2200 Series Precision Move Profiles

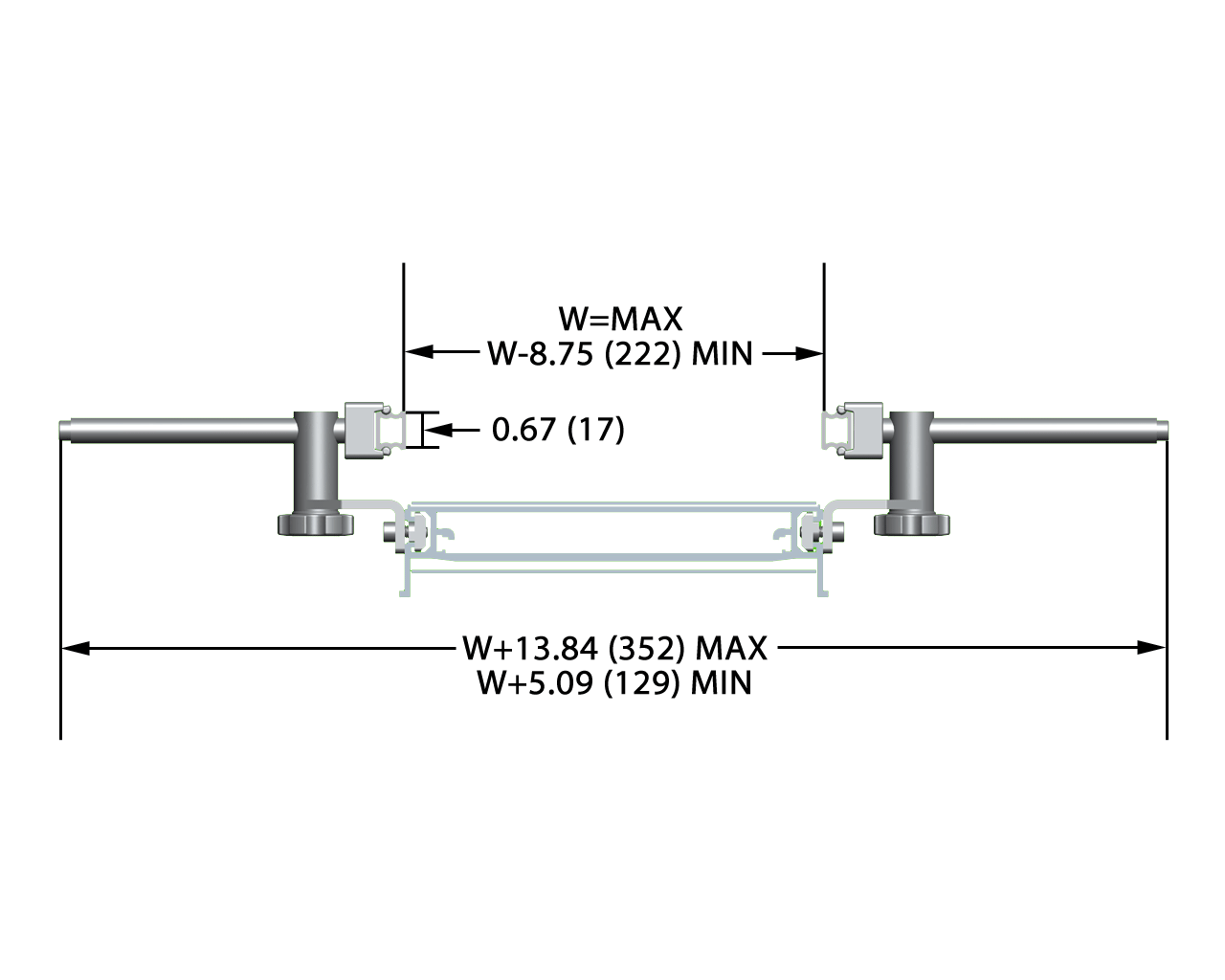

Profile 50: Tool-less Horiz. Adjustable Guiding Aluminum Face, 2200 Series Precision Move Profiles
