W = selected belt width
Flat Modular Belt Conveyor Profiles
Profile 01: Low Side
Straight and Curved
Profile 04: 3″ Aluminum High Side
Straight and Curved
Profile 05: 1.5″ Aluminum High Side
Straight and Curved

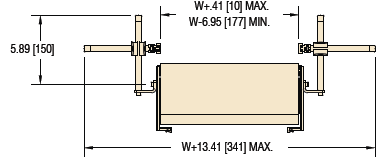

Profile 13: Fully Adjustable
Straight and Curved

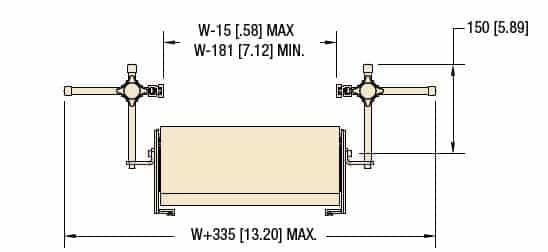

Profile 14: Tool-less Fully Adjustable
Straight and Curved

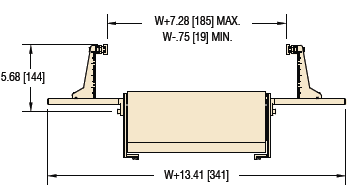

Profile 16: Adjustable Outboard
Straight Only
Profile 24: 4″ Stainless Steel High Side
Straight Only
Profile 26: 6″ Stainless Steel High Side
Straight Only
Cleated Belt Conveyor Profiles – Straight & LPZ
Profile 0: Low Side
Profile 1: 1″ Aluminum High Side
Profile 3: 3″ Aluminum High Side
Profile 5: 4″ Stainless Steel High Side
Profile 6: 6″ Stainless Steel High Side
