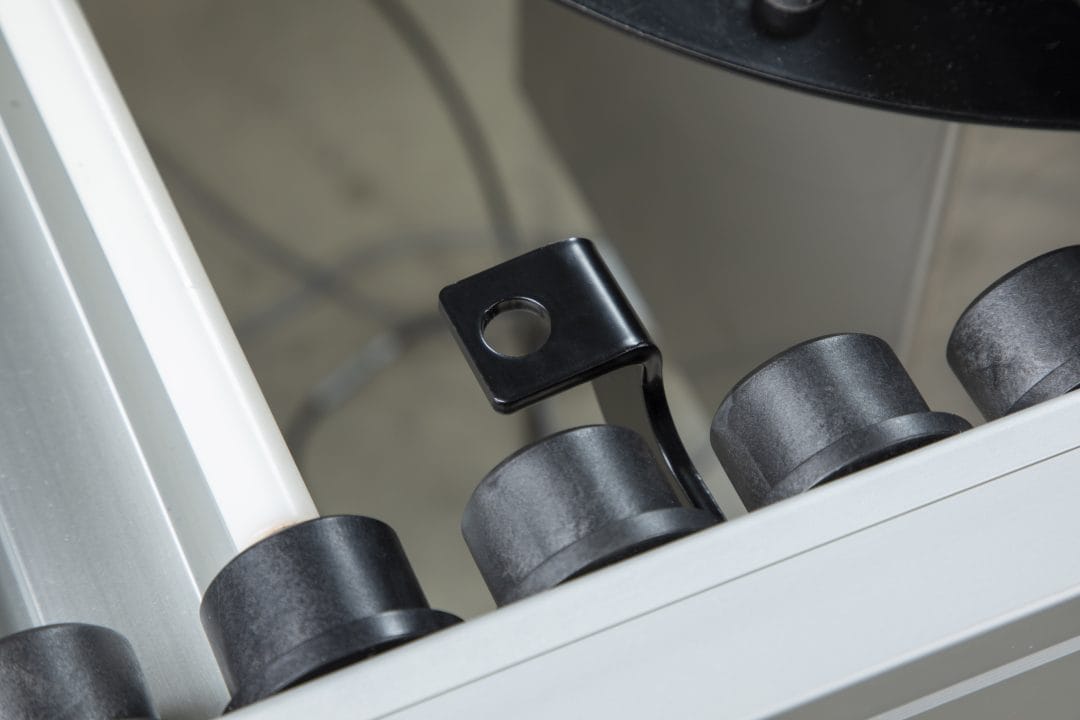

Pallet Sensor Bracket, Sensing

Specifications
  • Standard mounting for 12 mm barrel proximity sensors
  • Sensor faces upward, sensing pallet pick-up on the bottom of pallet
  • Requires a minimum of 25 mm (1 in) long threaded portion on sensor
  • Includes all mounting hardware
  • Proximity sensor with 4 mm minimum sensory range recommended

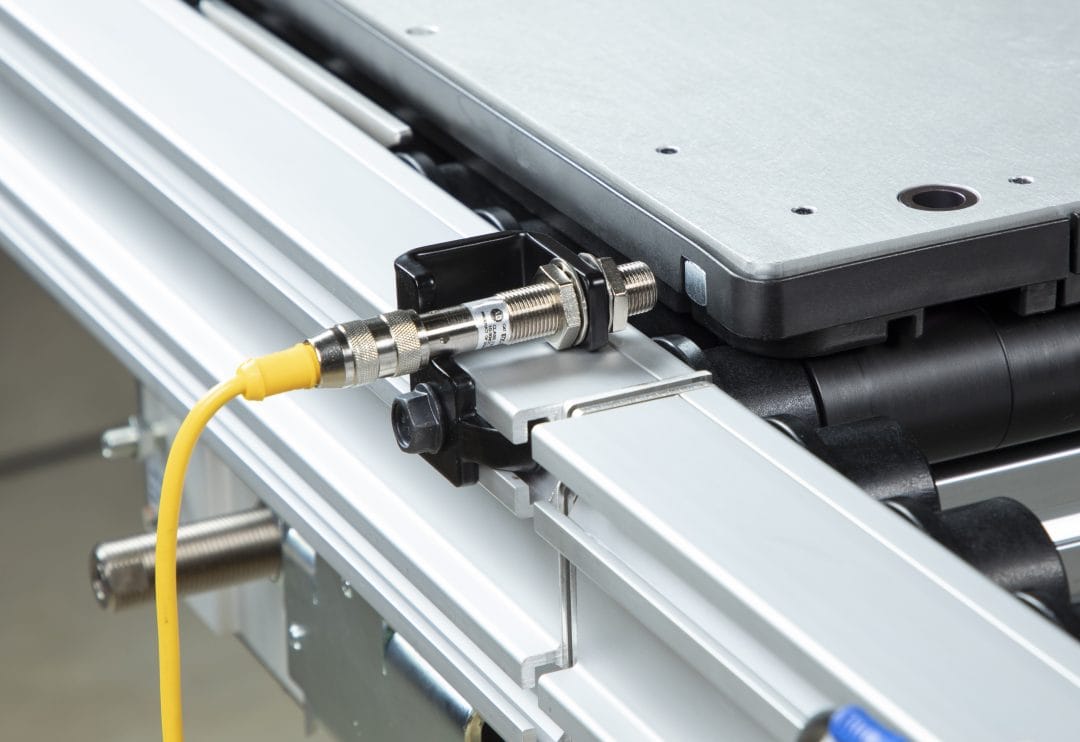

Pallet Sensor Bracket, Side Sensing

Specifications

  • Standard mounting for 12 mm barrel proximity sensors
  • Sensor faces inward, sensing pallet pick-up on outside of pallet
  • Requires a minimum of 25 mm (1 in) long threaded portion on sensor
  • Includes all mounting hardware
  • Proximity sensor with 4 mm minimum sensory range recommended

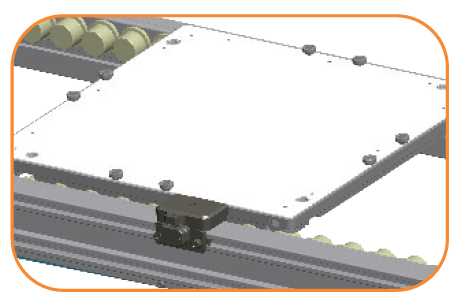

Pallet Sensor Bracket, Rocker

Specifications

  • Guide block contacts pallet to engage proximity switch
  • Used with Left and Transfer
  • Requires a minimum of 25 mm (1 in) long threaded portion on sensor
  • Standard mount for 12 mm barrel proximity sensor
  • Proximity sensor with 4 mm minimum sensory range recommended

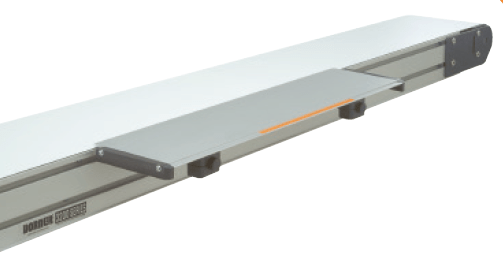

Side Table

Specifications

  • Provides a 152 mm (6 in) or 305 mm (12 in) wide working surface
  • Adjusts in/out and up/down
  • Can be positioned anywhere along the conveyor
  • Anodized aluminum work surface
  • Max load: 6 kg/m (5 lbs/ft). Use Adjustable Tie Brackets for added capacity
  • Available in 305 mm (1 ft) increments from 305 to 30,175 mm (1 to 99 ft)

T-Slot Accessories

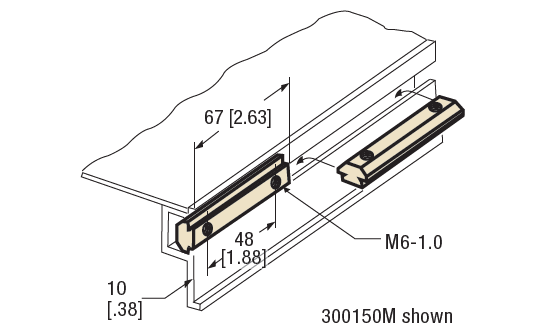

T-Bars

  • Mounts in T-Slot to attach heavy accessories
  • Fits conveyor and stands

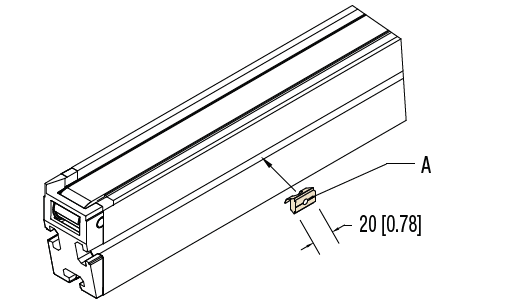

Spring Nuts

  • For mounting accessories to conveyor
  • Spring retains position in T-Slot
  • 20 mm (0.78 in) long

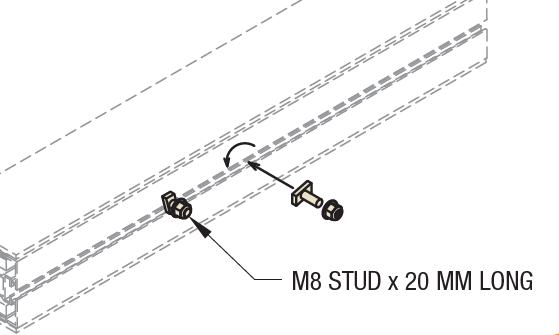

T-Bolt Hardware

  • For mounting accessories to conveyor
  • Twist in T-Bolt for mounting accessories
  • M8-1.25 male threaded post
  • (2) lengths available; 20 mm long and 35 mm long
  • 20mm long used to mount up to 0.25 in plate thickness
  • 35mm long used to mount up to 0.85 in plate thickness
  • Provided in a package of 5 T-Bolts and flanged locknuts

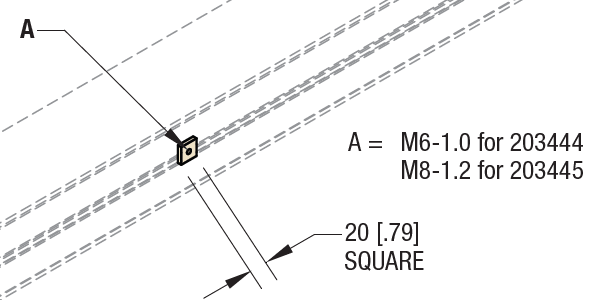

Slide in Square Nuts

  • For mounting accessories to conveyor
  • Must be slid in at section break
  • (2) thread sizes available: M6-1.0 or M8-1.25
  • Provided in a package of 5 nuts

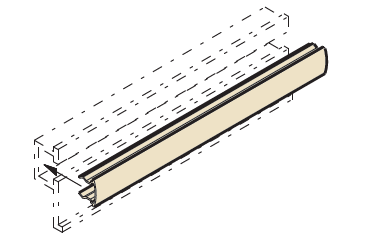

T-Slot Cover

  • Snaps into conveyor and aluminum stand T-Slots
  • Black plastic extrusion
  • Can be trimmed to fit
