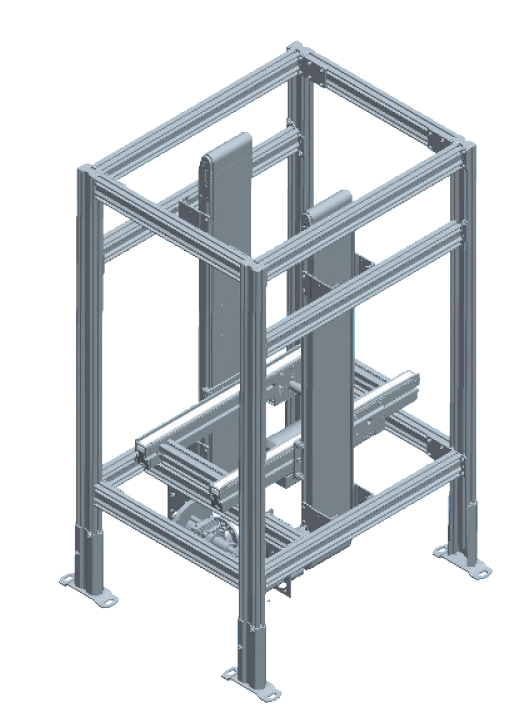

Vertical Transfer Unit (Elevator)

, Engineered Solutions
, Engineered Solutions

Vertical Transfer Units raise or lower a pallet between two different levels allowing for over/under layouts or transferring pallets over aisles

  • Includes Precision Move conveyor to shuttle pallets in and out of the Vertical Transfer Unit
  • Transfers standard and custom pallet sizes
  • Up to 91 kg (200 lbs) lift capacity
  • Minimum Height TOB: 305 mm (12 in)
  • Maximum height TOB 3050 mm (120 in)
  • Transfer one or more pallet(s) per cycle
  • AC VFD rated gearmotor driven lift and shuttle
  • Includes Lexan guarding
  • Includes proximity sensor brackets for pallet and lift position detection
  • Available as a complete package including automation controls

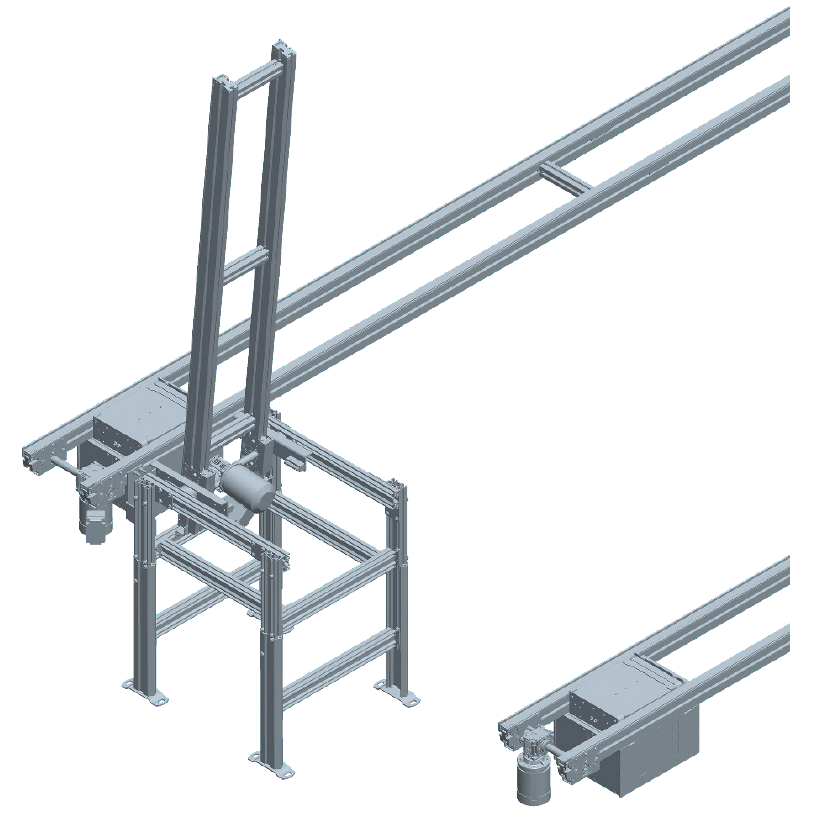

Lift Gate

, Engineered Solutions

A manually raised and lowered conveyor section to allow access to the conveyor line

  • Available for standard and custom pallet sizes
  • Gas spring-controlled pivot mechanism
  • Vertical stop position
  • Aluminum support structure with T-slot construction and± 50 mm (2 in) adjustability
  • Must be bolted to the floor
