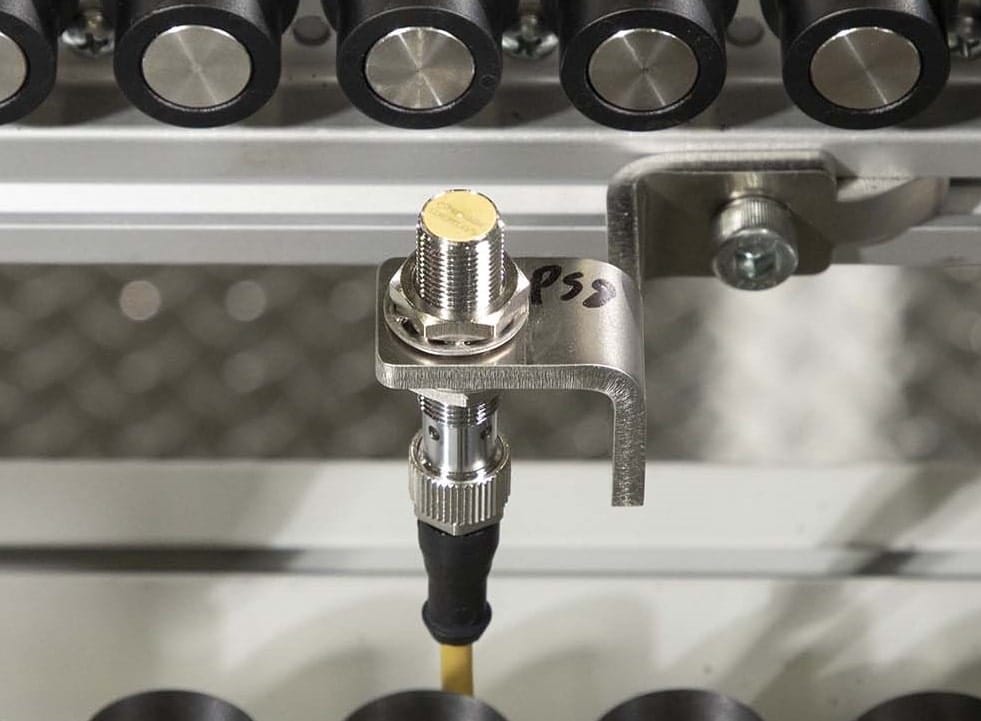

Pallet Sensor Bracket, Sensing

, Accessories
, Accessories
Specifications
  • Standard mounting for 12 mm barrel proximity sensors
  • Sensor faces upward, sensing pallet pick-up on the bottom of pallet
  • Requires a minimum of 25 mm (1 in) long threaded portion on sensor
  • Includes all mounting hardware
  • Proximity sensor with 4 mm minimum sensory range recommended

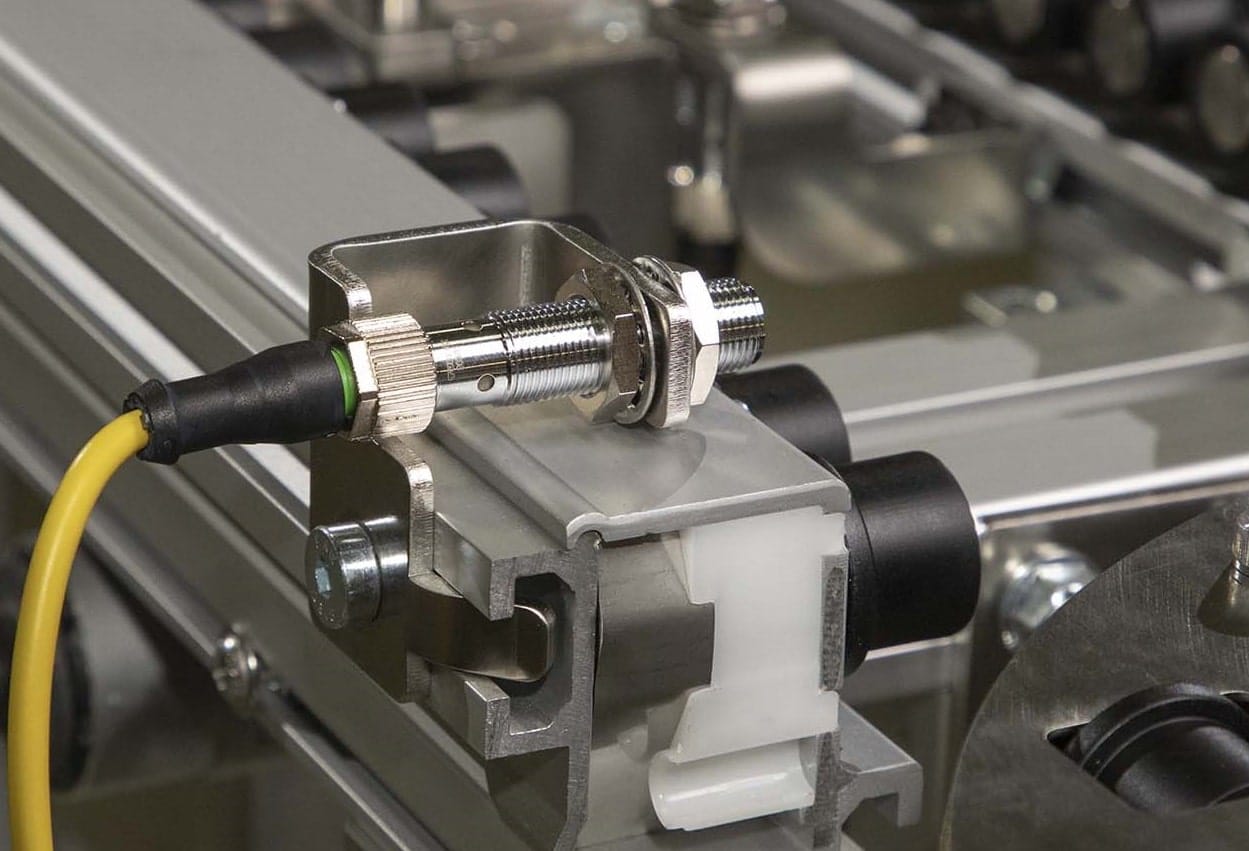

Pallet Sensor Bracket, Side Sensing

, Accessories

Specifications

  • Standard mounting for 12 mm barrel proximity sensors
  • Sensor faces inward, sensing pallet pick-up on outside of pallet
  • Requires a minimum of 25 mm (1 in) long threaded portion on sensor
  • Includes all mounting hardware
  • Proximity sensor with 4 mm minimum sensory range recommended

T-Slot Accessories

, Accessories

T-Bars

  • Mounts in T-Slot to attach heavy accessories
  • Fits conveyor and stands
, Accessories

Spring Nuts

  • For mounting accessories to conveyor
  • Spring retains position in T-Slot
  • 20 mm (0.78 in) long
, Accessories

T-Bolt Hardware

  • For mounting accessories to conveyor
  • Twist in T-Bolt for mounting accessories
  • M8-1.25 male threaded post
  • (2) lengths available; 20 mm long and 35 mm long
  • 20mm long used to mount up to 0.25 in plate thickness
  • 35mm long used to mount up to 0.85 in plate thickness
  • Provided in a package of 5 T-Bolts and flanged locknuts
, Accessories

Slide in Square Nuts

  • For mounting accessories to conveyor
  • Must be slid in at section break
  • (2) thread sizes available: M6-1.0 or M8-1.25
  • Provided in a package of 5 nuts
, Accessories

T-Slot Cover

  • Snaps into conveyor and aluminum stand T-Slots
  • Black plastic extrusion
  • Can be trimmed to fit
