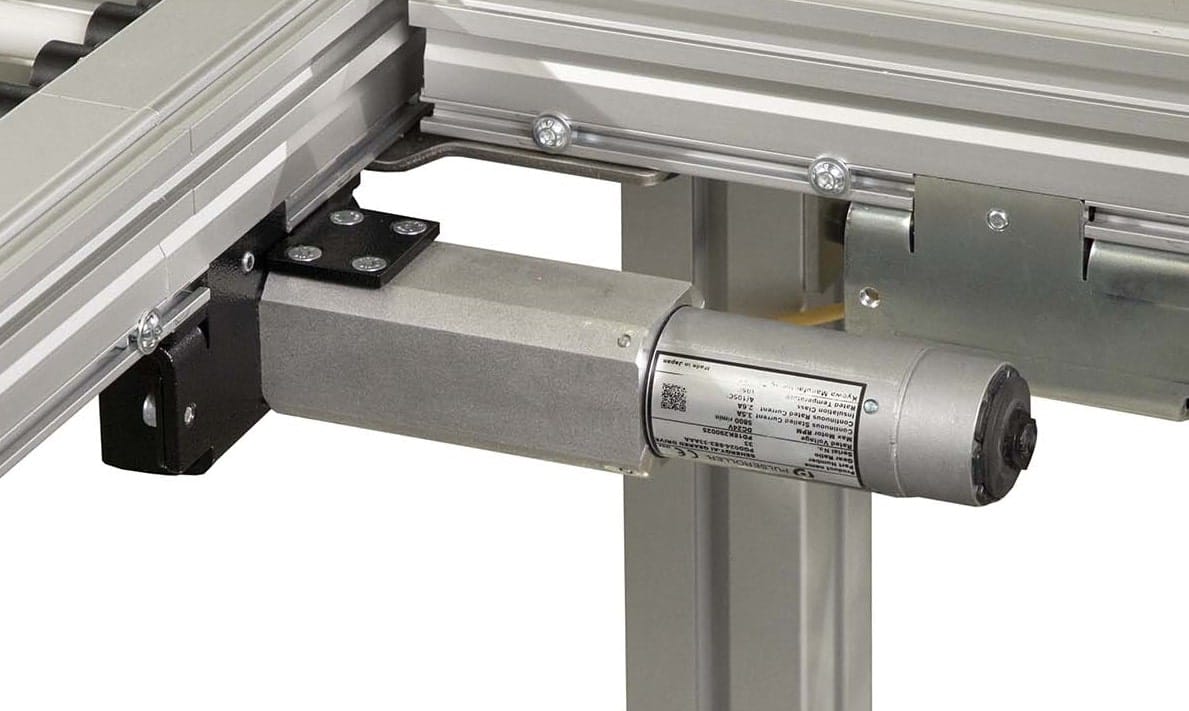

Gearmotors
Specifications
- Brushless DC Gearmotor
- 50 watt
- 24 VDC
- IP 54 ingress rating
- Aluminum body, steel shaft
- Certifications
- ETL/UL certified
- CE certified
- RoHS and REACH compliant
- Temperature rating: -10º to 40º C (14º to 104º F)
- M8-4 Pin connector with 1 m long cable
Controllers
Specifications
- Brushless DC Ethernet motor control
- Control can be used as motor drive and/or remote I/O
- Controls up to 2 gearmotors
- Controls up to 4 inputs
- Built in zero pressure accumulation logic for zoning applications
- ConveyLINX software is used to set up controller and adjust control parameters
- IP 54 ingress rating
- Certifications
- UL recognized to UL/eUL standard 61800-5-1
- CAN.CSA to standards: C22.2 NO.61010-1
- CE certified
- RoHS and REACH compliant
- Connectivity
- Ethernet IP
- Modbus TCP
- PROFINET
High Voltage Power Supplies
Specifications
- Provides 24 VDC power to gearmotor controllers
- 20 AMP output can power up to 4 controllers
- Recomended to be placed near controller on conveyor line
- IP66 painted steel enclosure
- Panel mounted pull-to-release on/off button with indicator light
- See page 30 for low voltage cable to controllers
- High voltage wiring by customer
