• Brushless DC Gearmotor
  • 50 watt
  • 24 VDC
  • IP 54 ingress rating
  • Aluminum body, steel shaft
  • Certifications
    • ETL/UL certified
    • CE certified
    • RoHS and REACH compliant
  • Temperature rating: -10º to 40º C (14º to 104º F)
  • M8-4 Pin connector with 1 m long cable

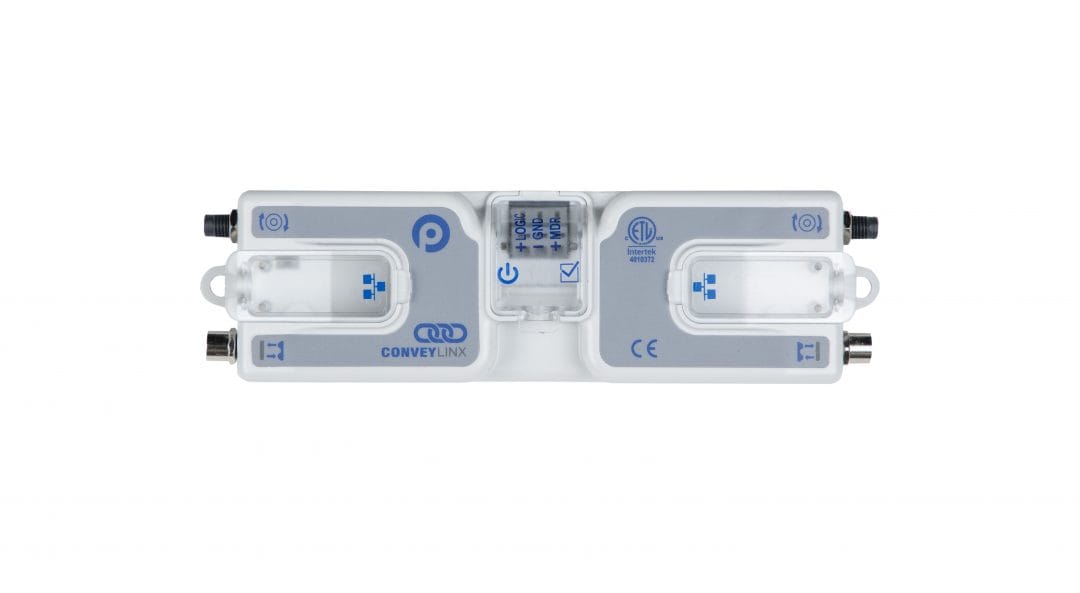

  • Brushless DC Ethernet motor control
  • Control can be used as motor drive and/or remote I/O
  • Controls up to 2 gearmotors
  • Controls up to 4 inputs
  • Built in zero pressure accumulation logic for zoning applications
  • ConveyLINX software is used to set up controller and adjust control parameters
  • IP 54 ingress rating
  • Certifications
    • UL recognized to UL/eUL standard 61800-5-1
    • CAN.CSA to standards: C22.2 NO.61010-1
    • CE certified
    • RoHS and REACH compliant
  • Connectivity
    • Ethernet IP
    • Modbus TCP

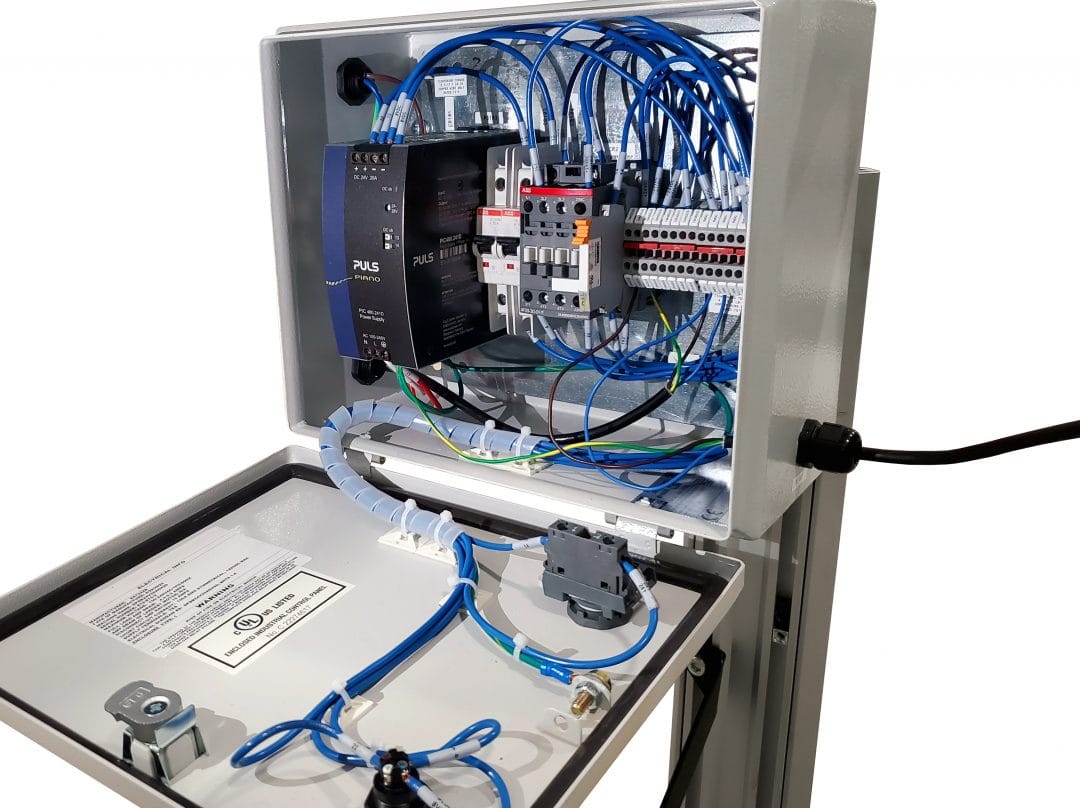

High Voltage Power Supplies


  • Provides 24 VDC power to gearmotor controllers
  • 20 AMP output can power up to 4 controllers
  • Recomended to be placed near controller on conveyor line

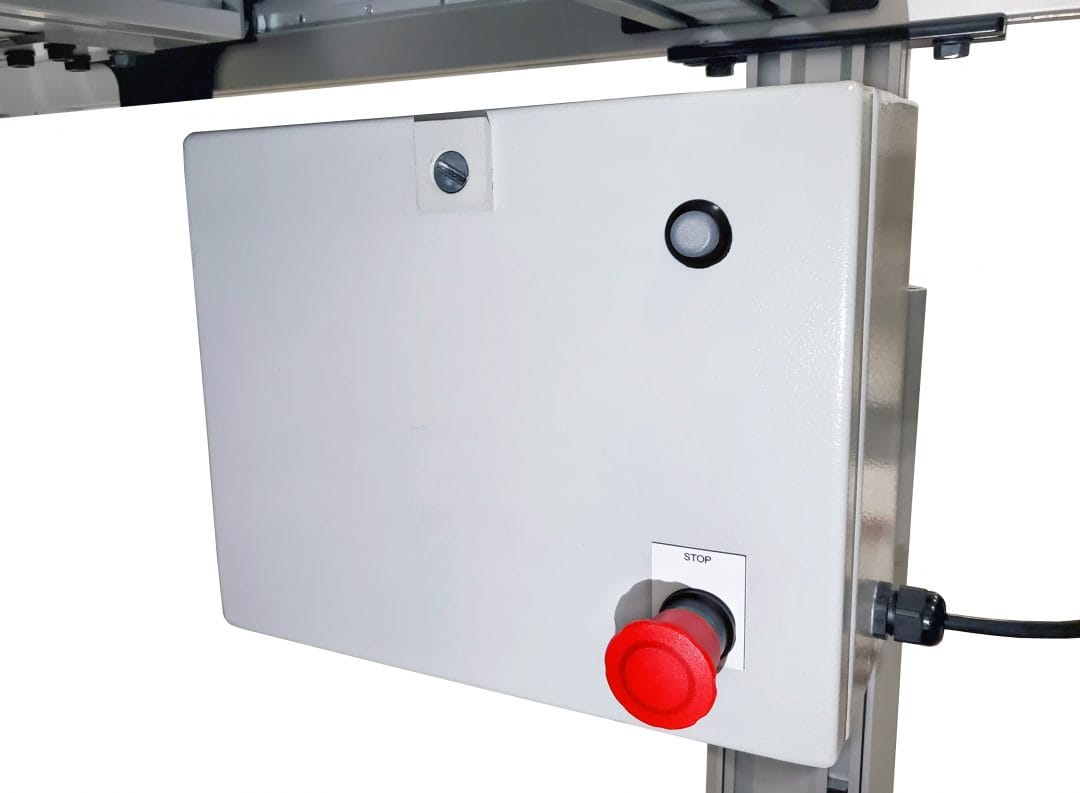

  • IP66 painted steel enclosure
  • Panel mounted pull-to-release on/off button with indicator light
  • See page 30 for low voltage cable to controllers
  • High voltage wiring by customer
