Fixed Height Support Stands

Specifications
  • 210 mm (8.27 in) minimum TOB height
  • 1970 mm (77.6 in) maximum TOB height
  • Aluminum construction with T-Slot mounting for bolt on accessories and structure
  • Adjustment range is dependent on stand height. All stands 345 mm (13.6 in) and taller have a minimum of ±50 mm (2 in) of adjustment

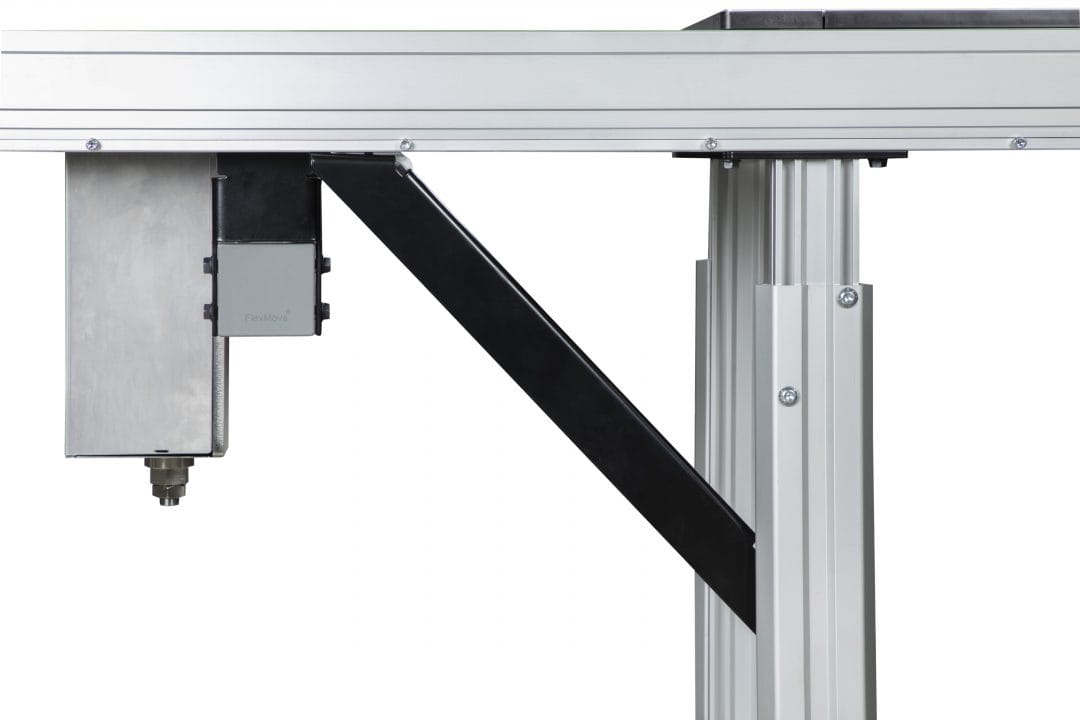

  • Optional diagonal brace

Support Post

Specifications

  • Single support post to provide extra support or stability to conveyors and automation modules
  • Aluminum extruded construction with t-slot mounting
  • ±50 mm (2 in) adjustment range
  • Minimum top of roller height depends on the device mounting to
  • From top of roller height subtract the following to determine support post height
    • ERT 250 Conveyor = 93 mm
    • Curve Conveyor = 93 mm
    • All Automation Modules = 310 mm

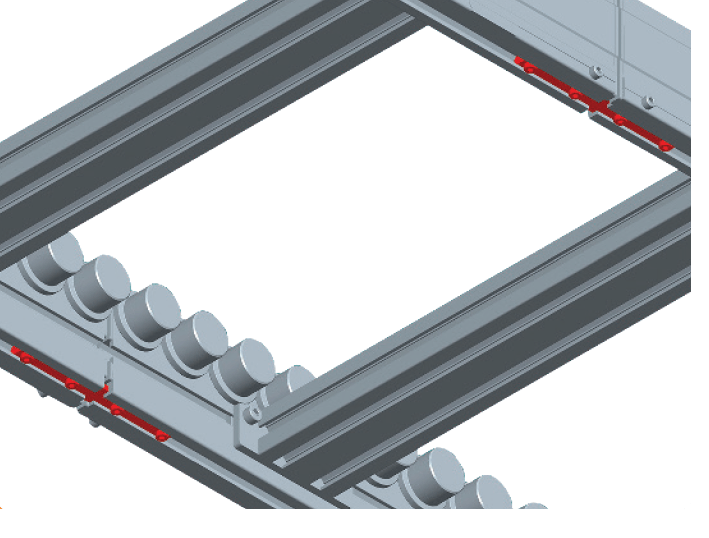

Conveyor Tie Bracket

Specifications

  • Tie bracket for connecting conveyors inline
  • Can be used in bottom or inside T-Slot. Do not use on cover T-Slot.
  • Includes a pair of tie plate assemblies
  • Includes all mounting hardware

Conveyor Tie Bracket

Specifications

  • For use on ERT250 aluminum support stands
  • Provides additional stability for large and heavy pallet applications
  • Metric fastener mounting hardware included
  • Minimum conveyor top of roller = 510 mm (20 in)
  • One brace per stand for conveyors up to 480 mm
  • Two braces per stand for conveyors over 480 m
