AquaPruf Support Stands



Support Stands            Ceiling Supports           Floor Anchors



Support Stands

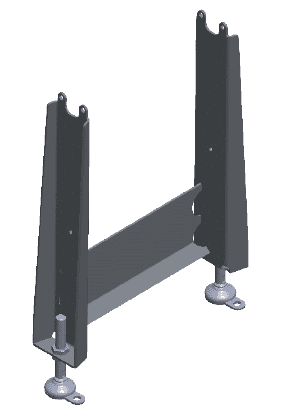

 Fixed Height Stands
  • Welded open frame Stainless Steel construction with a Brushed #4 finish
  • Fixed angle connection matching conveyor layout from Ø to 60 degrees
  • For 152 mm (6 in) to 1219 mm (48 in) widths
  • ± 51 mm (2 in) of adjustment
  • Optional:
    • Swivel locking caster
    • Optional diagonal brace for added stability
    • Optional 3A approved threadless foot and casters

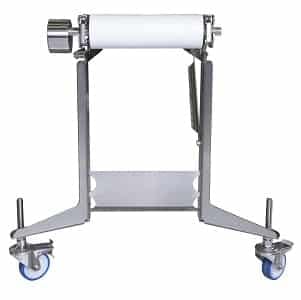

Outriggers
  • Fixed height support stands are available with outriggers
  • Outriggers provide added support for tall applications
  • Welded Stainless Steel construction with Brushed #4 finish
  • Extend stand width 316 mm (12.43 in)

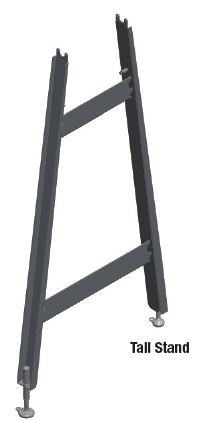

Tall Support Stands
  • Welded open frame Stainless Steel construction brushed to #4 finish
  • ±50 mm (2 in) of adjustment
  • Fixed angle connection matching conveyor layout from Ø to 60 degrees
  • Includes diagonal brace for stability
  • Tall Support Stands require the use of floor anchors

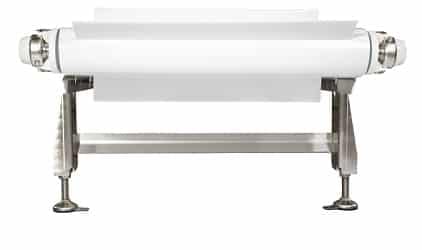

Low Height Support Stands
  • All components are Stainless Steel brushed to #4 finish
  • ±51 mm (2 in) of adjustment
  • Fixed Foot self-aligns 10° for sloped floors
  • Caster is swivel locking
  • Horizontal conveyor mounts only
  • Optional 3A approved threadless foot and casters









Ceiling Stands

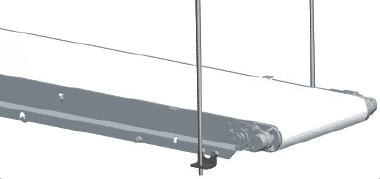

Horizontal Ceiling Supports
  • All components are Stainless Steel brushed to #4 finish
  • Includes a pair of mounting brackets and hardware for support on both sides of conveyor
  • Compatible with 12 mm (0.5 in) threaded support rod (not provided)

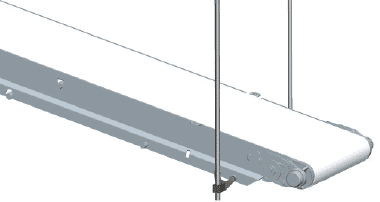

Adjustable Angle Ceiling Supports
  • All components are Stainless Steel brushed to #4 finish
  • Includes a pair of mounting brackets and hardware for support on both sides of conveyor
  • Compatible with 12 mm (0.5 in) threaded support rod (not provided)
  • Mounting block pivots to support incline mounts from 0° to 60°









Floor Anchors



Type 1 Sanitary Floor Anchor Kit
  • 10 mm (.375 in) x 40 mm (1.57 in) drop in
  • Stainless Steel
  • Anchor is flush with floor upon removal of bolt
  • Two (2) per anchor kit





Type 2 Sanitary Floor Anchor Kit
  • 10 mm (.375 in) x 70 mm (2.75 in)
  • Stainless Steel
  • Threaded anchor bolt protrudes above floor after installation
  • Two (2) per anchor kit
