1100 Miniature Belt Conveyors

  • 1100 Series Miniature Belt Conveyor
    Dorner's 1100 Series miniature conveyor has the lowest profile in North America.
  • 1100 Series Conveyor
    The conveyor is designed for small or lightweight part handling.
  • 1100-Series-Conveyors Nose Bar
    The optional 5/16" nose bar on one or both ends allow for small part transfers.
  • 1100-Series-Conveyors Load Speeds
    The 1100 Series can support loads up to 15 lbs and speeds up to 70 ft/min.
  • 1100 Series End Conveyor Part
    1100 Series conveyors are available in end drive (side and bottom mounted) and mid drive options.

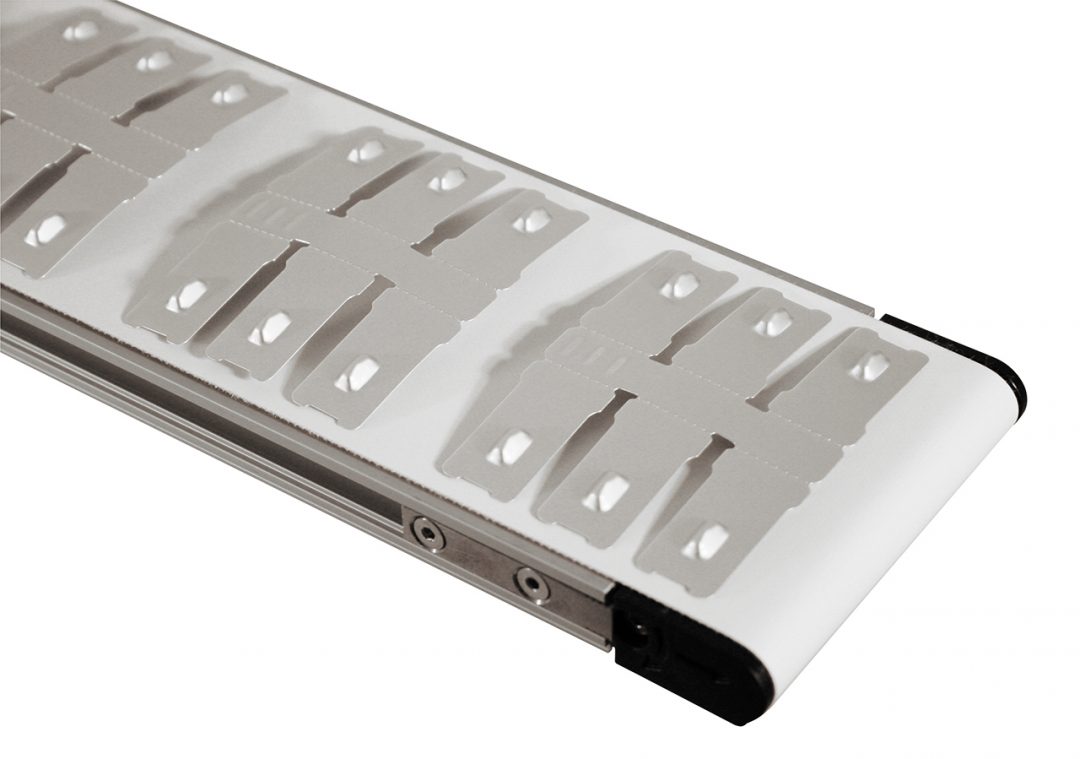

  • 1100-Series-Conveyors Miniature Frame
    The 1100 Series can easily fit inside machinery and equipment.
  • 1100-Series-Conveyors Side Transfers
    The 1100 Series flush frame allows for side transfers.
Contact Us
Conveyor specialists are ready to help you find the right solution

Benefits of 1X Series

Sizes & Measurements
  • Flat Belt End Drive, or Flat Belt Mid Drive
  • End Drive – 1″ (25 mm) Diameter Drive Pulley
  • Mid Drive – 1.25″ (32 mm) Diameter Center Drive Pulley
  • 0.625″ (16 mm) Diameter Idler Pulleys
  • 0.31″ (8 mm) Diameter nose bar option for one or both ends
  • Belt Widths: 1.75″ (44 mm), 3.75″ (95 mm), 6″ (152 mm), 8″ (203 mm), & 10″ (254 mm)
  • Conveyor Lengths: 10.63″ (270 mm) to 72″(1829 mm) in 1/8″ (3 mm) increments
  • Loads up to 15 lbs (6.8 kg)
  • Belt Speeds up to 80 fpm (21 m/min)
General Applications
  • Small or light weight product movement
  • Medical
  • Pharmaceutical
  • Life sciences
  • Pinch Drive Design
    • Low belt tension virtually eliminates belt stretch providing maintenance free operation
    • Belt is tracked continuously with unique frame design, cams, and pinch drive for consistent performance
    • Drive is reversible, providing maximum flexibility in applications
    • Two halve design with one fastener per side allows cover to pivot for fast belt change
    • T-Slot for flexible mounting
    • Spring tensions belt around drive pulley for 180° of wrap
  • Low Profile Height – Compact miniature design frees up valuable machine or worker space
  • Small Roller Diameter – Optimal size for the handling of small parts and transfer of small parts
  • Clean Room Certified – Class 100 certified for use in medical and pharmaceutical clean room applications
  • T-Slot – Drop in T-bar for ease and flexibility in mounting automation components or accessories
  • Backlit Capability – Backlit conveyor with an LED light is ideal for inspection and quality control
