iDrive

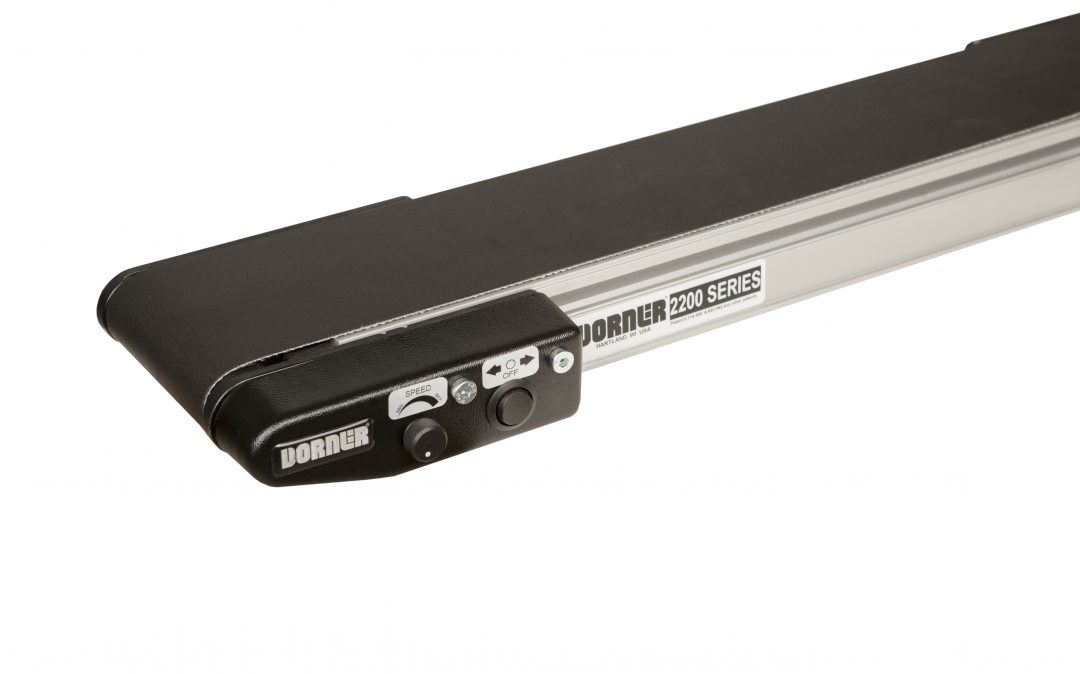

  • 2200 Series iDrive

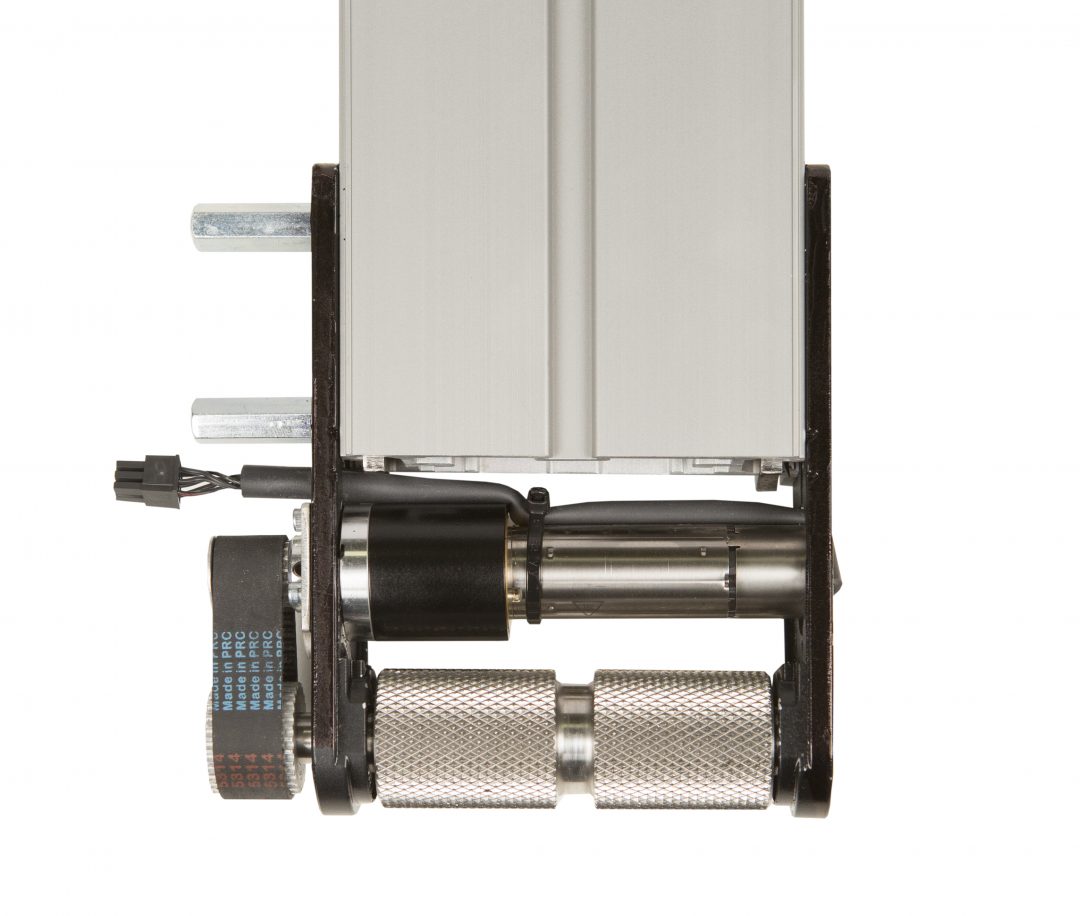

  • 2200 Series iDrive Motor and Gearbox
    Internal gearbox and brushless DC motor
Contact Us
Conveyor specialists are ready to help you find the right solution

Specifications of 2200 Series iDrive:

  • Belt Widths: 2″ (51 mm) to 24″ (610 mm)
  • Conveyor Lengths: 18″ (457 mm) to 8′ (2,438 mm)
  • V-groove bedplate with guided belt provides belt tracking, even under demanding side load applications
  • Cam tracking standard on Non V-Guided belt conveyors
  • Indexing Capable – Up to 30 indexes per minute
iDrive Controls
  • Integrated Forward/Off/Reverse switch and variable speed pot
  • Flying leads remote start/stop with integrated direction switch and speed pot.
  • Power supply available
Load Capacity (non-accumulated, distributed load):
  • 1.7 to 17 ft/min – Up to 25 lbs (11.3 kg)
  • 3 to 24 ft/min – Up to 25 lbs (11.3 kg)
  • 5 to 50 ft/min – Up to 25 lbs (11.3 kg)
  • 7 to 70 ft/min – Up to 12 lbs (5.4 kg)
Belt Speeds: Variable Speed, (4) Speed Options
  • 1.7 to 17 ft/min (0.5 to 5 m/min)
  • 3 to 24 ft/min (0.9 to 7 m/min)
  • 5 to 50 ft/min (1.5 to 15 m/min)
  • 7 to 70 ft/min (2 to 21 m/min)

Accessories

Accessories

Manuals & Literature

Looking for Service Manuals? Search for Service Manuals by part number or product type HERE.

Engineering Manuals Pages File Size
2200 Series Engineering Manual 108 14.67 MB
2200 Series Engineering Manual (Europe Version) 78 8.5 MB
 Literature Pages File Size
 2200 Series Conveyors Brochure  6  1.12 MB
 Magnetic Conveyors  1 1.36 MB
Backlit Conveyors  1  6.19 MB
Lift Gate Conveyors 1 496 KB
Common Drive Conveyors 1 588 KB
 Vacuum Belt Conveyors  1 1.42 MB
 Flexible Packaging Brochure  5  3 MB
 Standard Specials Specification Sheets  Pages File Size
 2200 Series Magnetic Conveyor   8  720 KB
 2200 Series Vacuum Conveyor   11  674 KB
 2200 Series Back Lit Conveyor  7  596 KB
  2200 Series Common Drive Package  8  589 KB
 Lift Gate Base 6 684 KB
