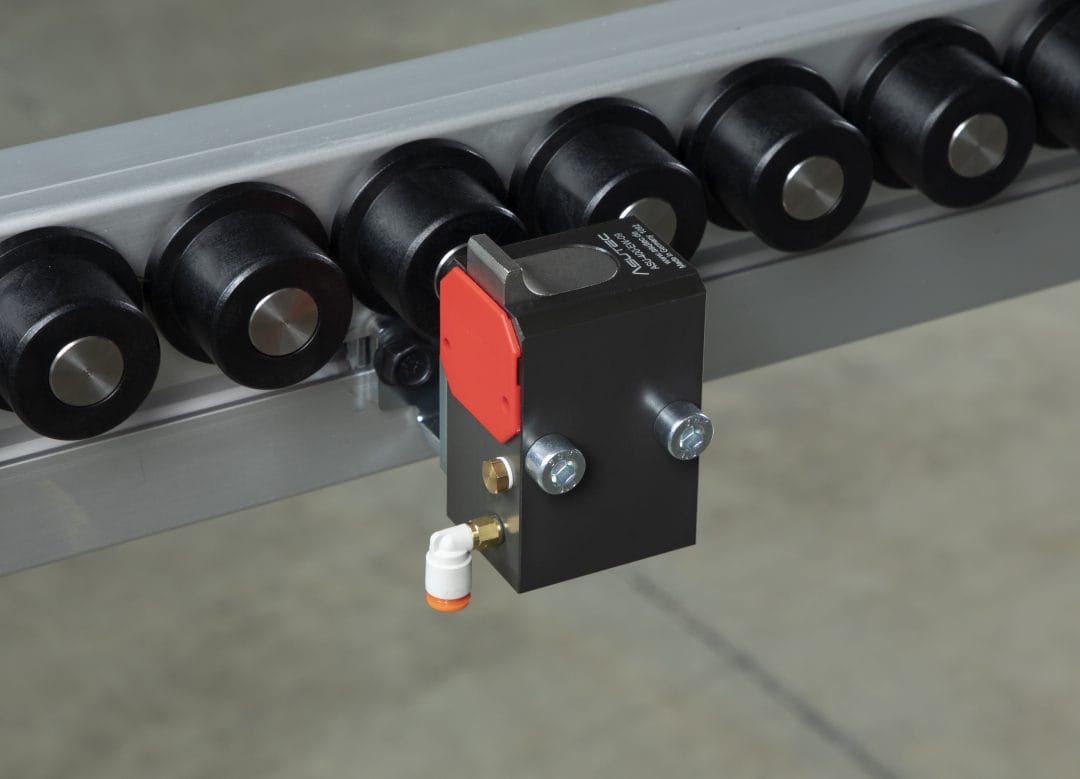

Standard Load Pallet Stop – Non-cushioned

Non-cushioned pallet stop for traffic control. Stops one or more pallets at the specified location on the conveyor. Air pressure disengages the stop allowing pallets to pass until the pressure is released. A spring return re-engages the pallet stop.



Specifications

  • Maximum Load: 68 kg (150 lbs) accumulated
  • Typically used for pallets 400 mm wide and narrower
  • Pneumatically activated, spring return
  • Mounts on the inside of the conveyor rail
  • Airline can be mounted on the front or back of the stop
  • Includes: stop, mounting hardware, and fittings for 6.3 mm (1/4 in) push in air line
  • Optional vertical or side mounted sensor bracket.

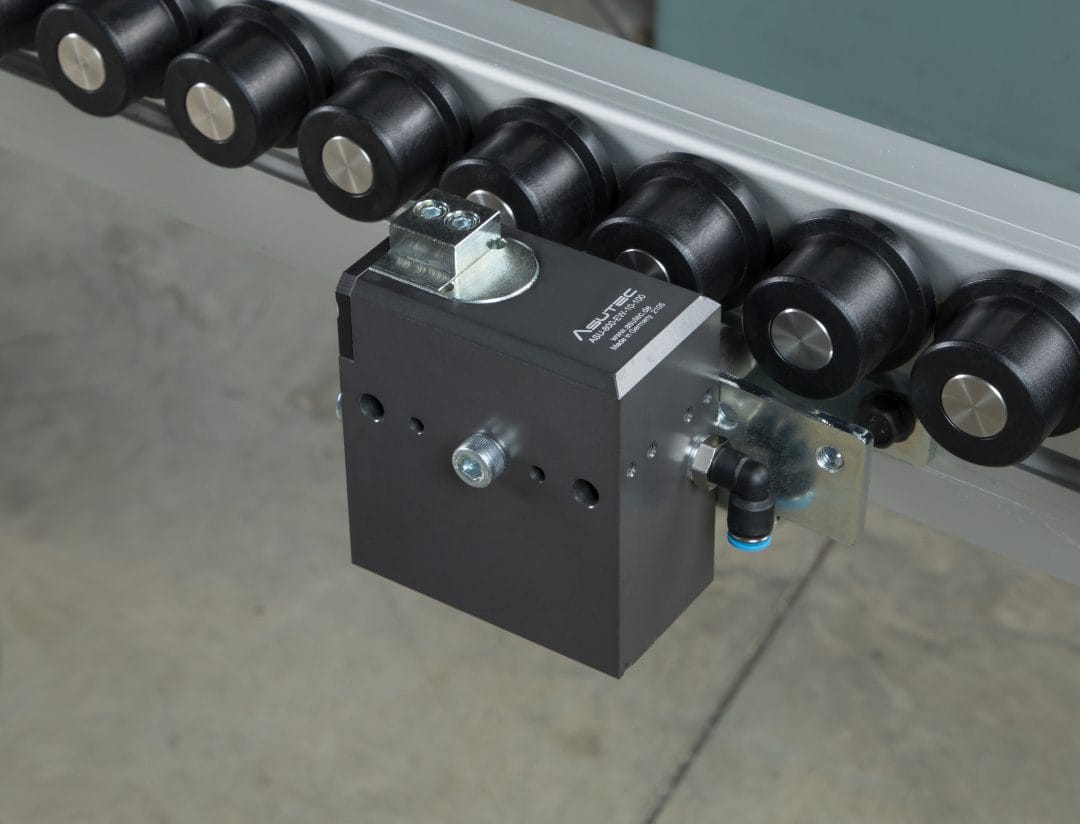

Heavy Load Pallet Stop – Non-cushioned

Non-cushioned pallet stop for traffic control. Stops one or more pallets at the specified location on the conveyor. Air pressure disengages the stop allowing pallets to pass until the pressure is released. A spring return re-engages the pallet stop.



Specifications

  • Maximum Load: 250 kg (550 lbs) accumulated
  • Recommended for pallets wider than 400 mm
  • Pneumatically activated, spring return
  • Mounts on the inside of the conveyor rail
  • Airline can be mounted on the front or back of the stop
  • Includes: stop, mounting hardware, and fittings for 6.3 mm (1/4 in) push in air line
  • Optional vertical or side mounted sensor bracket

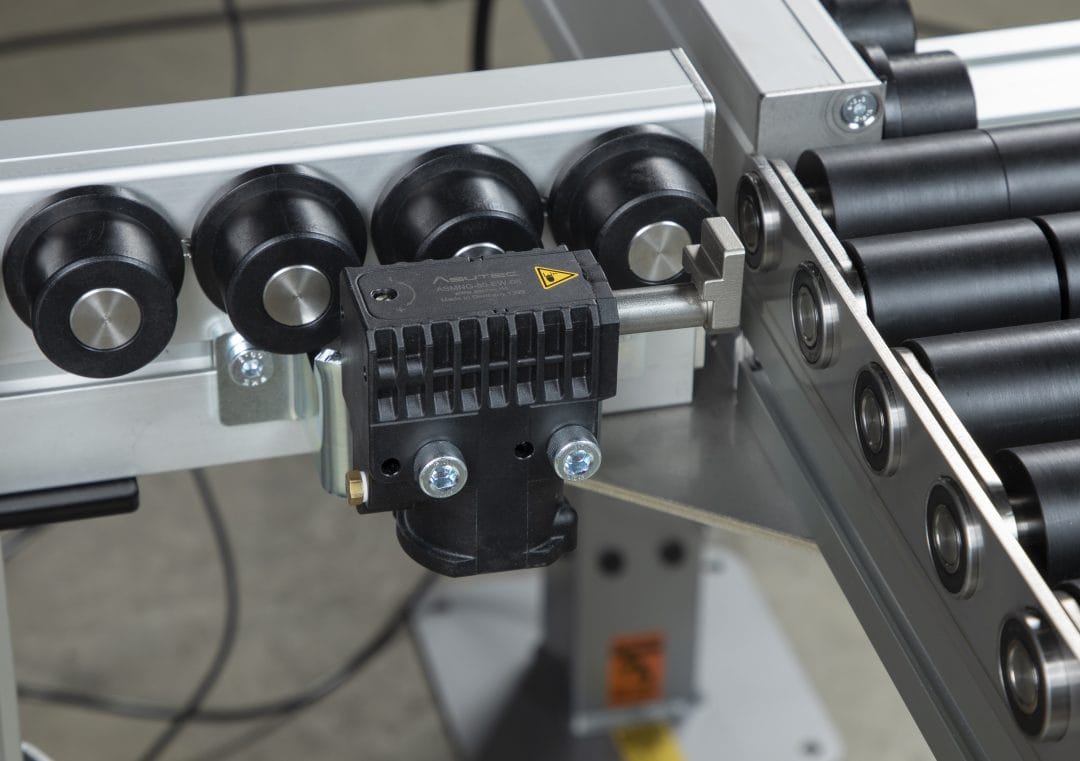

Standard Load Pallet Stop – Cushioned

Cushioned pallet stop for traffic control. Stops one or more pallets at the specified location on the conveyor. Cushioned deceleration of the first pallet into the stopped location, guarding against vibration of sensitive payloads. Accumulated pallets are not cushioned. Air pressure disengages the stop allowing pallets to pass until the pressure is released. A spring return re-engages the pallet stop and resets the cushion.



Specifications

  • Maximum Load: 55 kg (120 lbs) accumulated
  • Typically used for pallet 400 mm wide and narrower
  • Pneumatically activated, spring return
  • Stops the pallet on the leading or trailing edge
  • Mounts on the inside of the conveyor rail
  • Airline can be mounted on the front or back of the stop
  • Includes: stop, mounting hardware, and fittings for 6.3 mm (1/4 in) push in air line
  • Optional vertical or side mounted sensor bracket

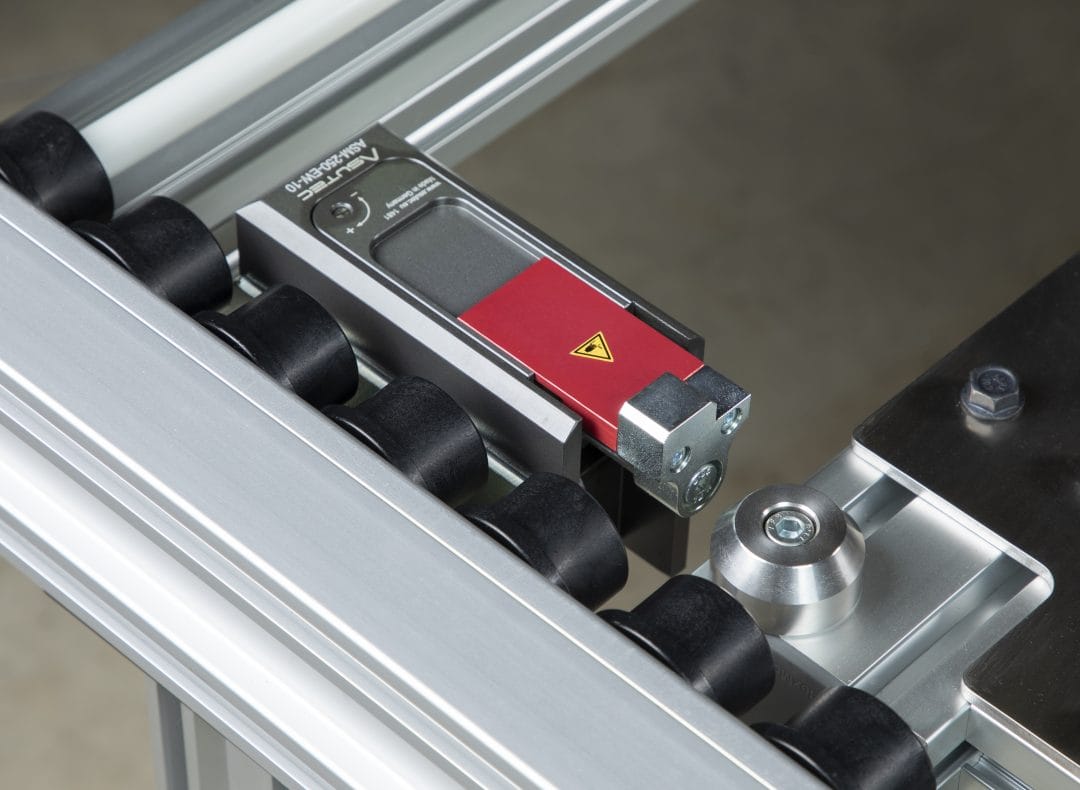

Heavy Load Pallet Stop – Non-cushioned

Cushioned pallet stop for traffic control. Stops one or more pallets at the specified location on the conveyor. Cushioned deceleration of the first pallet into the stopped location, guarding against vibration of sensitive payloads. Accumulated pallets are not cushioned. Air pressure disengages the stop allowing pallets to pass until the pressure is released. A spring return re-engages the pallet stop and resets the cushion.



Specifications

  • Maximum Load: 114 kg (250 lbs) accumulated
  • Recommended for pallets wider than 400 mm
  • Pneumatically activated, spring return
  • Stops the pallet on the leading or trailing edge
  • Mounts on the inside of the conveyor rail
  • Airline can be mounted on the front or back of the stop
  • Includes: stop, mounting hardware, and fittings for 6.3 mm (1/4 in) push in air line
  • Optional vertical or side mounted sensor bracket
