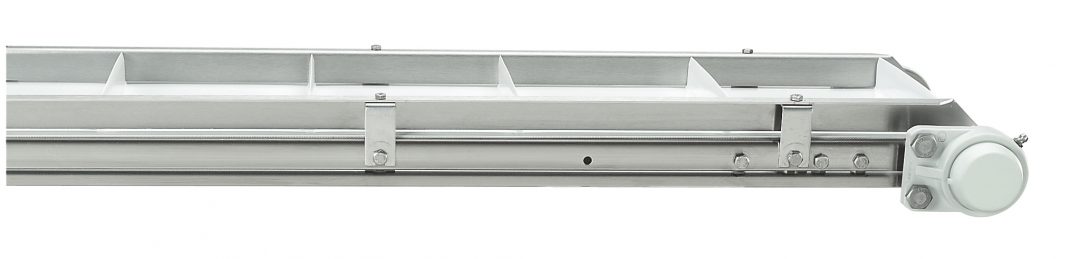

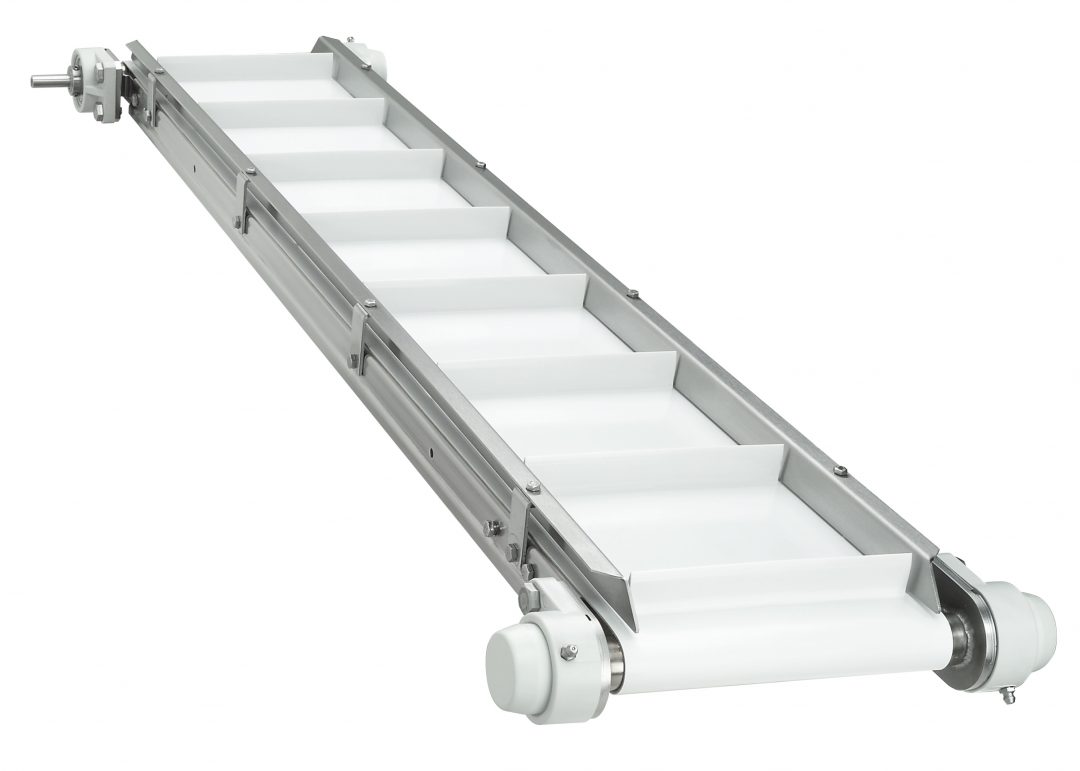

Cleated Belt

Contact Us
Conveyor specialists are ready to help you find the right solution
Dtools Original CAD/Configurator CONFIGURE A CONVEYOR

Benefits of 7300 AquaGard Cleated Belt:

  • Quick five-minute belt change for increased uptime
  • Rack and pinion for fast single point belt tensioning
  • 304 stainless steel frame, head and tail plates are polished to a #4 finish
  • V-Groove frame with guided belt ensures accurate tracking
  • Wedge-Lok system for impact protection
  • Streamlined design fits where other conveyors do not
  • Low-profile, single piece frame for quick, easy cleaning
  • Quick-clamp rail for easy mounting of bolt-on accessories
  • A variety of FDA approved belting to meet application needs
  • Rated for high pressure wash down

Specifications:

  • Loads up to 60 lbs
  • Belt speeds up to 264 ft/min
  • Belt widths: 1.75″ to 18″
  • Conveyor lengths: 2′ to 18′
  • 11 gauge stainless steel roll formed frame
  • Complete stainless steel construction



  • 1.25: diameter drive pulley turns approximately 4.25″ of belt per revolution
  • 1.5″ bottom of frame to top of belt
  • Self-aligning stainless steel sealed bearings with FDA approved solid lubricant
  • Washdown rated gearmotors and controls
