Guides

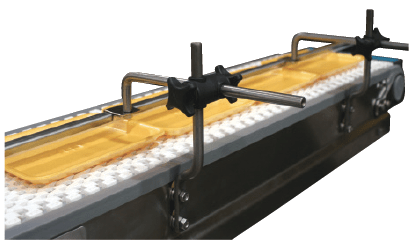

Overhead Guide
- For part hold down or cover closing
- Adjustable height and position across width
- Round nose UHMW guide with stainless steel backing
- Lengths: 914 mm (36 in) to 3048 mm (1200 in) in 25 mm (1 in) increments
- Horizontal Brackets provided for every 609 mm (24 in) of length
- Available in standard adjustable and tool-less adjustable mount styles
- All brackets and fasteners are stainless steel
- Does not include vertical mounting post. To be used with profiles 13 through 18 or upper guide assembly
Transfers

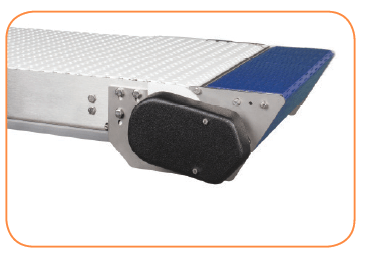

Powered Transfer
- 13 mm (0.5 in) diameter roller for small part transfers
- Maintains speed through the transfer
- 8 mm micropitch chain series driven off of tail module
- Conveyor widths 152 mm (6 in) to 914 mm (36 in)
- Belt speeds up to 53 m/min (175 ft/min)
- Available as an option on Modular Belt Curve
- Can be located on drive and/or idler tail
Roller Transfer
- 150 mm (6 in) wide to 914 mm (35 in) wide
- Includes 1 mm (0.43 in) diameter rollers mounted in transfer plate
- Adjustable mounting to fine tune small parts transfer
- All brackets and fasteners are Stainless Steel
Mounting & Hardware

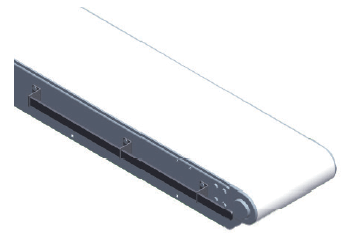

Accessory Mounting Bars
- Used for mounting adjustable devices such as photo eyes and sensors
- Can be mounted directly to frame or in combination with guide brackets
- Includes 1248 mm (48 in) long bar with 3 mounting brackets
- Compatible with Value Guide blocks (VG-021-02)
- All brackets and fasteners are stainless steel
Photo Eye and Reflector Mounting Brackets
- Mounts standard 18 mm (0.71 in) barrel or nose mount photo eyes or sensors
- Attach bracket or accessories without frame modifications
- Adjustable along the length of the conveyor
- Adjustable height and angle positioning
- All adjustment screws located outside the food zone
- (3) Photo Eye Types
- Thru beam includes (2) mounts
- Reflector includes (1) photo eye mount and (1) reflector mound
(reflector included)
- Accessory Mounting Bar Style: (3) Mount versions:
- To fixed post (does not include mounting post)
- To fixed post (includes mounting post)
- To accessory mounting bar (includes Value Guide Block
and adjustable post)

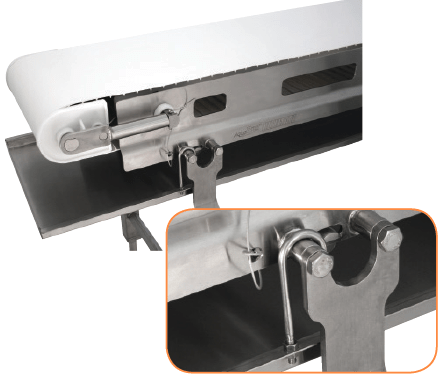

Drip Pans
Specifications
- Widths: 152 mm (6 in) to 1524 mm (60 in) available in 50 mm (2 in) increments
- Lengths: 610 mm (24 in) to 25375 mm (999 in) available in 25 mm (1 in) increments maximum section lengths of 2997 mm (118 in)
- Tool-less hook design for fast removal
- Provides a 50 mm (2 in) window for clean-out access without removal
- All pans equipped with a 25 mm (1 in) containment lip on all sides
- Contact factory for additional options and ordering
