Straight and Curve Profiles Cleated Belt Profiles
W = selected belt width
Straight and Curve Profiles
Profile 01: Low Side Profile
- Belt is higher than the conveyor frame. This allows side transfer of product or for product to extend beyond the belt edge.

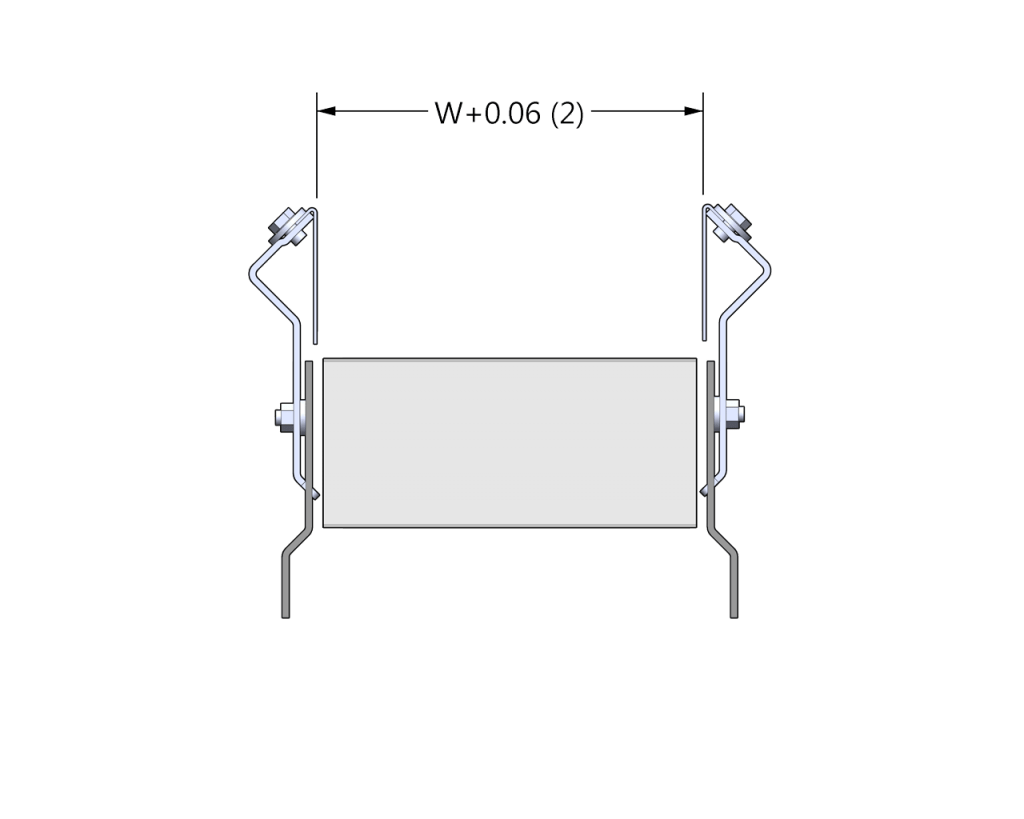

Profile 04: 3″ (76mm) Bolt-On High Side

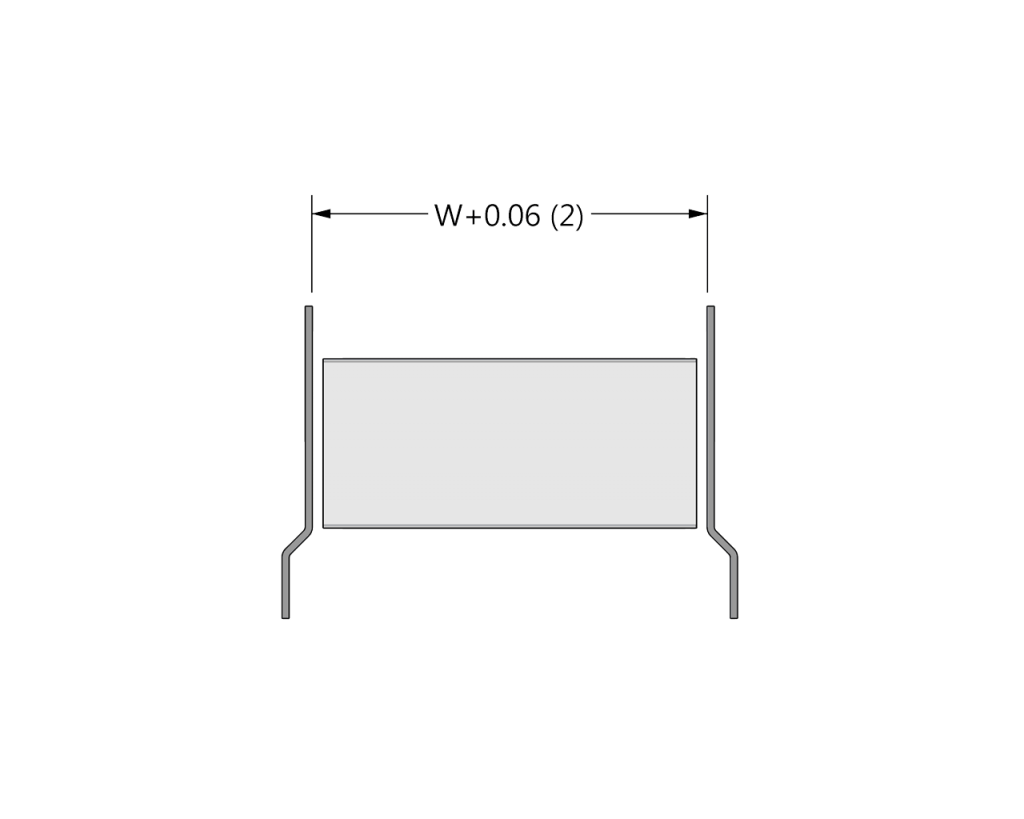

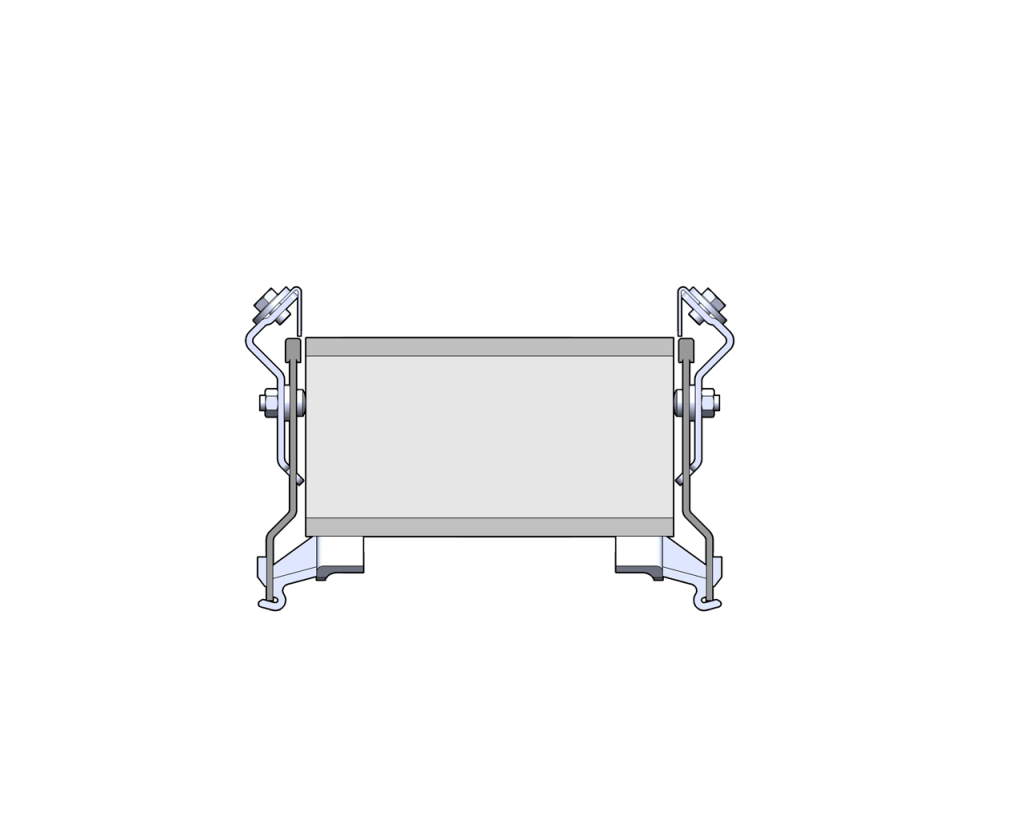

Profile 05: 1″ (25mm) Bolt-On High Side

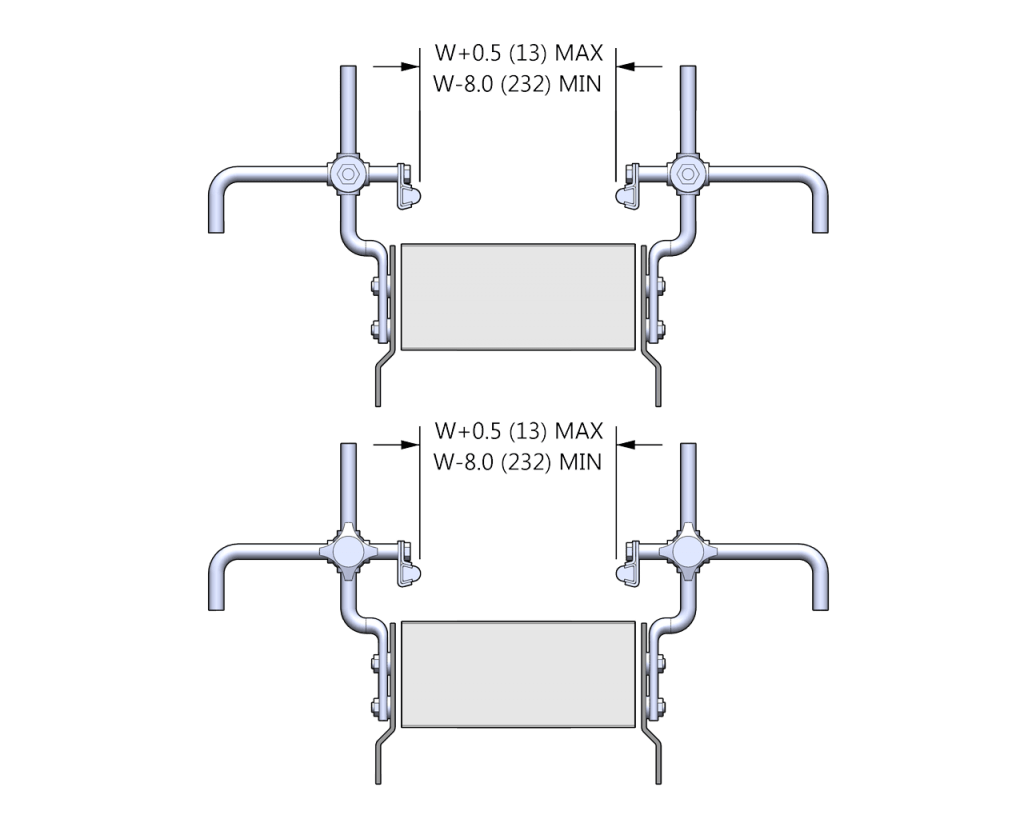

Profile 13 & 14: Fully Adjustable Round Profile Guiding
Both height and width adjustments can be made.

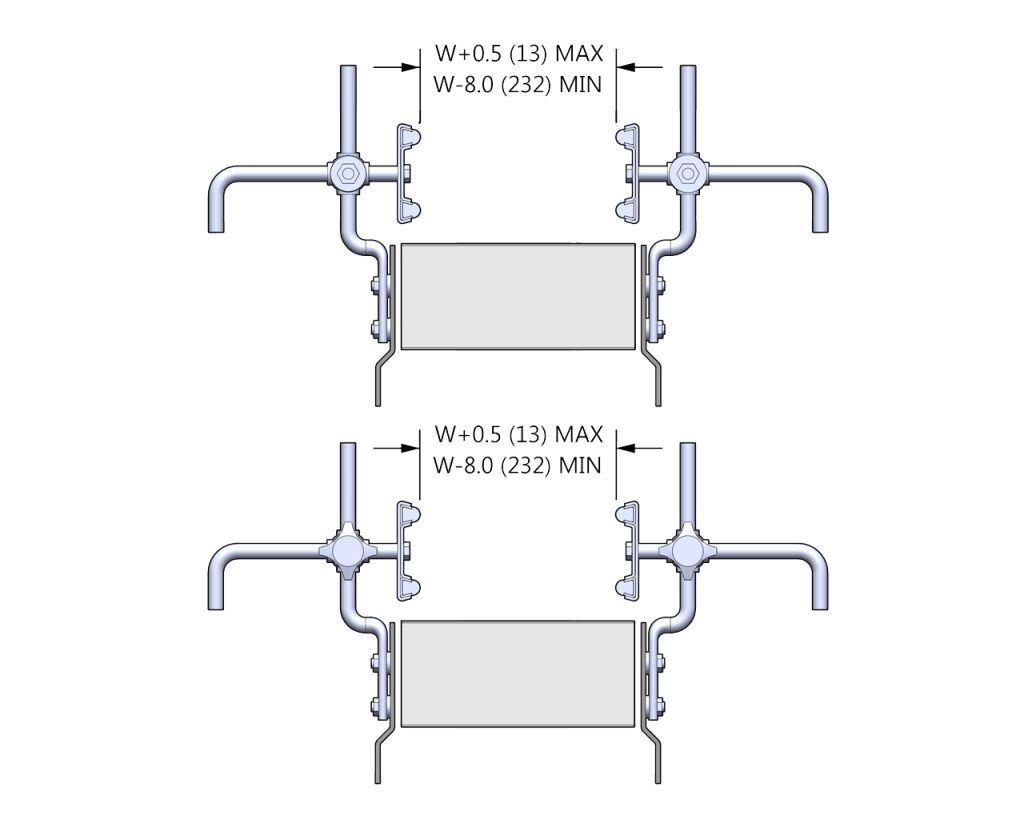

Profile 15 & 16: Fully Adjustable Twin Rail Guiding
Both height and width adjustments can be made.

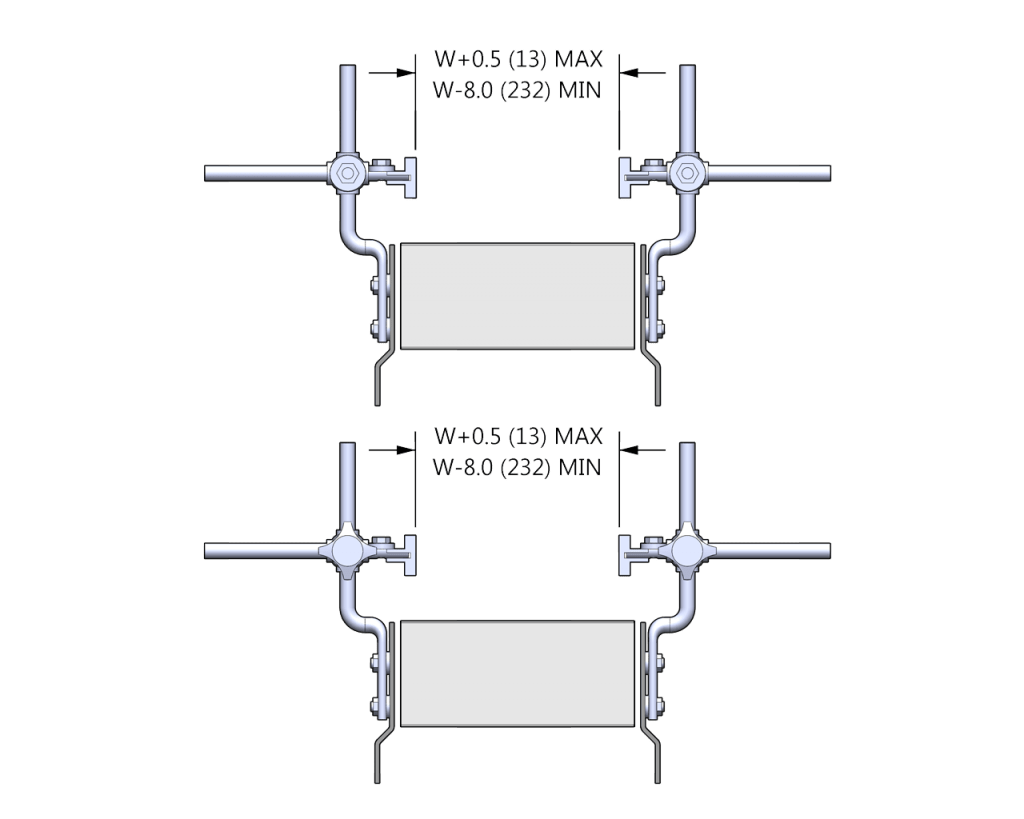

Profile 17 & 18: Fully Adjustable Flat Profile Guiding
Both height and width adjustments can be made.
Cleated Belt Profiles

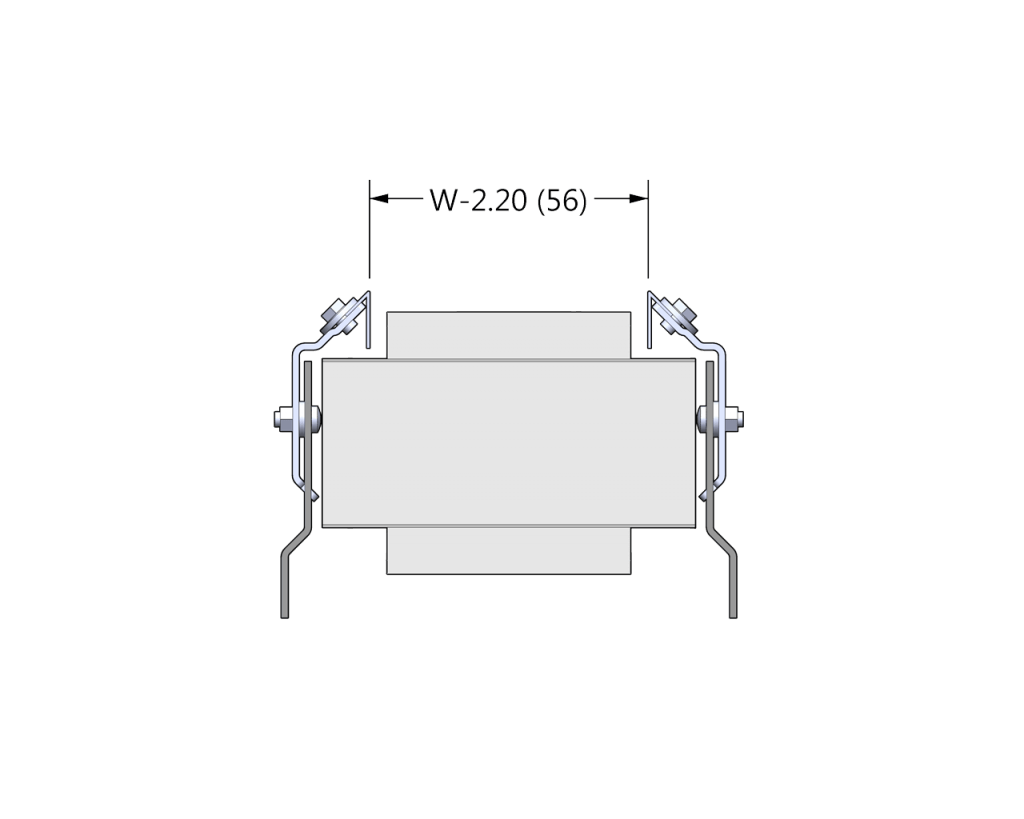

Profile 02: 1″ (25mm) Bolt on Inset High Side

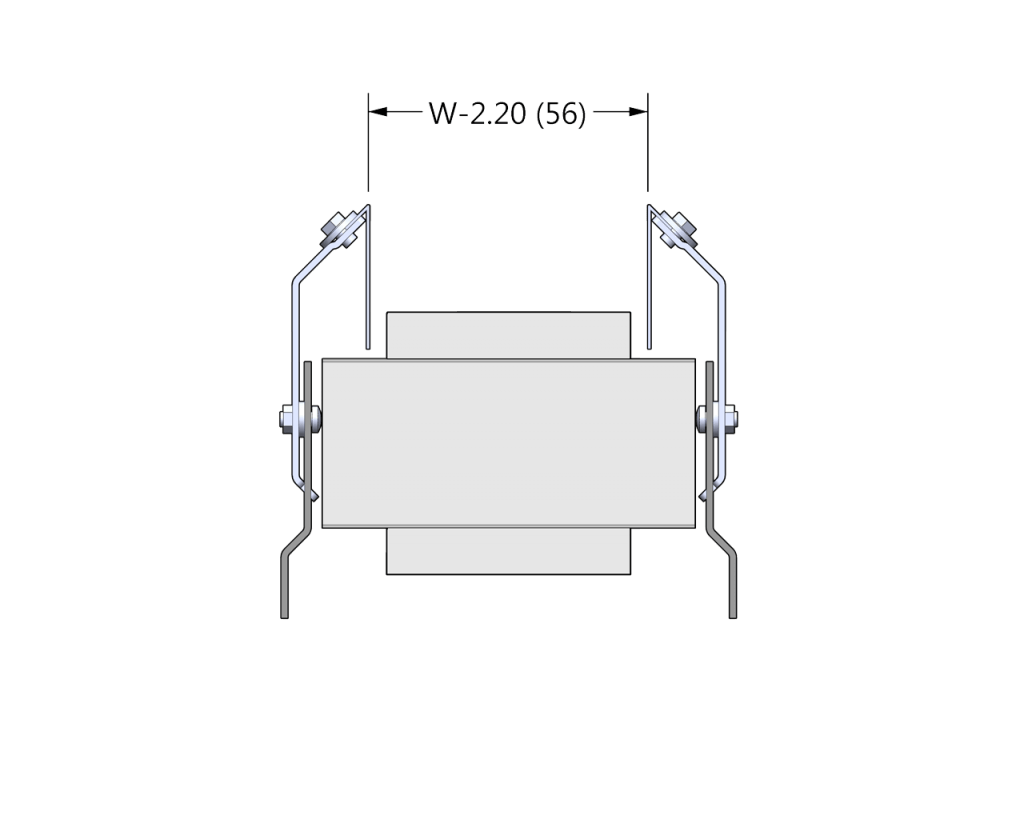

Profile 03: 3″ (76mm) Bolt on Inset High Side
