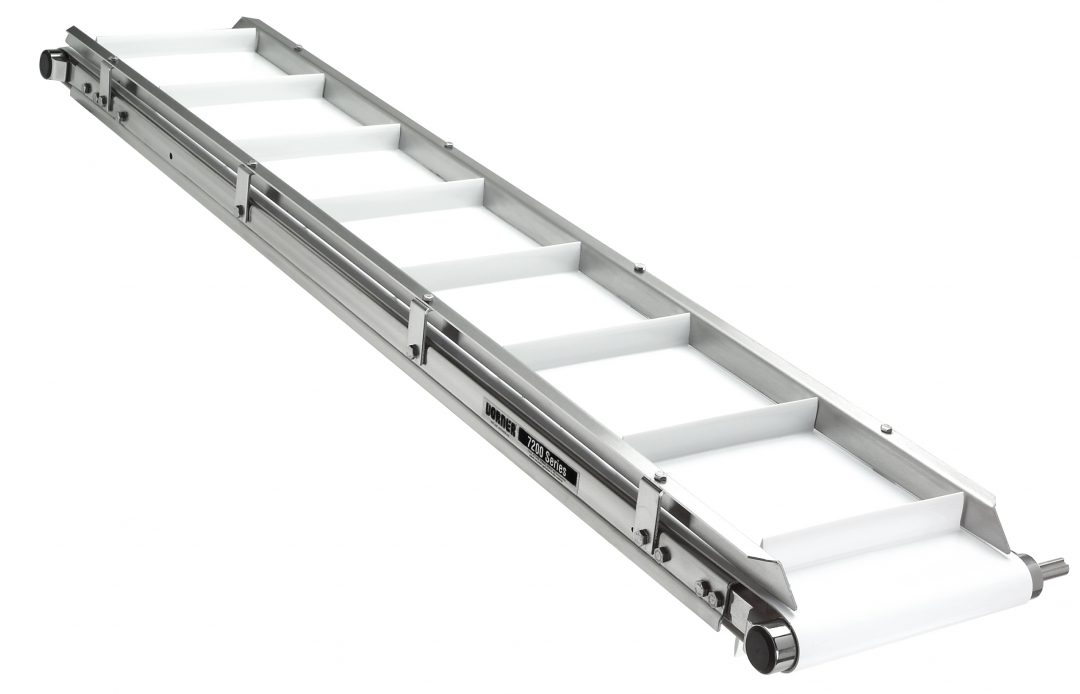

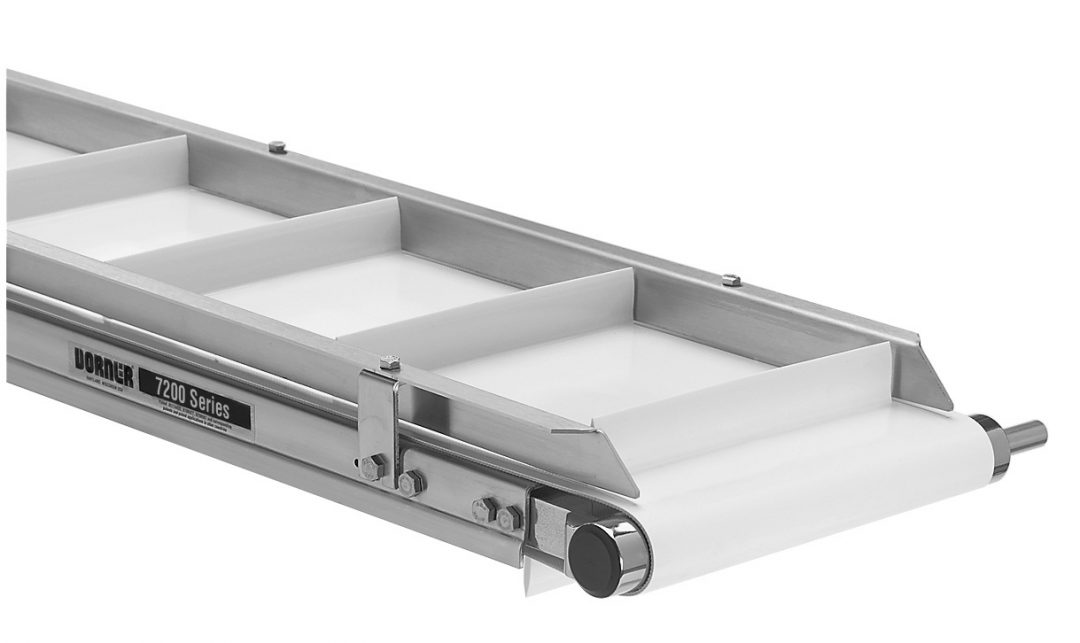

Benefits of 7200 AquaGard Cleated Belt Conveyors
General Specifications
- Loads up to 60 lbs
- Belt speeds up to 264 ft/min
- Belt widths: 1.75″ to 18″
- Conveyor lengths: 2′ to 18′
- 11 gauge stainless steel roll formed frame
- Complete stainless steel construction
- 1.25: diameter drive pulley turns approximately 4.25″ of belt per revolution
- 1.5″ bottom of frame to top of belt
- Self-aligning stainless steel sealed bearings with FDA approved solid lubricant
- Washdown rated gearmotors and controls
Features & Benefits
- Quick five-minute belt change for increased uptime
- Rack and pinion for fast single point belt tensioning
- 304 stainless steel frame, head and tail plates are polished to a #4 finish
- V-Groove frame with guided belt ensures accurate tracking
- Wedge-Lok system for impact protection
- Streamlined design fits where other conveyors do not
- Low-profile, single piece frame for quick, easy cleaning
- Quick-clamp rail for easy mounting of bolt-on accessories
- Optional .25″ thick bottom wiper
- A variety of FDA approved belting to meet application needs
Models
Accessories
Profiles
Belting
Gearmotors
Drive Mounting Packages
Support Stands
Manuals & Literature
Engineering Manuals | Pages | File Size |
Sanitary Overview | 52 | 8.34 MB |
Literature | Pages | File Size |
Sanitary Conveyors Brochure | 6 | 5.97 MB |
AquaGard Conveyors Brochure | 4 | 3 MB |
