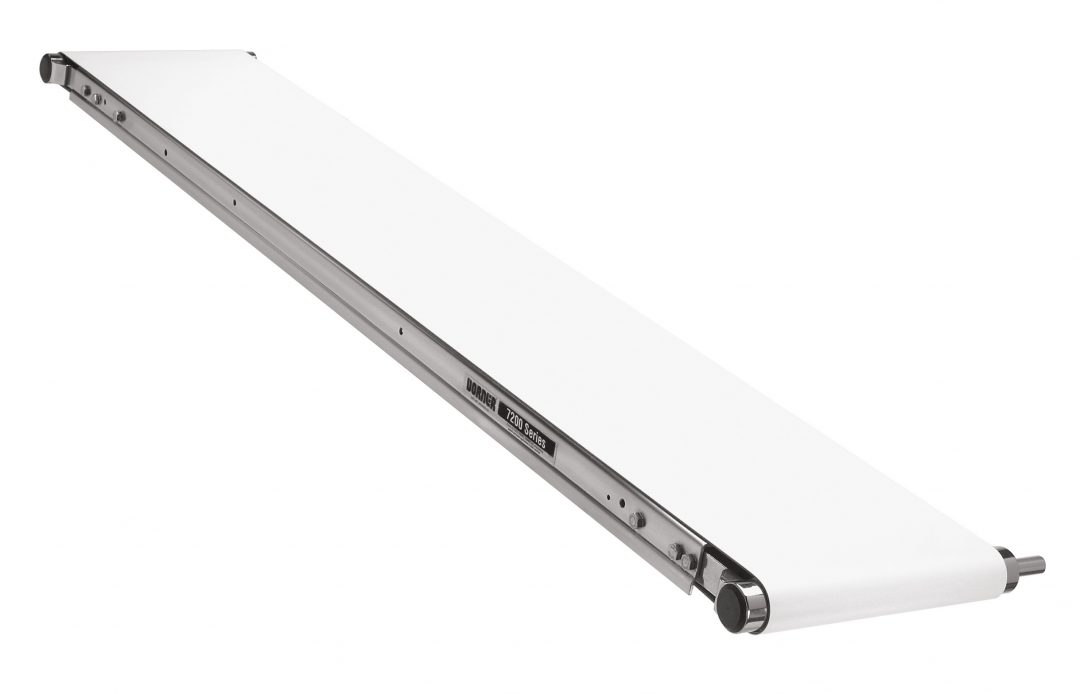

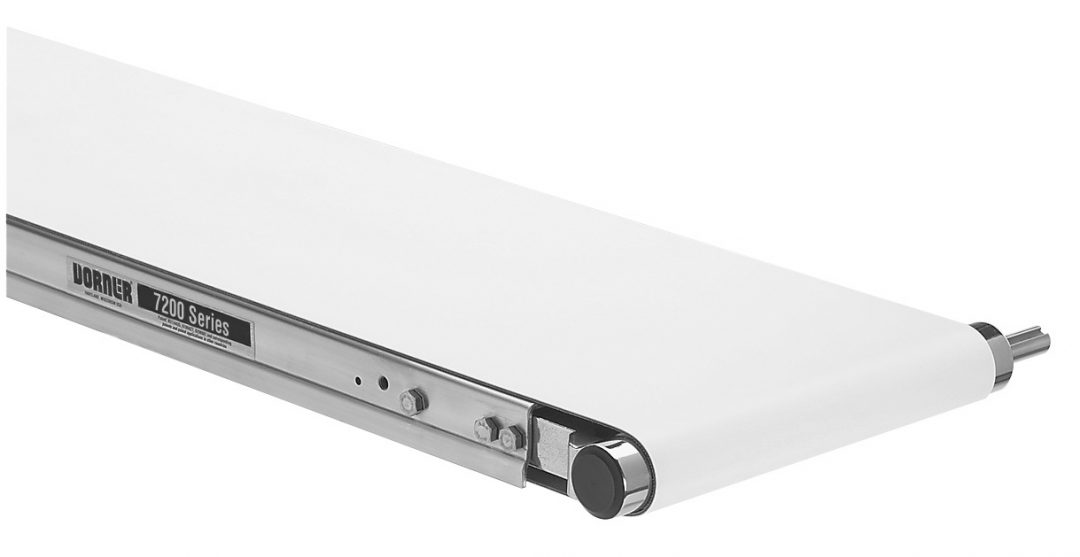

Benefits of 7200 AquaGard End Drive Conveyor:

Specifications

  • Loads up to 60 lbs
  • Belt speeds up to 264 ft/min
  • Belt widths: 1.75″ to 18″
  • Conveyor lengths: 2′ to 18′
  • 11 gauge stainless steel roll formed frame
  • Complete stainless steel construction
  • 1.25: diameter drive pulley turns approximately 4.25″ of belt per revolution

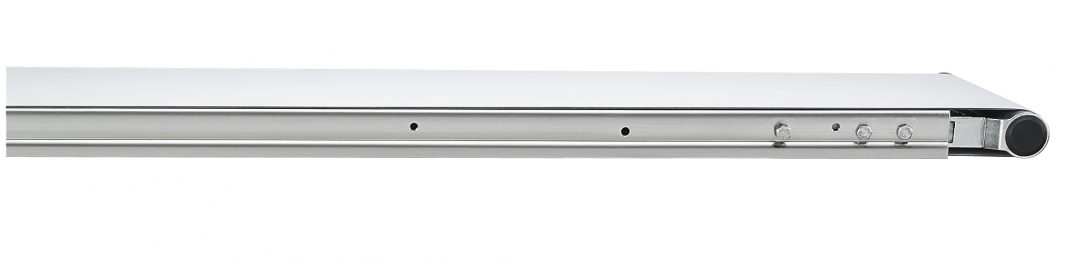

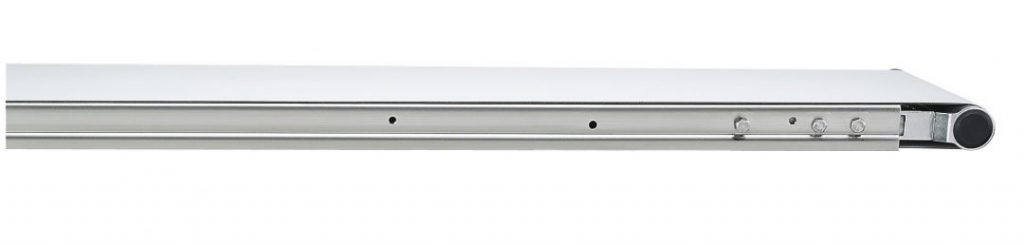

  • 1.5″ bottom of frame to top of belt
  • Self-aligning stainless steel sealed bearings with FDA approved solid lubricant
  • Washdown rated gearmotors and controls
  • CE models available

Features & Benefits

  • Quick five-minute belt change for increased uptime
  • Rack and pinion for fast single point belt tensioning
  • 304 stainless steel frame, head and tail plates are polished to a #4 finish
  • V-Groove frame with guided belt ensures accurate tracking
  • Wedge-Lok system for impact protection
  • Streamlined design fits where other conveyors do not
  • Low-profile, single piece frame for quick, easy cleaning
  • Quick-clamp rail for easy mounting of bolt-on accessories
  • Optional .25″ thick bottom wiper
  • A variety of FDA approved belting to meet application needs

Manuals & Literature

Engineering Manuals Pages File Size
Sanitary Overview 52 8.34 MB
 Literature Pages File Size
 Sanitary Conveyors Brochure  6  5.97 MB
AquaGard Conveyors Brochure 4 3 MB
