Flat Belt Center Drive

Contact Us
Conveyor specialists are ready to help you find the right solution

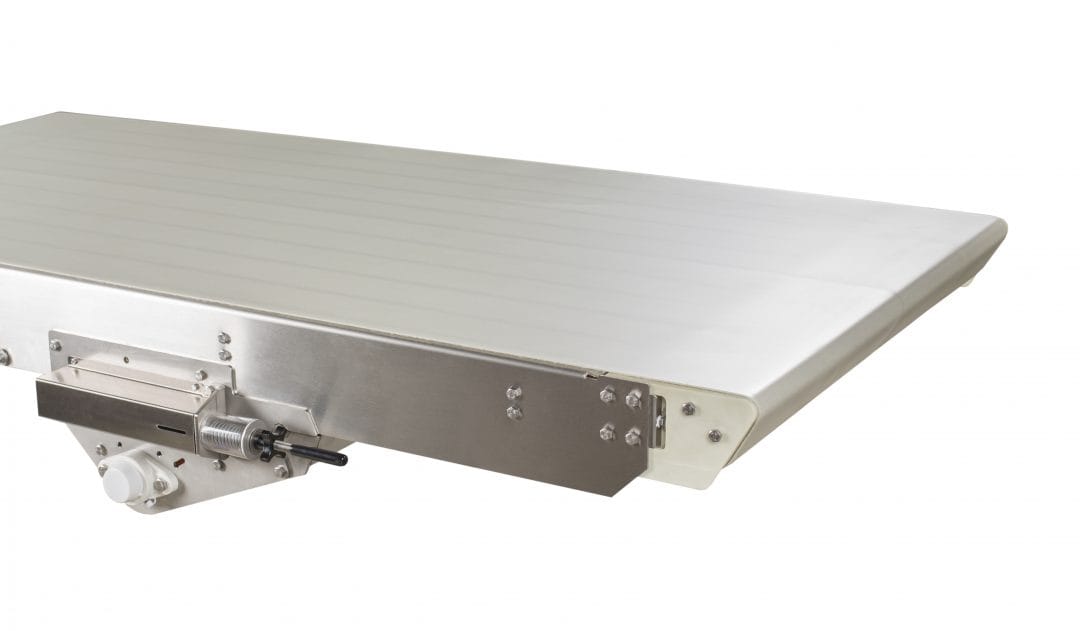

Specifications of AquaGard 7350 Flat Belt Center Drive Conveyor:

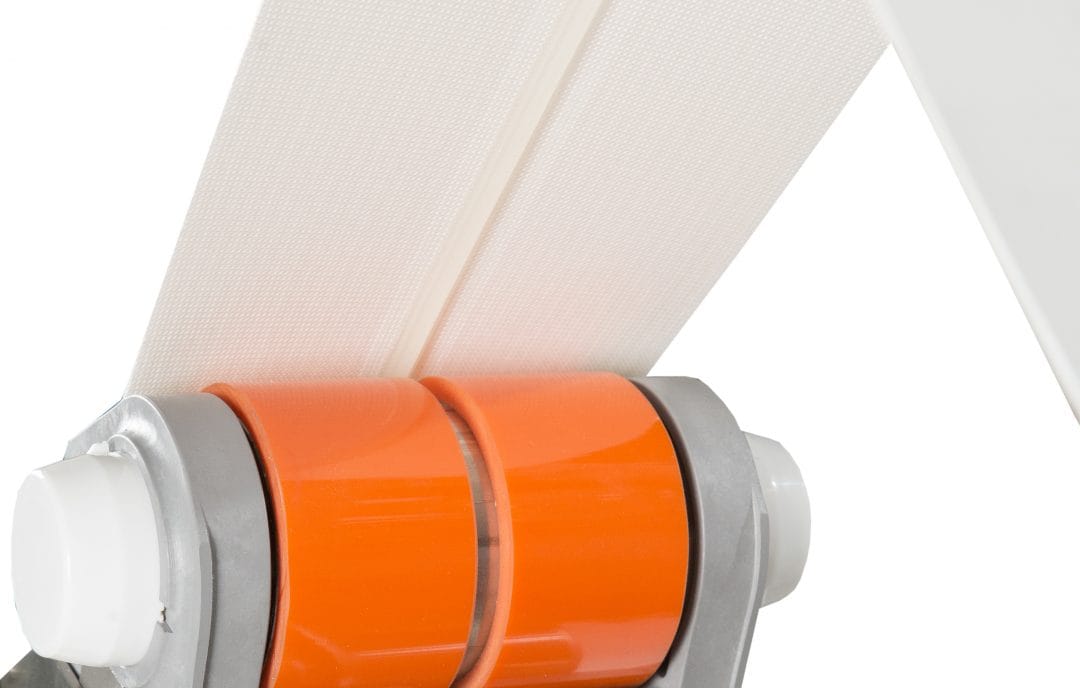

  • Standard V-guided belt tracking

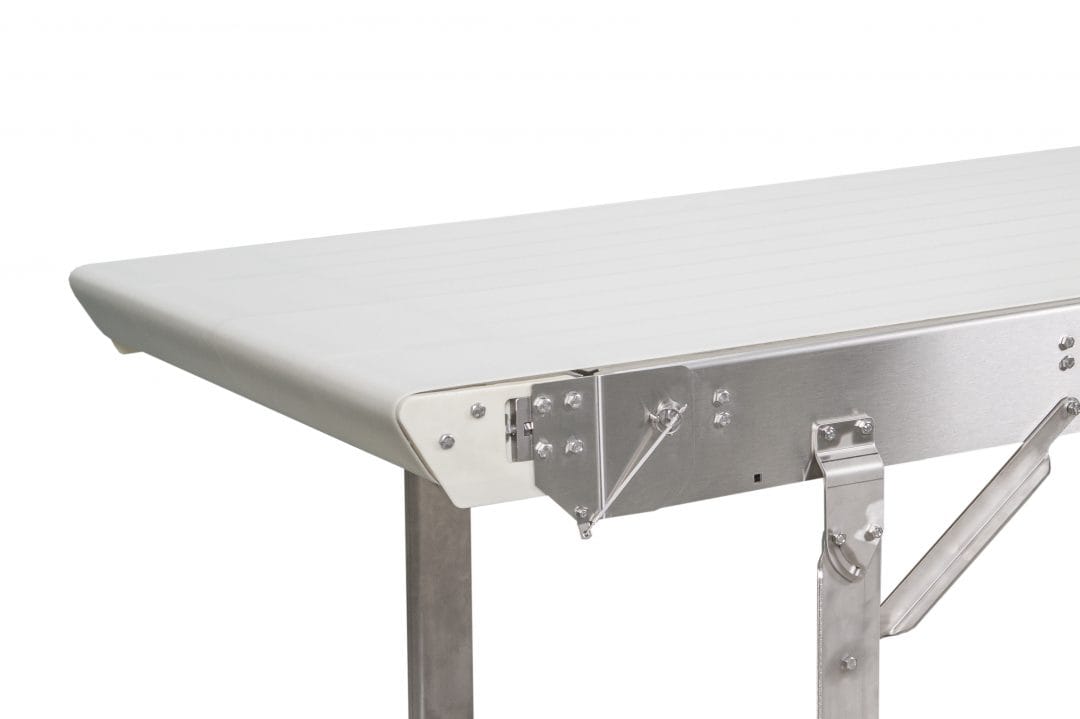

  • Optional 32 mm (1.24 in) nose bar tail
  • Standard tip-up tail
  • Loads up to 227 kg (500 lbs) or 98 kg/sq m (20 lbs/sq ft)*
  • Belt speeds up to 91 m/min (300 ft/min)
  • Belt widths: 152 mm (6 in) to 914 mm (36 in)
  • Conveyor lengths: 1525 mm (60 in) to 25000 mm (984 in)

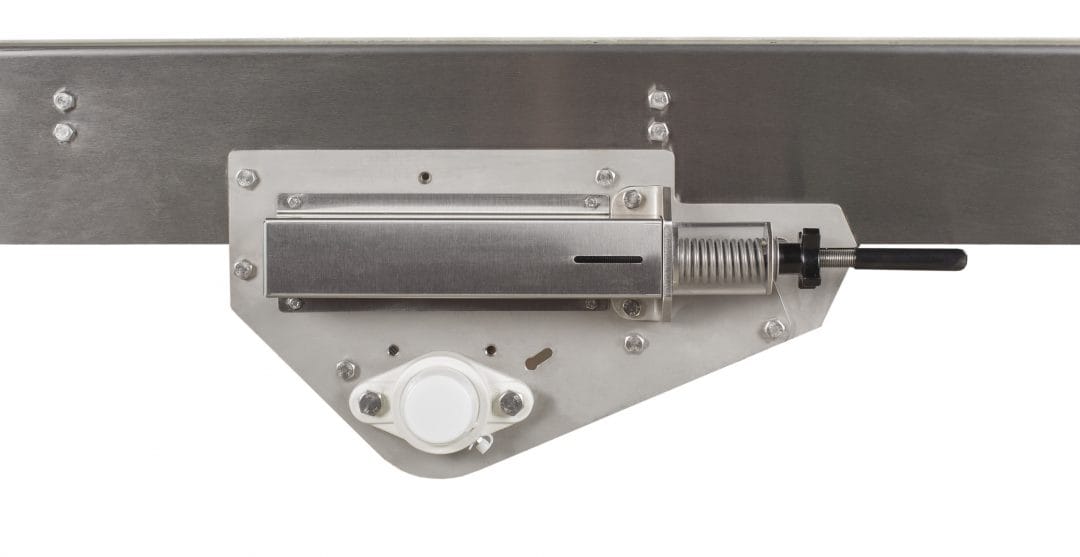

  • Manual or Pneumatic center drive options
  • Bolt-together 304 Stainless Steel Frame
  • Hard chrome coated bearing with FDA H1 food grade grease
  • FDA approved belting and plastic components
  • Open design with minimal horizontal surfaces
  • Suitable for use in wet environments
  • Stainless Steel construction for wipe down and low pressure washdown with non-caustic solutions

Accessories

Guides
Transfers
Mounting & Hardware
Photo Eye Kits
Drip Pans

Manuals & Literature

Looking for Service Manuals? Search for Service Manuals by part number or product type HERE.

Engineering Manuals Pages File Size
AquaGard 7350 Series Manual 76 12.73 MB



Literature Pages File Size
AquaGard Conveyors Brochure 4 3.2 MB
Sanitary Conveyors Brochure 8 8.9 MB
