Straight Modular Flat Belt

Contact Us
Conveyor specialists are ready to help you find the right solution

Features & Benefits of 7350 AquaGard Straight Modular Flat Belt Conveyor:

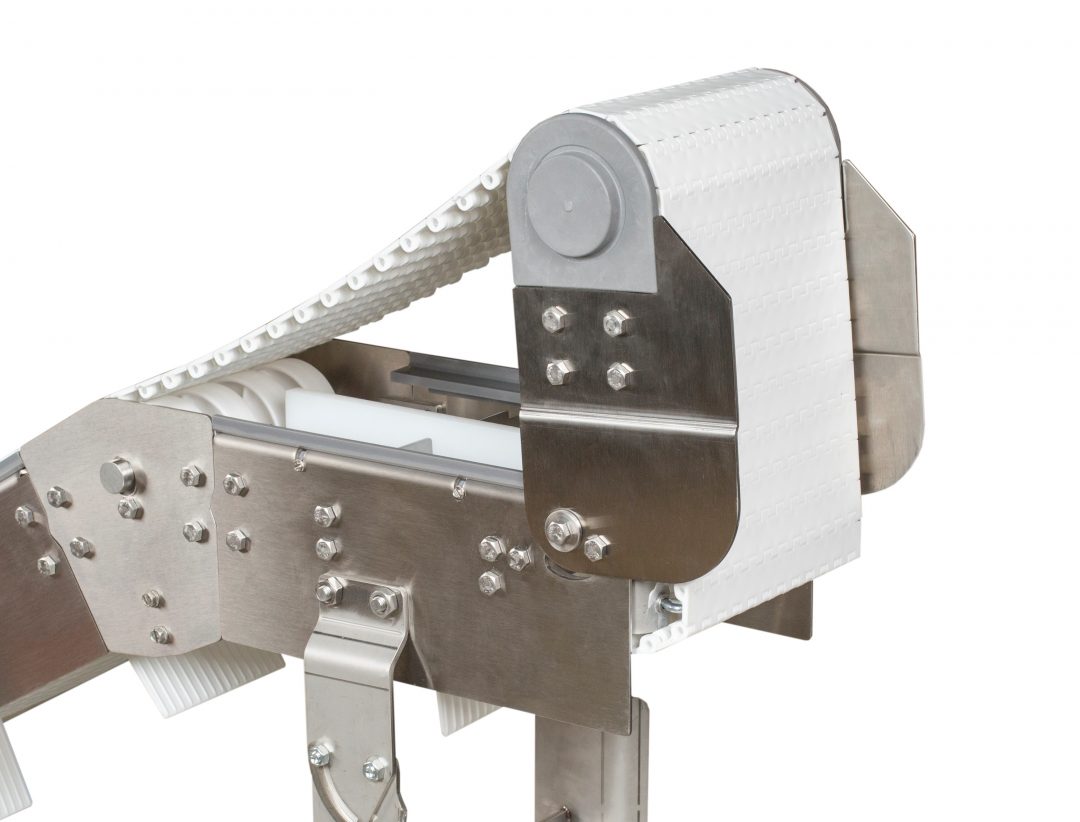

  • Tip-up Tails for access inside conveyor for cleaning and maintenance
  • Safest curve chain in the industry with chain openings less than 4 mm, even in the curves
  • Flat sides allow for flexibility when mounting accessories, interfacing with other equipment or transferring products
  • Minimal horizontal surfaces for easy to clean sanitary surfaces
  • Micropitch powered transfer for end transfer of product as small as 75 mm (3 in) long
  • Side & bottom mount motor package for application flexibility
  • Robust open leg support stands with 7 gauge welded stainless steel

Specifications

  • Loads up to 341 kg (750 lbs) or 98 kg/sq m (20 lbs/sq ft)*
  • Belt speeds up to 78.6 m/min (260 ft/min)
  • Belt widths: 203 mm (8 in) to 914 mm (36 in)
  • Conveyor lengths: 915 mm (36 in) to 25000 mm (984 in)
  • Bolt-together 304 Stainless Steel Frame

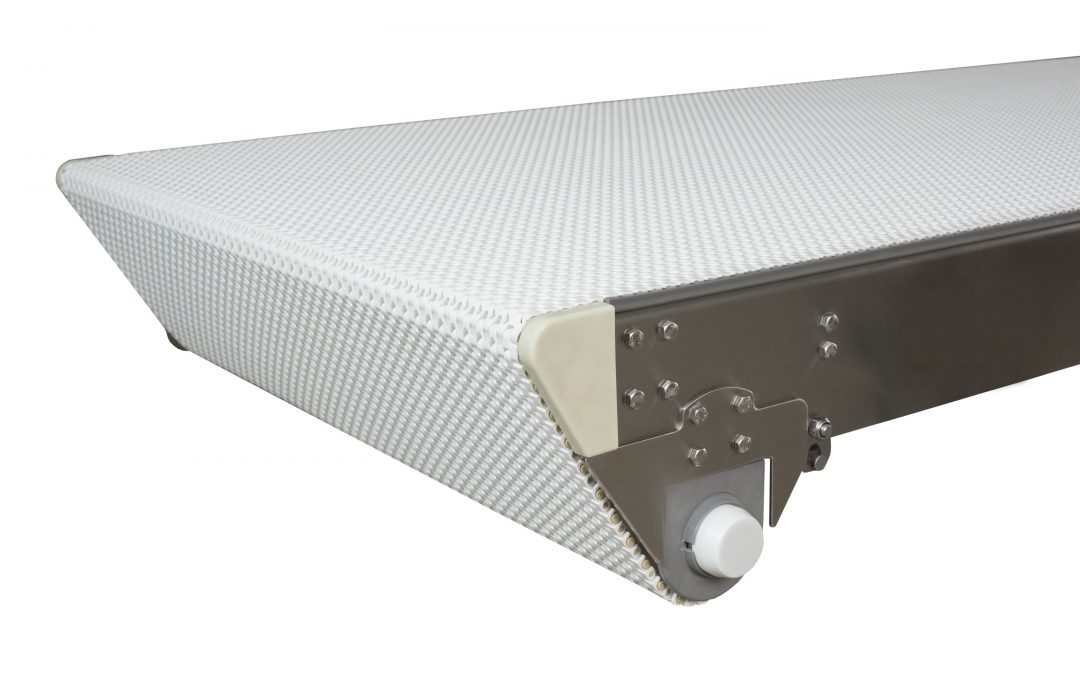

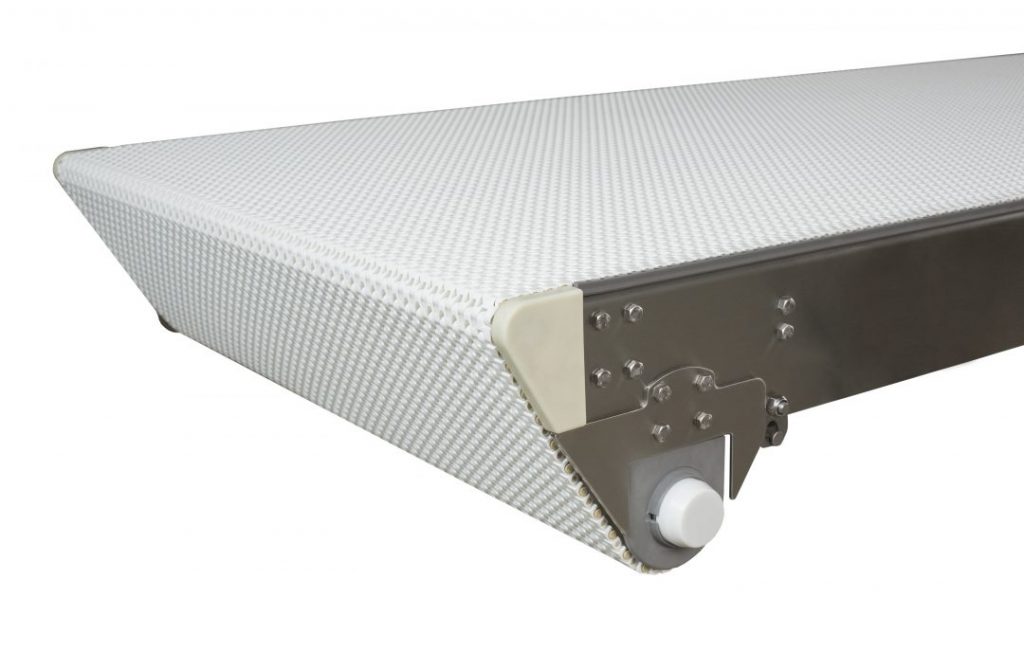

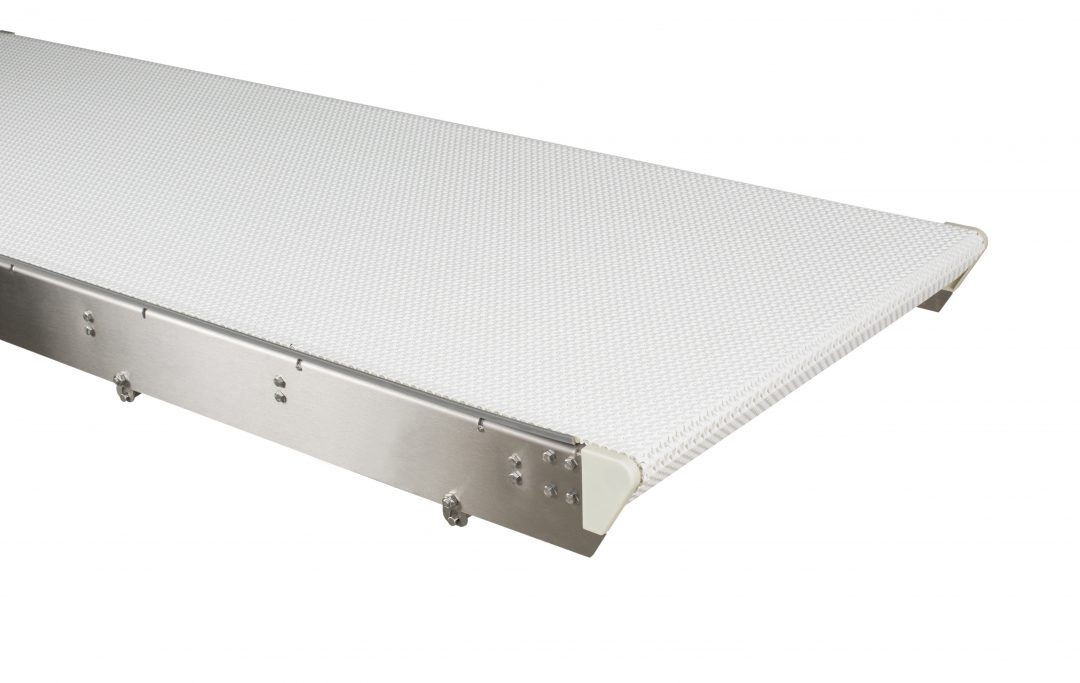

  • Optional nose bar drive and idler tails with 25 mm (1 in) diameter for small parts transfer



  • Hard chrome coated bearing with FDA H1 food grade grease
  • FDA approved belting and plastic components
  • Open design with minimal horizontal surfaces
  • Suitable for use in wet environments
  • Stainless Steel construction for wipe down and low pressure washdown with non-caustic solutions

Accessories

Guides
Transfers
Mounting & Hardware
Photo Eye Kits
Drip Pans
