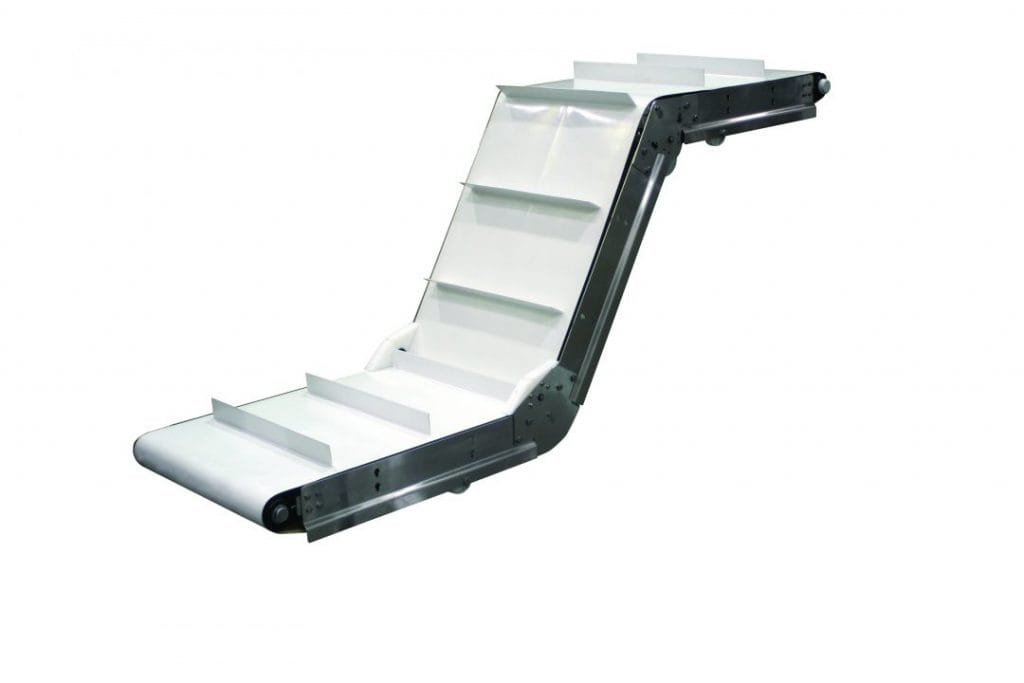

Z-Frame Cleated Belt

  • AquaGard - BISSC Certified
Contact Us
Conveyor specialists are ready to help you find the right solution

Benefits of 7360 AquaGard Z-Frame Cleated Belt Conveyor:

  • Frame is constructed of TIG welded 304 stainless steel and features open design with minimal horizontal surfaces
  • Hard coat anodized aluminum wear strips located in welded cross members for durable belt support
  • Mount controls and accessories fast with no drilling required includes adjustable guiding, photo eyes, low voltage wires, controls, and air tubing
  • Flexible guiding packages for a variety of applications including fully adjustable single and twin rail, and high side
  • Spindle has groove for V-guided belt and optimum performance
  • Integrate jack-screw system in tails for belt take up and easy tracking adjustments
  • Conveyor is suitable for wipe-down and occasional pressurized liquid spray cleaning up to 100 psi max

Specifications

  • Loads up to 500 lbs (227 kg)
  • Belt speeds up to 300 ft/min maximum (91 m/min)
  • Belt widths: 6” (152 mm) to 24” (610 mm)
  • Total lengths up to 40’ (12,192 mm)
  • 30° to 60° fixed angle modules available in 5° increments
  • Wearstrip material is hard coat anodized aluminum

  • One revolution of the drive pulley moves the belt approximately 11”
  • TIG welded 304 Stainless Steel Frame
  • Hard Chrome Coated Bearing with FDA H1 Food Grade Grease
  • FDA approved belting and plastic components



Accessories

Guides
Transfers
Mounting & Hardware
Photo Eye Kits
Drip Pans
Infeed Chute
Angled Hopper
