Curved Flat

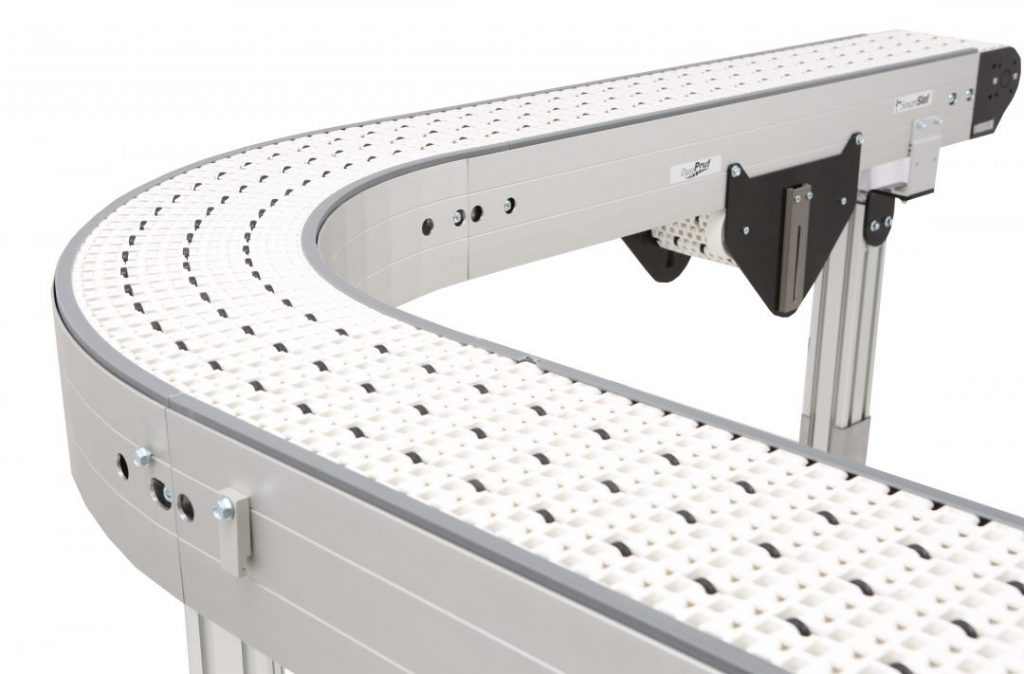

  • 3200 Series Modular Belt Curve
  • 3200 Series Modular Belt Curve
Contact Us
Conveyor specialists are ready to help you find the right solution

Benefits of 3200 Series Curved Modular Flat Belt Conveyors:

General Specifications:
  • Loads up to 500 lbs (227 kg)
  • Belt speeds up to 400 ft/min (122 m/min)
  • Belt widths: 6″ (152 mm) to 36″ (914 mm)
  • Conveyor lengths: 36″ (914 mm) to 999″ (25,375 mm)
  • Curves available in 45°, 90°, and 180° degree angles
  • UHMW wear strip belt support
  • One revolution of the drive pulley moves the belt approximately 12″
  • Rigid, 5.6″ (142 mm) high, anodized aluminum frame
  • Optional two (2) SmartSlot® mounting locations for ¼-20 or M6-1.0 fasteners
  • Weighted Take-up eliminates catenary sag and and reduces pinch points
Optional Powered Transfer

Specifications

  • Powered transfer for small part inline transfer applications
  • 8 mm micro pitch chain slave driven off of tail module
  • Can be located on drive tail, idler tail or both
  • Transfer parts as small as 3″ diameter
  • Belt speeds up to 250 ft/min
  • Belt widths up to 36″ wide



Manuals & Literature

Looking for Service Manuals? Search for Service Manuals by part number or product type HERE.

Engineering Manuals Pages File Size
3200 Series Engineering Manual 112 11.68 MB
Literature Pages File Size
3200 Series Brochure 6 1.72 MB
