Common Drive

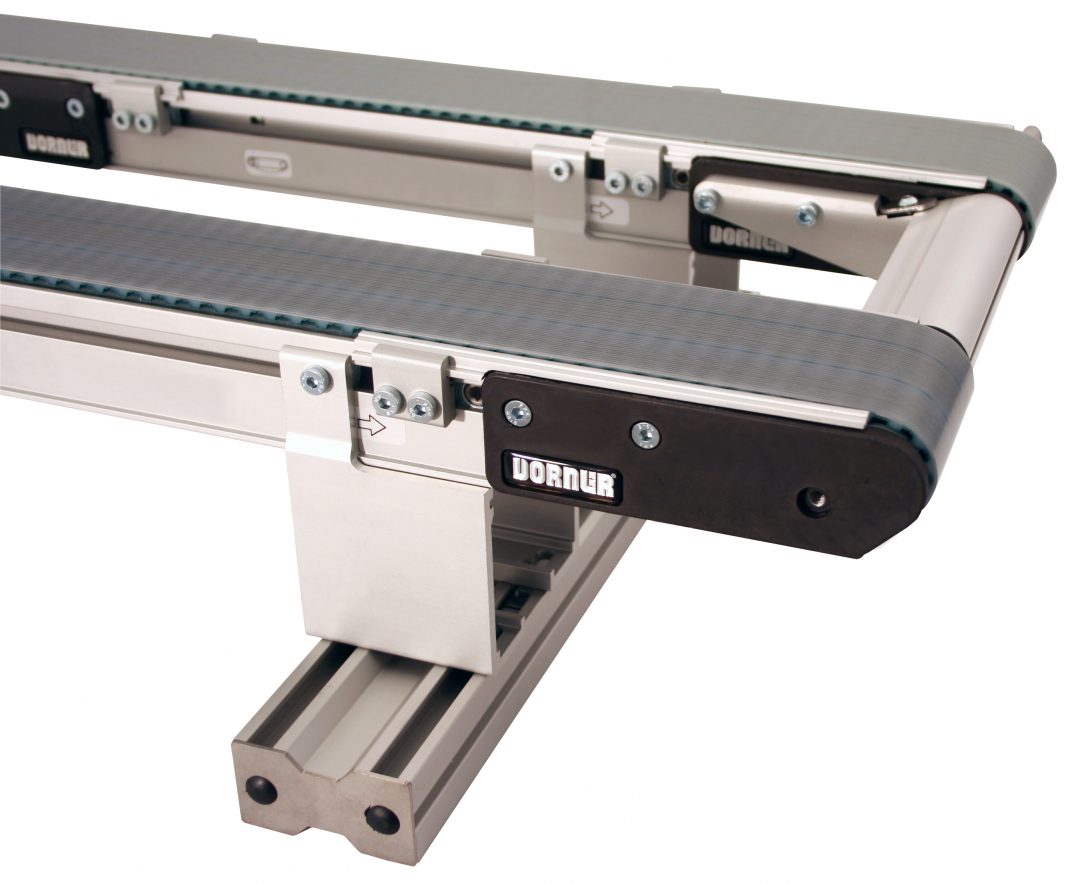

  • 2200 Precision Move Common Drive
Contact Us
Conveyor specialists are ready to help you find the right solution

Benefits of 2200 Series Precision Common Drive

Features:

  • Parts can be wider than conveyor
  • Conveyors can be different widths & lengths

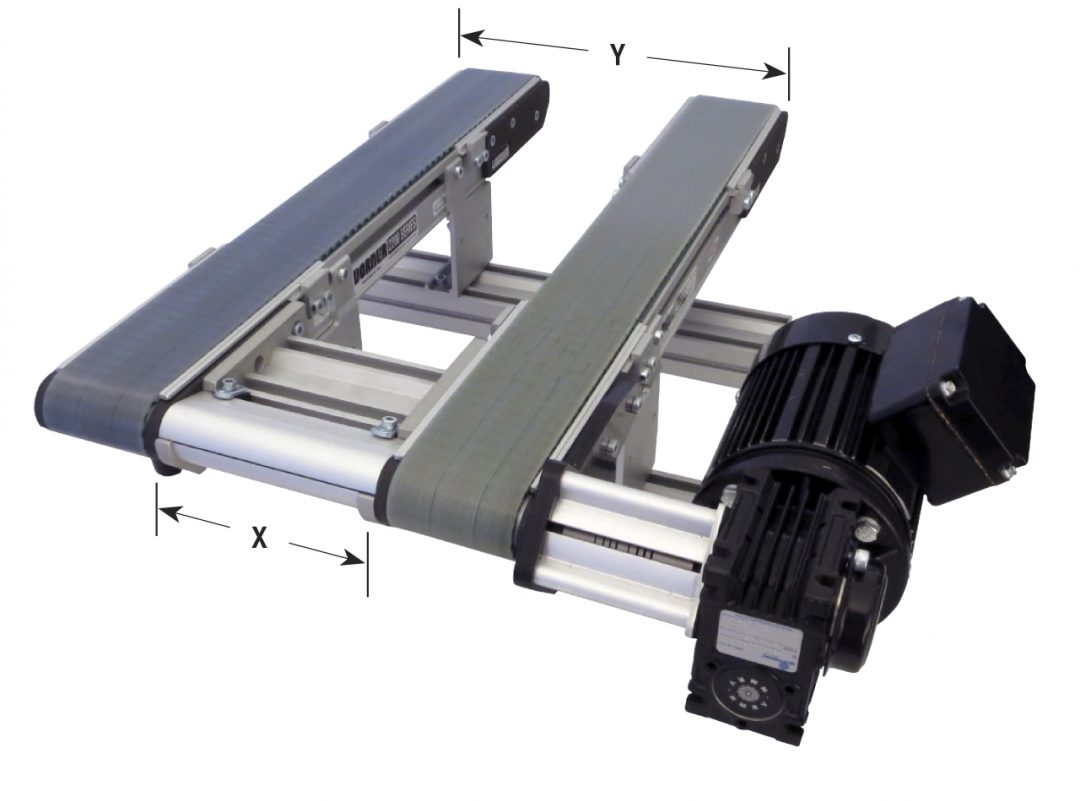

  • Minimum width (x) = 2.70” (69 mm)
  • Maximum width (y) = 36” (914 mm) belt to belt
  • Maximum number of conveyors = 3
  • Maximum total torque = 100 in-lbs
  • Keyless coupling allows belt synchronization between conveyors
  • Includes shafts, couplings and guards
  • Conveyor tie kits ordered separately
  • Requires stub output shafts between conveyors
Benefits:
  • Keeps parts from skewing
  • Save money by using less drives

Accessories

Accessories

Manuals & Literature

Looking for Service Manuals? Search for Service Manuals by part number or product type HERE.

Engineering Manuals Pages File Size
 2200 Series Engineering Manual 108 14.67 MB
Literature Pages File Size
Flexible Packaging Brochure 6  1.12 MB
2200 Series Conveyors Brochure 5 3 MB
Standard Specials Specification Sheet Pages File Size
2200 Series Common Drive Package 6  645 MB
